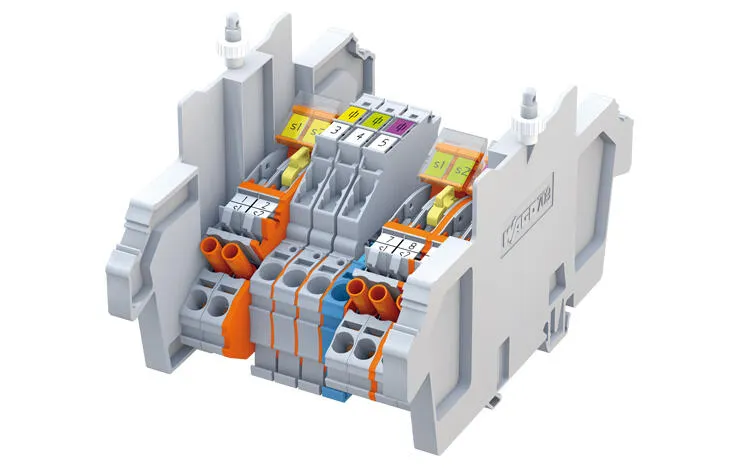

Wago 847-1006/000-2000
WAGO measure rail LPW 847-1006/000-2000
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
WAGO measure rail LPW 847-1006/000-2000
Specification
Electrical data - Ratings per Current Circuit
| Ratings per | IEC/EN 60664-1 |
|---|---|
| Nominal voltage (III/3) | 500 V |
| Rated impulse withstand voltage (III / 3) | 6 kV |
| Rated current | 30 A |
| Legend (ratings) | (III / 3) ≙ Overvoltage category III / Pollution degree 3 |
Electrical data - Ratings per Voltage Circuit
| Ratings per | IEC/EN 60664-1 |
|---|---|
| Ratings (note) | Disconnect terminal blocks with item numbers 2007-8xxx are located in the voltage circuit. |
| Rated voltage (III / 3) | 500 V |
| Rated impulse withstand voltage (III/3) | 6 kV |
| Rated current | 3.15 A |
Electrical data - Voltage Signaling
| Power loss at IN = 1Â A (per terminal) | 0.001 |
|---|---|
| Power loss at IN = 5Â A (per terminal) | 0.025 |
Electrical data - Ratings per Fuse Cartridge
| Ratings per | IEC/EN 60664-1 |
|---|---|
| Rated voltage (III / 3) | 500 V |
| Rated current | 3.15 A |
| Time-current characteristic of the fuse cartridge | F |
| Fuse cartridge short-circuit capability | 50 kA |
Connection data - Connection: Current Circuit
| Connection technology | Push-in CAGE CLAMP® |
|---|---|
| Actuation type | Operating tool |
| Connectable conductor materials | Copper |
| Solid conductor | 0.5 … 10 mm² / 20 … 8 AWG |
| Strip length | 13 … 15 mm / 0.51 … 0.59 inches |
Connection data - Connection: Voltage Circuit
| Connection technology | Push-in CAGE CLAMP® |
|---|---|
| Actuation type | Operating tool |
| Connectable conductor materials | Copper |
| Solid conductor | 0.5 … 10 mm² / 20 … 8 AWG |
| Strip length | 13 … 15 mm / 0.51 … 0.59 inches |
Physical data
| Width | 163 mm |
|---|---|
| Height | 155 mm |
| Depth | 95 mm |
Material data
| Fire load | 6.832 MJ |
|---|---|
| Weight | 519.6 g |
Commercial data
| Product Group | 5 (Rails) |
|---|---|
| PU (SPU) | 1 pcs |
| Packaging type | Box |
| Country of origin | PL |
| Customs tariff number | 85371098990 |
Product Classification
| UNSPSC | 39121410 |
|---|---|
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 7439-92-1 |
|---|---|
| REACH Candidate List Substance | Lead |
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 6(c) |
| SCIP notification number (Austria) | bc2c16b8-89a5-42d4-a5a1-ab2b5fc062e2 |
| SCIP notification number (Belgium) | aa908b60-7079-434a-b089-8e6976b060cb |
| SCIP notification number (Bulgaria) | b68dc504-4e0d-48b2-918b-7aa8ab171363 |
| SCIP notification number (Czech Republic) | 31204a6e-2f4b-4b92-b124-9cd4f93e99ea |
| SCIP notification number (Denmark) | 33de28f3-7d92-46ef-a9ce-40bbb751faad |
| SCIP notification number (Finland) | 977cf486-5090-43a2-a1df-1309d98ca317 |
| SCIP notification number (France) | a1b0e615-feea-467c-985e-60cab5c719dd |
| SCIP notification number (Germany) | 98960b53-70ad-488c-bf4a-1fa5d95918d8 |
| SCIP notification number (Hungary) | 8a39ca45-387d-4e3a-9d33-c75416967e9d |
| SCIP notification number (Italy) | 09d553bf-ae1d-4eb8-be38-0d5e00fbdb04 |
| SCIP notification number (Netherlands) | f8d8cf43-06a8-470e-933d-896cb1907d54 |
| SCIP notification number (Poland) | d5030d06-a750-4601-abbc-49af030b2f00 |
| SCIP notification number (Romania) | 32988fe8-6921-4d6f-a854-9b474f169642 |
| SCIP notification number (Sweden) | 8c895652-ec60-48cc-925d-0a6abb519947 |
