Wago 832-532

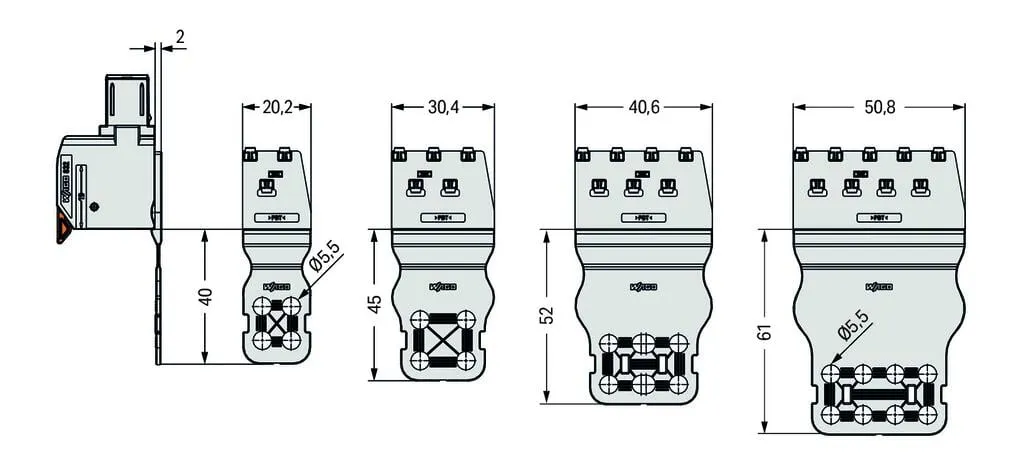

Strain relief plate; for female and male connectors; 20.2 mm wide; 1 part; Pin spacing 10.16 mm; 2-pole; light gray 832-532
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Strain relief plate; for female and male connectors; 20.2 mm wide; 1 part; Pin spacing 10.16 mm; 2-pole; light gray 832-532
Specification
Connection data - Connection 1
| Pole number | 2 |
|---|
Physical data
| Width | 20.2 mm / 0.795 inches |
|---|---|
| Height | 4 mm / 0.157 inches |
| Depth | 81.15 mm / 3.195 inches |
Mechanical data
| Mounting type | Snap-in mounting |
|---|---|
| Suitable | for standard male and female connectors |
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | light gray |
| Material group | I |
| Insulation material (main housing) | Polybutylene terephthalate (PBT) |
| Flammability class per UL94 | V0 |
| Fire load | 0.164 MJ |
| Weight of insulation material | 2.51 g |
| Weight | 2.5 g |
Environmental requirements
| Processing temperature | -35 … +60 °C |
|---|
Commercial data
| PU (SPU) | 60 (10) pcs |
|---|---|
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4055143935234 |
| Customs tariff number | 85389099990 |
Product Classification
| UNSPSC | 39121421 |
|---|---|
| ETIM 9.0 | EC002848 |
| ETIM 10.0 | EC002848 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
