Wago 832-522

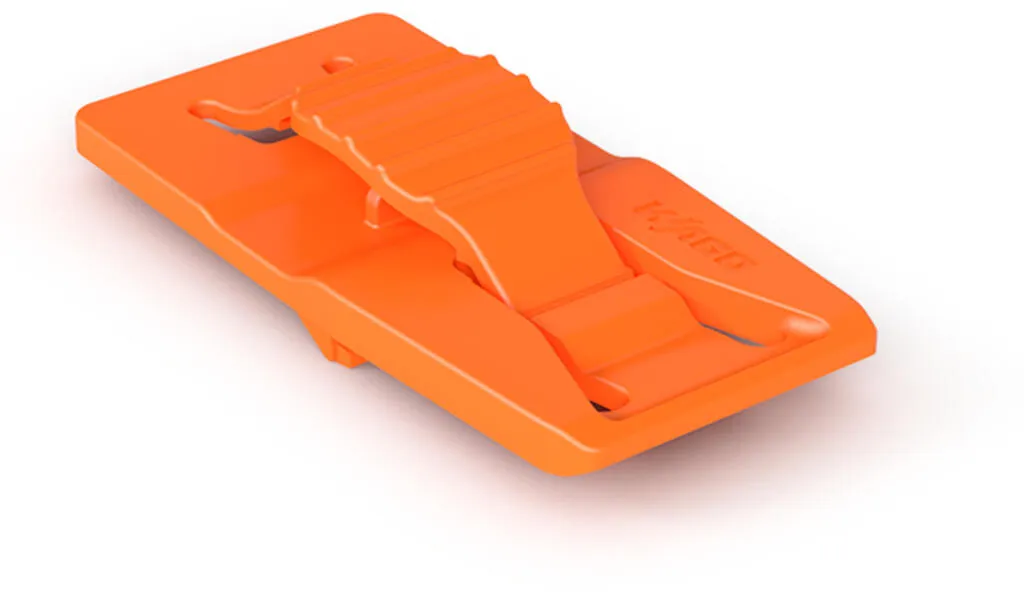

center locking; for female connectors; for even pole numbers; 1 part; orange 832-522
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
center locking; for female connectors; for even pole numbers; 1 part; orange 832-522
Specification
Physical data

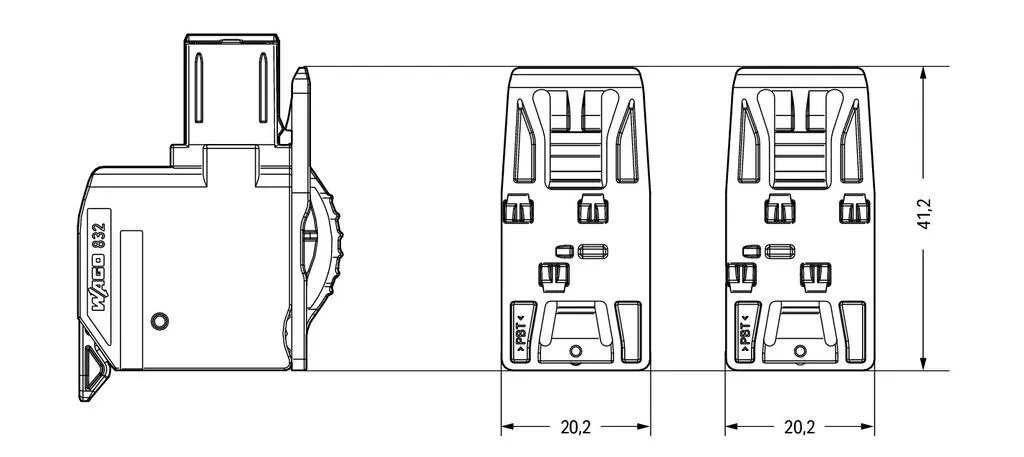

| Width | 20.2 mm |
|---|
Mechanical data
| Mounting type | Snap-in mounting |
|---|---|
| Suitable | for standard male and female connectors |
Plug-in connection
| Locking of plug-in connection | Locking lever |
|---|
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | orange |
| Material group | I |
| Insulation material (main housing) | Polybutylene terephthalate (PBT) |
| Flammability class per UL94 | V0 |
| Fire load | 0.064 MJ |
| Weight of insulation material | 2.14 g |
| Weight | 2.1 g |
Environmental requirements
| Processing temperature | -35 … +60 °C |
|---|
Commercial data
| PU (SPU) | 60 (10) pcs |
|---|---|
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4055143935425 |
| Customs tariff number | 39269097900 |
Product Classification
| UNSPSC | 39121421 |
|---|---|
| ETIM 9.0 | EC002848 |
| ETIM 10.0 | EC002848 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
