Wago 832-300
Locking device; for feed-through mounting; 2 parts; light gray 832-300
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

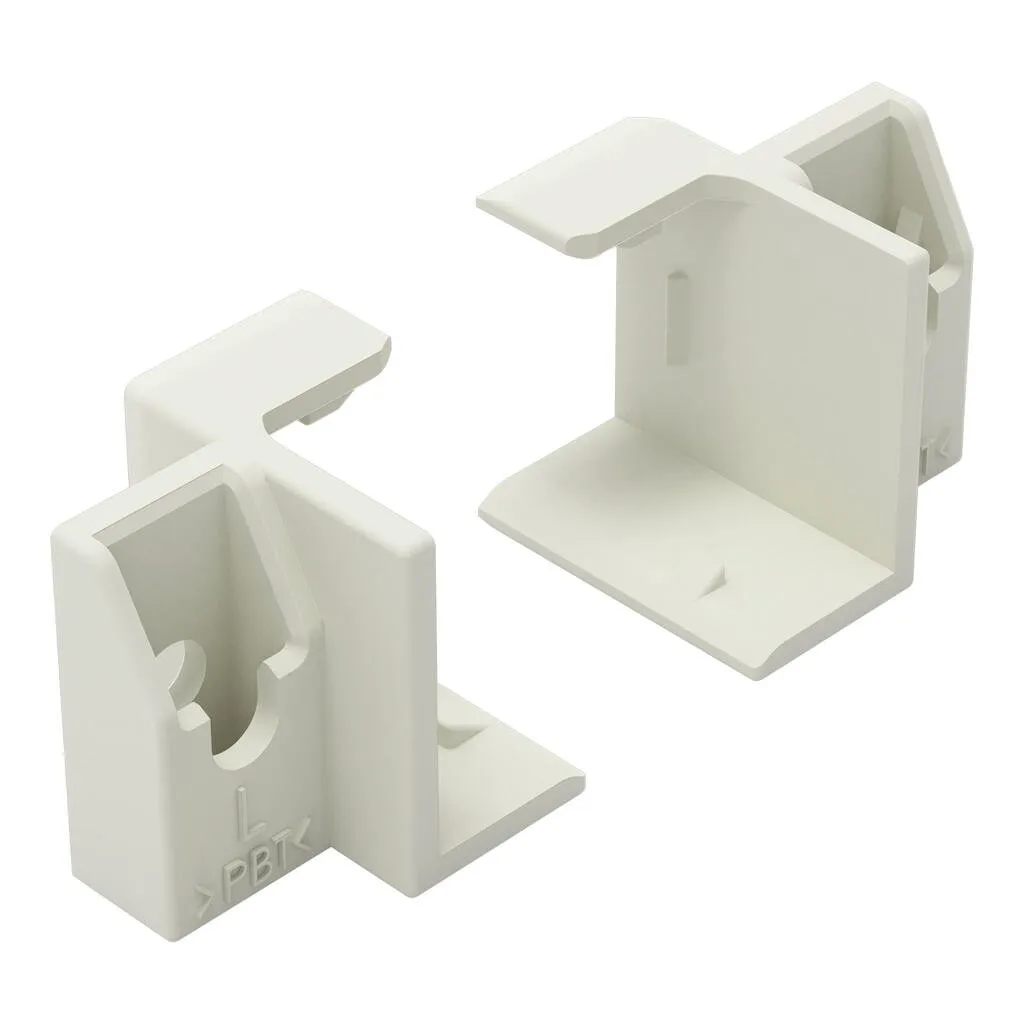

Locking device; for feed-through mounting; 2 parts; light gray 832-300
Specification

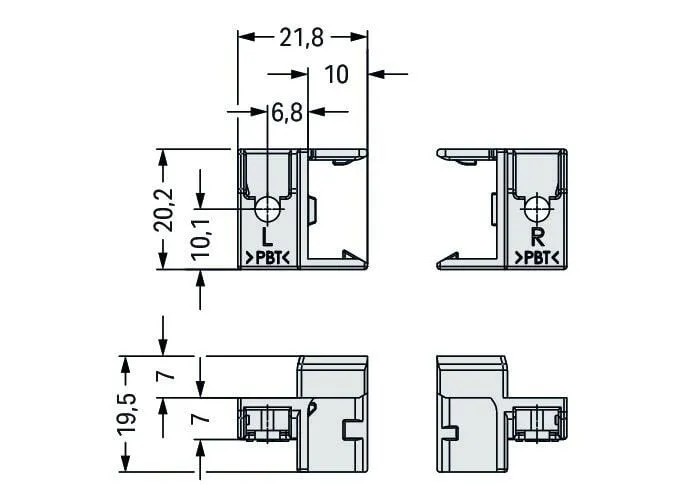

Physical data
| Width | 21.8 mm |
|---|---|
| Height | 20.2 mm |
| Depth | 19.5 mm |
Mechanical data
| Variable coding | Yes |
|---|---|
| Housing sheet thickness | 0.5 … 4 mm / 0.02 … 0.157 inches |
Plug-in connection
| Mismating protection | Yes |
|---|
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | light gray |
| Material group | I |
| Insulation material (main housing) | Polybutylene terephthalate (PBT) |
| Flammability class per UL94 | V0 |
| Fire load | 0.3 MJ |
| Weight | 10 g |
Commercial data
| PU (SPU) | 20 pcs |
|---|---|
| Packaging type | Box |
| Country of origin | JP |
| GTIN | 4066966089301 |
| Customs tariff number | 85389099990 |
Product Classification
| UNSPSC | 31162301 |
|---|---|
| ETIM 9.0 | EC002848 |
| ETIM 10.0 | EC002848 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
