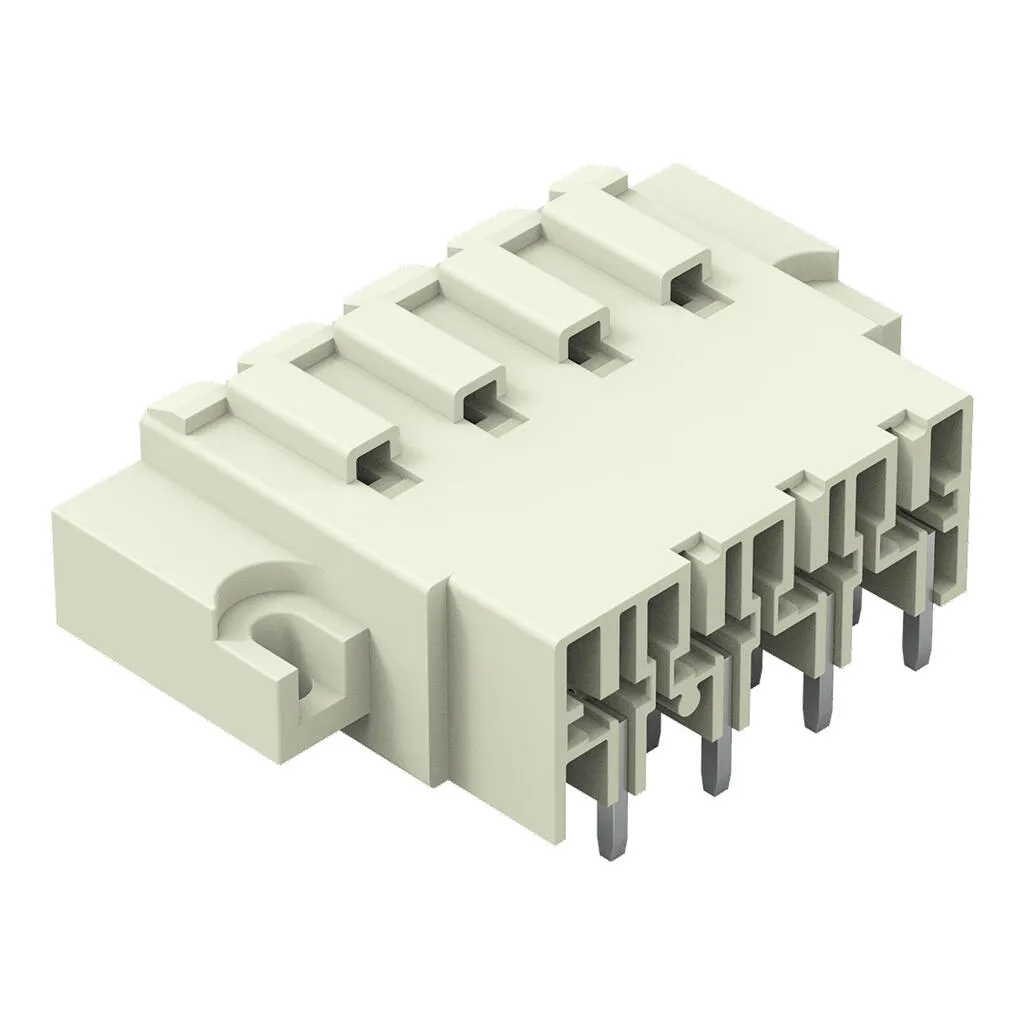

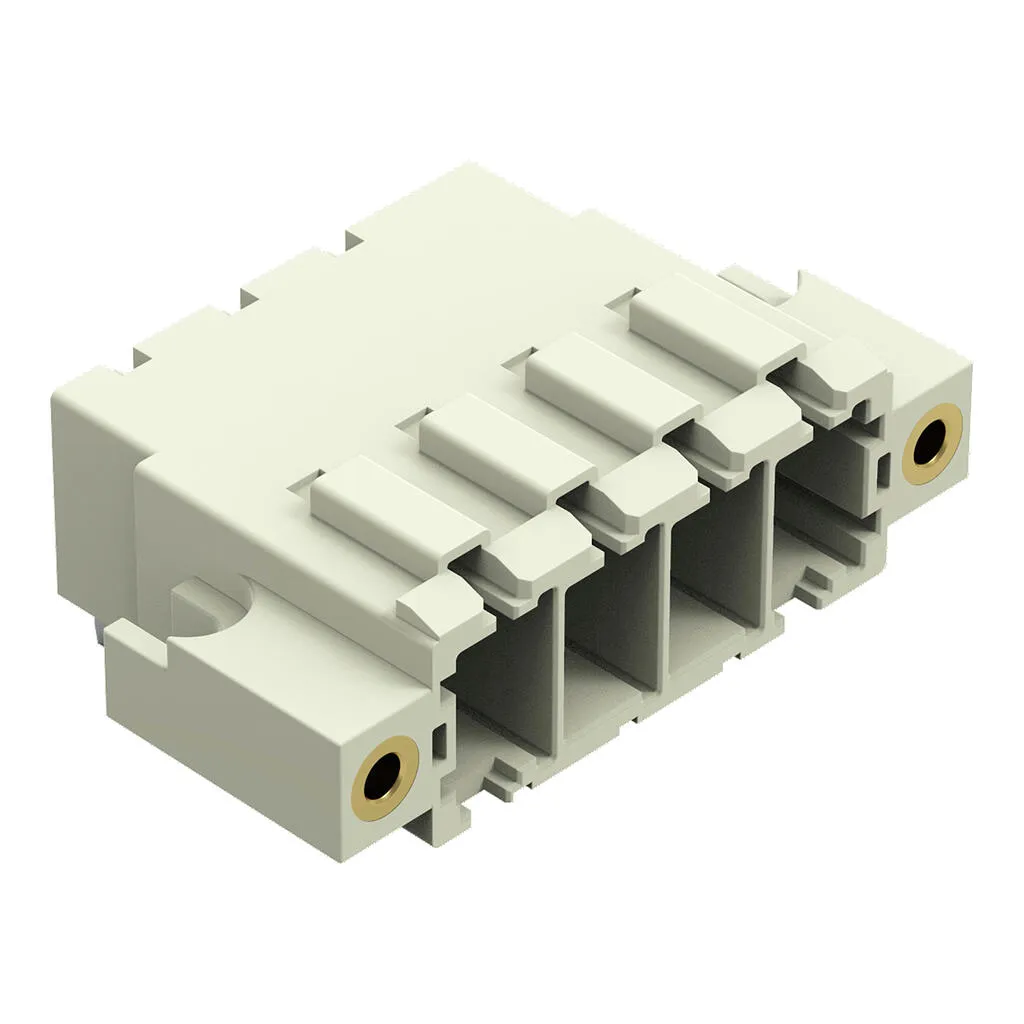

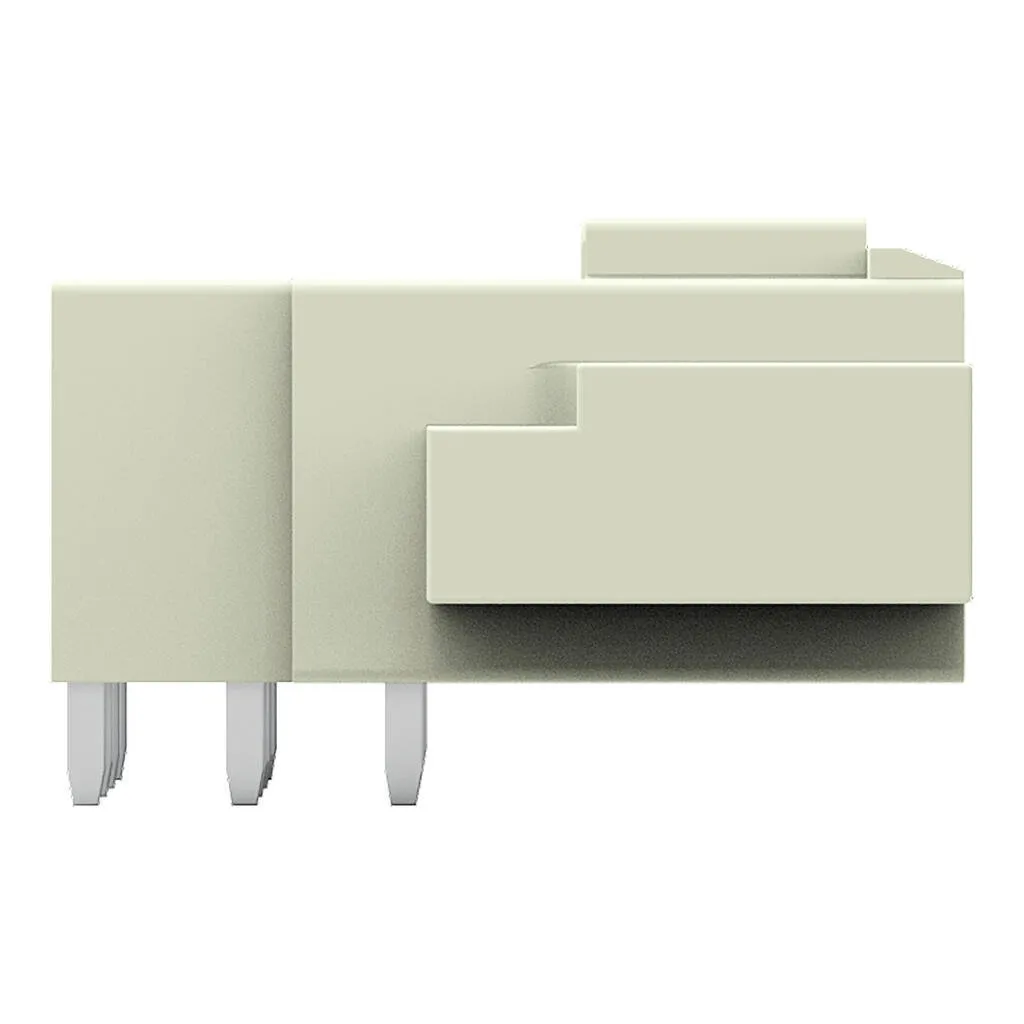

Wago 831-3624/108-000

Male connector, 831 Series, solder pin dimensions 1 x 1.2 mmThis male connector (item number 831-3624/108-000) simplifies electrical installations. The dimensions are (46.1 x 18.8 x 29) mm (width x he…

Request for Quote

Compare
Add to wishlist

Shipping & Delivery

  • Courier delivery

Our courier will deliver to the specified address

5-6 Days

From €20

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

From €40

  • Warranty 1 year

More details

  • Free 30-Day returns

More details

Description

Male connector, 831 Series, solder pin dimensions 1 x 1.2 mmThis male connector (item number 831-3624/108-000) simplifies electrical installations. The dimensions are (46.1 x 18.8 x 29) mm (width x height x depth).Tin is used for coating the contact surfaces. THT is used to solder the pcb connector.

Specification

Notes

Safety InformationThe MCS – MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated.
Variants:Other pole numbers, Protection against PCB mounting errors, Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/.

Electrical data - Ratings per IEC/EN

Ratings perIEC/EN 60664-1
Nominal voltage (III/3)500 V
Rated impulse withstand voltage (III / 3)6 kV
Rated voltage (III/2)630 V
Rated impulse withstand voltage (III/2)6 kV
Nominal voltage (II/2)1000 V
Rated impulse withstand voltage (II/2)6 kV

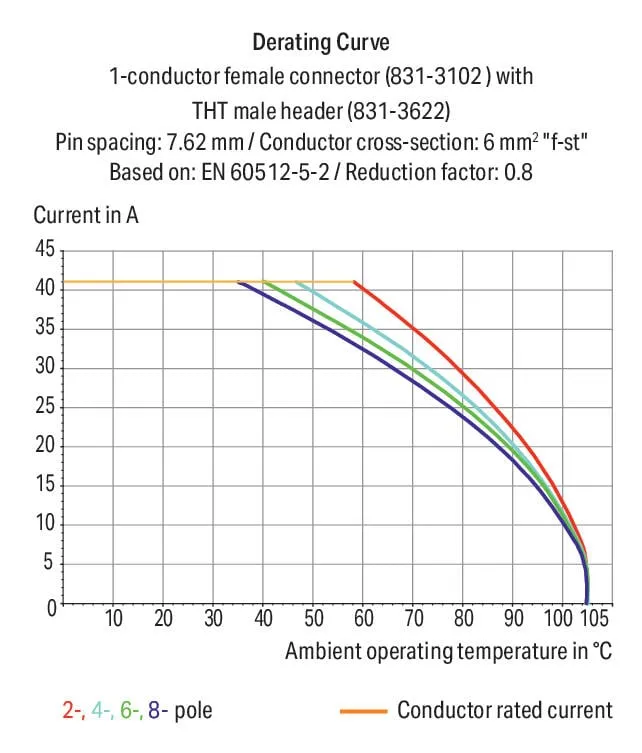

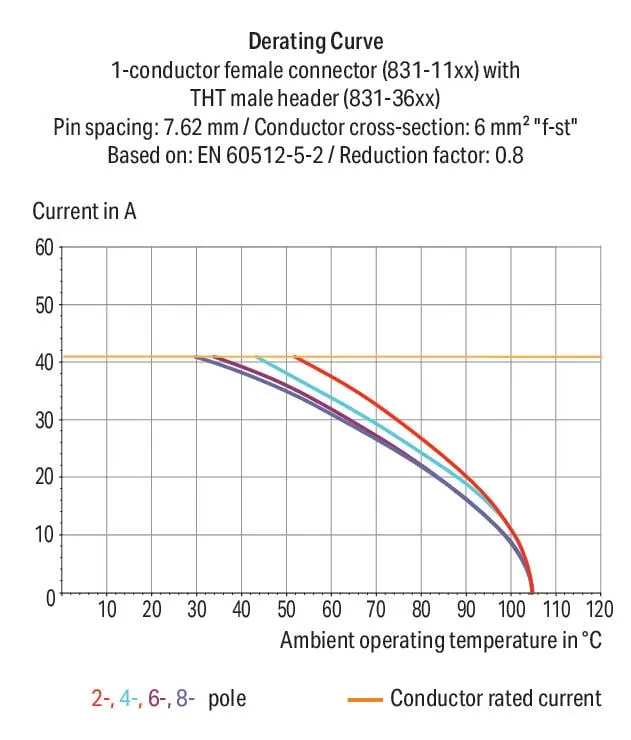

Rated current41 A
Legend (ratings)(III / 2) ≙ Overvoltage category III / Pollution degree 2
Ratings perIEC/EN 60664-1 / IEC/EN 60664-1 / IEC/EN 60664-1
Overvoltage categoryIII / III / II
Pollution degree3 / 2 / 2
Nominal voltage500 V / 630 V / 1000 V
Rated impulse withstand voltage6 kV / 6 kV / 6 kV
Rated current41 A / 41 A / 41 A

Electrical data - Ratings per UL

Approvals perUL 1059
Rated voltage UL (Use Group C)300 V
Rated current UL (Use Group C)42 A
Rated voltage UL (Use Group D)600 V
Rated current UL (Use Group D)5 A
Approvals perUL 1059 / UL 1059 / UL 1059
Use groupB / C / D
Rated voltage300 V / 600 V
Rated current42 A / 5 A

Electrical data - Ratings per CSA

Approvals perCSA
Rated voltage CSA (Use Group C)300 V
Rated current CSA (Use Group C)41 A
Rated voltage CSA (Use Group D)600 V
Rated current CSA (Use Group D)5 A
Approvals perCSA / CSA / CSA
Use groupB / C / D
Rated voltage300 V / 600 V
Rated current41 A / 5 A

Connection data

Total number of potentials4
Number of connection types1
Number of levels1

Connection data - Connection 1

Pole number4

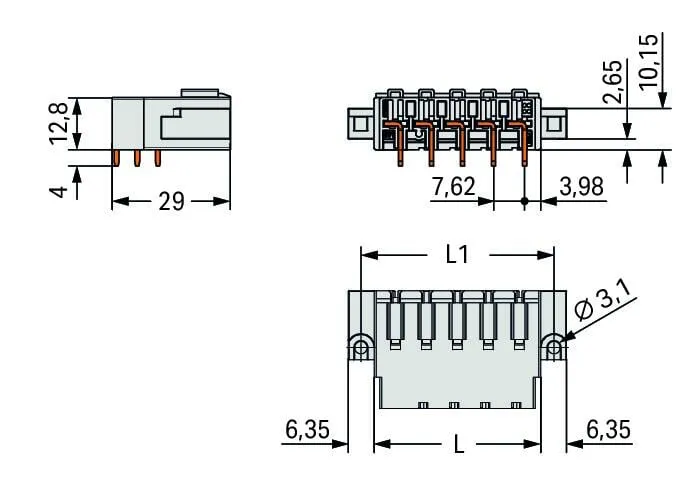

Physical data

Pin spacing7.62 mm / 0.3 inches
Width46.1 mm / 1.814 inches
Height18.8 mm / 0.74 inches
Height from the surface14.8 mm / 0.583 inches
Depth29 mm / 1.142 inches
Solder pin length4 mm
Solder pin dimensions1 x 1.2 mm
Drilled hole diameter with tolerance1.7 (+0.1) mm

Mechanical data

Variable codingYes
Anti-rotation protectionYes

Plug-in connection

Contact type (pluggable connector)Male connector/plug
Connector (connection type)for PCB
Mismating protectionYes
Plugging without loss of pin spacingNo
Mating direction to the PCB0 °
Locking of plug-in connectionThreaded flange

PCB contact

PCB contactTHT
Solder pin arrangementover the entire male connector (in-line)
Number of solder pins per potential3

Material data

Note (material data)Information on material specifications can be found here
Colorlight gray
Material groupI
Insulation material (main housing)Polyamide (PA66)
Flammability class per UL94V0
Contact materialElectrolytic copper (ECu)
Contact platingTin
Fire load0.227 MJ
Weight13.6 g

Environmental requirements

Limit temperature range-60 … +105 °C
Processing temperature-35 … +60 °C

Environmental requirements - Environmental Testing

Test specification: <br/>Railway applications –<br/>Rolling stock –<br/>Electronic equipmentDIN EN 50155 (VDE 0115-200):2022-06
Test procedure: <br/>Railway applications – <br/>Rolling stock equipment – <br/>Vibration and shock testsDIN EN 61373 (VDE 0115-0106):2011-04
Spectrum/Mounting locationService life test, Category 1, Class A/B
Functional test with noise-like oscillationsTest passed according to Section 8 of the standard
Frequencyf1 = 5 Hz to f2 = 150 Hz
Acceleration0.101g (highest test level used for all axes)
Test duration per axis10 min.
Test directionsX, Y and Z axes
Monitoring of contact faults and interruptionsPassed
Voltage drop measurement before and after each axisPassed
Simulated service life test through increased levels of noise-like oscillationsTest passed according to Section 9 of the standard
Frequencyf1 = 5 Hz to f2 = 150 Hz
Acceleration0.572g (highest test level used for all axes)
Test duration per axis5 h
Test directionsX, Y and Z axes
Extended testing: Monitoring of contact faults and interruptionsPassed
Extended testing: Voltage drop measurement before and after each axisPassed
Shock testTest passed according to Section 10 of the standard
Shock pulse formHalf sine
Acceleration5g (highest test level used for all axes)
Shock duration30 ms
Number of shocks (per axis)3 pos. und 3 neg.
Test directionsX, Y and Z axes
Extended testing: Monitoring of contact faults and interruptionsPassed
Extended testing: Voltage drop measurement before and after each axisPassed
Vibration and shock stress for rolling stock equipmentPassed

Commercial data

PU (SPU)24 pcs
Packaging typeBox
Country of originPL
GTIN4066966089974
Customs tariff number85366930000

Product Classification

UNSPSC39121409
ETIM 9.0EC002637
ETIM 10.0EC002637
ECCNNO US CLASSIFICATION

Environmental Product Compliance

CAS-No.7439-92-1
REACH Candidate List SubstanceLead
RoHS Compliance StatusCompliant,No Exemption
SCIP notification number (Austria)890ceb92-e9e0-4cc1-85ad-89796614887c
SCIP notification number (Belgium)2cac6024-0e53-433f-94ed-b7e302cfe971
SCIP notification number (Bulgaria)19f0fbca-a002-4127-a896-235eab59c4fe
SCIP notification number (Czech Republic)f7227c32-0464-4cbb-b4e4-211d05a89cda
SCIP notification number (Denmark)27b4d791-bbfc-41ed-81e6-878b91a6dbd9
SCIP notification number (Finland)e453bcff-dcb0-45b9-81e7-d2caa240aec1
SCIP notification number (France)236eea8a-6d7f-4d8c-9efe-b19ac610c9ac
SCIP notification number (Germany)33be0b2b-8a2f-4a64-bec2-e7438acc1540
SCIP notification number (Hungary)6d4ecee5-f859-4e2e-a332-8e7214c5aeb8
SCIP notification number (Italy)76dbfc3f-2625-4aeb-a39d-f9d4a5c5d875
SCIP notification number (Netherlands)05141a49-3001-4c0b-bfc0-7355f8bfdc03
SCIP notification number (Poland)0989400b-d31e-4527-9374-883981795899
SCIP notification number (Romania)3b06bcec-e6a6-438e-9ae2-5996c2e7f59d
SCIP notification number (Sweden)ac1e9418-0aa5-4e47-a528-adad4b972abe
