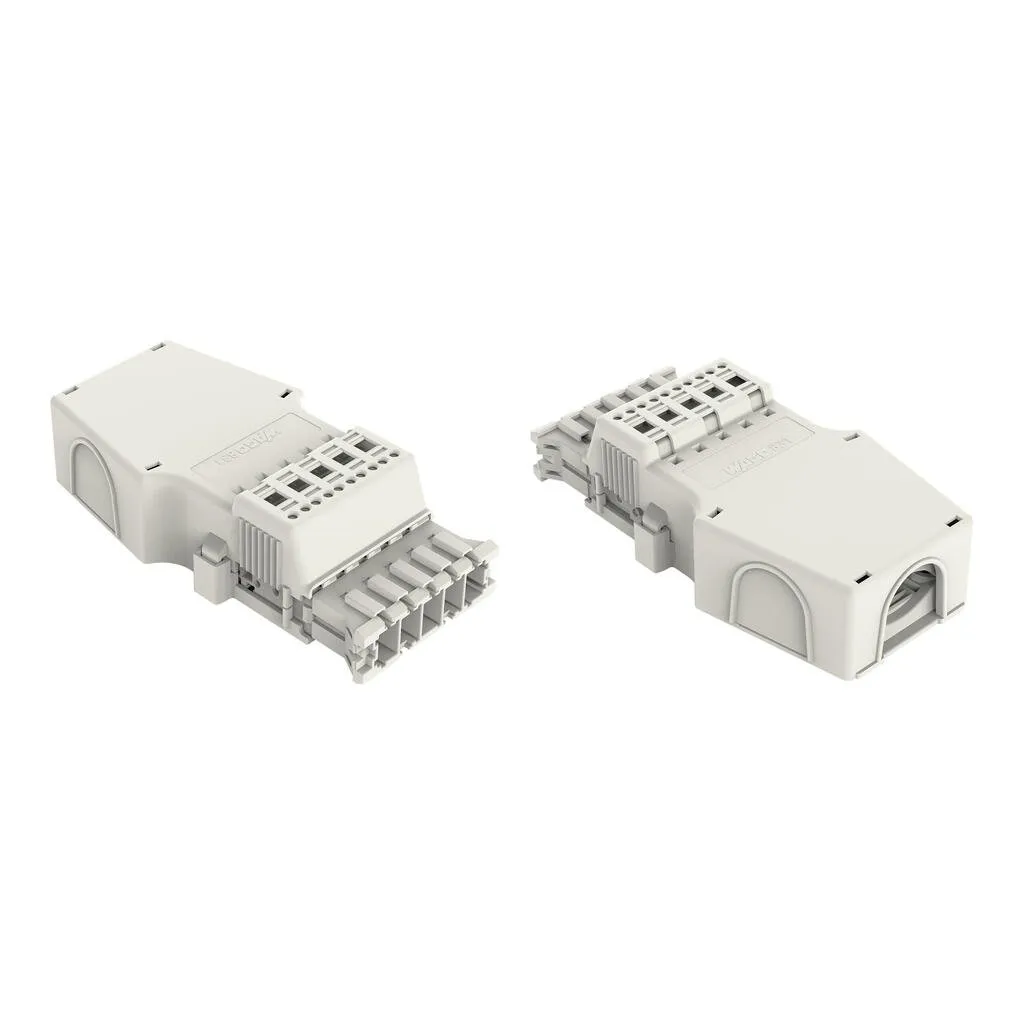

Wago 831-3205/1020-050
Male connector/plug WINSTA® MAXI rated current 35 AThe WINSTA® MAXI male connector/plug with protection type IP20 supports rapid, correct installation. Our pluggable installation connectors with sprin…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Male connector/plug WINSTA® MAXI rated current 35 AThe WINSTA® MAXI male connector/plug with protection type IP20 supports rapid, correct installation. Our pluggable installation connectors with spring pressure connection technology function entirely without screw connections. They allow flexible, error-free installation in a large number of applications. The coding options reduce installation errors, allowing fast, maintenance-free wiring of all components. The pluggable installation connector is protected against ingress by solid objects in accordance with protection type IP20 (When mated and secured with a strain relief housing: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!)). Standard mains applications for almost any domain of use can be implemented with WINSTA® MAXI pluggable installation connectors with A coding. Important parameters in the selection of a pluggable installation connector are the rated current and voltage: They tell us about the product’s domains of use. This product has a current rating of 35 A – therefore it is suitable for powerful loads. WINSTA® MAXI is synonymous with higher power. The 831 Series Pluggable Connectors are especially suitable for power feed-in applications and help reduce voltage drop for long distances.Lower costs through fast commissioning and elimination of service expenses – solutions from WINSTA® MAXIWINSTA® is the pluggable connection system that is ideally tailored to the strict requirements of electrical installation. It ensures fast, secure and, above all, error-free installation of components and cables. Choose quality and durability – with protection against mismating from WAGO makes the electrical installation of electrical components noticeably easier. effective protection against mismatingsaves time, since no wiring is required at the construction sitewith A coding for a large number of usesready to install and use immediatelyquick replacement of defective units during ongoing operation
Specification
Electrical data - Ratings per IEC/EN
| Ratings per | IEC/EN 60664-1 |
|---|---|
| Nominal voltage (III/3) | 400 V |
| Rated impulse withstand voltage (III / 3) | 6 kV |
| Rated current | 35 A |
| Legend (ratings) | (III / 3) ≙ Overvoltage category III / Pollution degree 3 |
| Ratings per | IEC/EN 60664-1 / IEC/EN 60664-1 / IEC/EN 60664-1 |
| Overvoltage category | III / III / II |
| Pollution degree | 3 / 2 / 2 |
| Nominal voltage | 400 V |
| Rated impulse withstand voltage | 6 kV |
| Rated current | 35 A |
Electrical data - General information
| Note on contact resistance | approx. 1 mΩ of contact resistance approx. 0.25 mΩ contact transition plug/socket |
|---|
Connection data
| Clamping units | 5 |
|---|---|
| Total number of potentials | 5 |
Connection data - Connection 1
| Connection technology | Push-in CAGE CLAMP® |
|---|---|
| Actuation type | Operating tool, Push-in |
| Nominal cross-section | 6 mm² / 8 AWG |
| Solid conductor | 0.5 … 6 mm² / 20 … 8 AWG |
| Stranded conductor | 0.5 … 4 mm² / 20 … 12 AWG |
| Fine-stranded conductor | 0.5 … 6 mm² / 20 … 8 AWG |
| Fine-stranded conductor; with insulated ferrule | 0.5 … 6 mm² |
| Fine-stranded conductor; with uninsulated ferrule | 0.5 … 6 mm² |
| Strip length | 13 mm / 0.51 inches |
| Pole number | 5 |
| Connectable sheathed cable diameter | 13 … 18 mm |
| Conductor entry direction to mating direction | 0 ° |

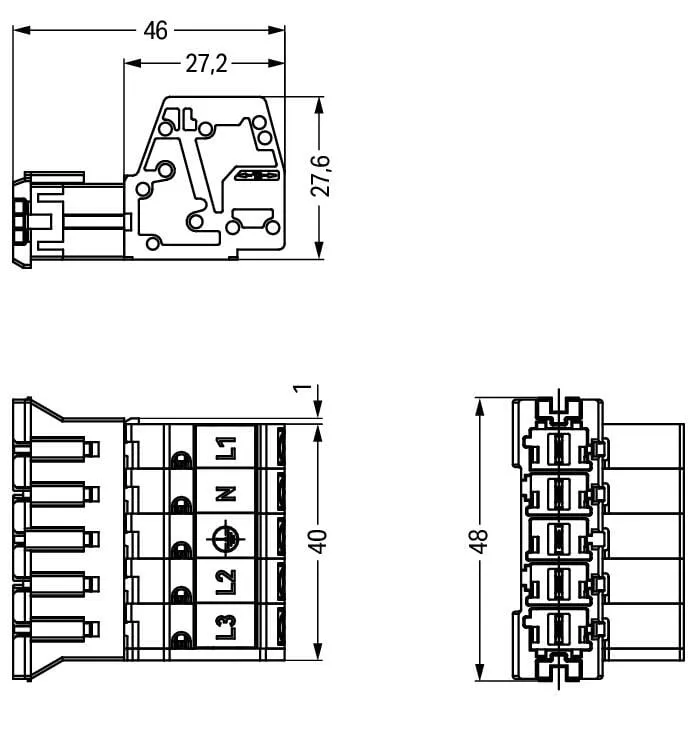

Physical data
| Pin spacing | 7.62 mm / 0.3 inches |
|---|---|
| Width | 48 mm / 1.89 inches |
| Height | 29 mm / 1.142 inches |
| Depth | 46 mm / 1.811 inches |
Mechanical data
| Use | General mains applications |
|---|---|
| Coding | A |
| Variable coding | No |
| Marking | L1 N ⏚ L2 L3 |
| Potential marking | L1 N ⏚ L2 L3 |
| Mating force of a plug-in connection | approx. 30 … 70 N (depending on number of poles) |
| Retention force of a plug-in connection | Locked: > 80 N |
| Unmating force of a plug-in connection | Unlocked: approx. 30 … 70 N (depending on pole number) |
| Number of mating cycles | 100, without resistive load |
| Protection type | IP20; When mated and secured with a strain relief housing: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!) |
Plug-in connection
| Contact type (pluggable connector) | Male connector/plug |
|---|---|
| Connector (connection type) | for conductor |
| Mismating protection | Yes |
| Note on mismating protection | All WINSTA® components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180 c.) plugging while laterally staggeredd.) plugging one pole |
| Locking lever | Can be retrofitted |
| Locking of plug-in connection | Locking lever |
| Strain relief | Strain relief housing |
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | white |
| Cover color | gray |
| Material group | I |
| Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 |
| Clamping spring material | Chrome-nickel spring steel (CrNi) |
| Contact material | Copper or copper alloy; surface-treated |
| Contact plating | Tin |
| Fire load | 1.404 MJ |
| Connector color | white |
| Strain relief color | white |
| Printing color of strain relief | black |
| Weight | 66.7 g |
Environmental requirements
| Processing temperature | -5 … +40 °C |
|---|---|
| Continuous operating temperature | -35 … +85 °C |
| Note on continuous operating temperature | Insulating parts for temperatures ≤ 105 °C |
Commercial data
| PU (SPU) | 5 pcs |
|---|---|
| Packaging type | Box |
| Country of origin | PL |
| GTIN | 4055143500722 |
| Customs tariff number | 85366990990 |
Product Classification
| UNSPSC | 39121402 |
|---|---|
| eCl@ss 10.0 | 27-44-06-05 |
| eCl@ss 9.0 | 27-44-06-05 |
| ETIM 9.0 | EC002560 |
| ETIM 10.0 | EC002560 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
