Wago 831-302
Snap-in frames for through-panel MCS MAXI connectorsFast and easy installation – without toolsCompatible with MCS MAXI male and female connectorsFor panel thickness ranging from 0.5 to 2.5 mmOptional…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Snap-in frames for through-panel MCS MAXI connectorsFast and easy installation – without toolsCompatible with MCS MAXI male and female connectorsFor panel thickness ranging from 0.5 to 2.5 mmOptional screw mounting
Specification
Connection data - Connection 1
| Pole number | 2 |
|---|

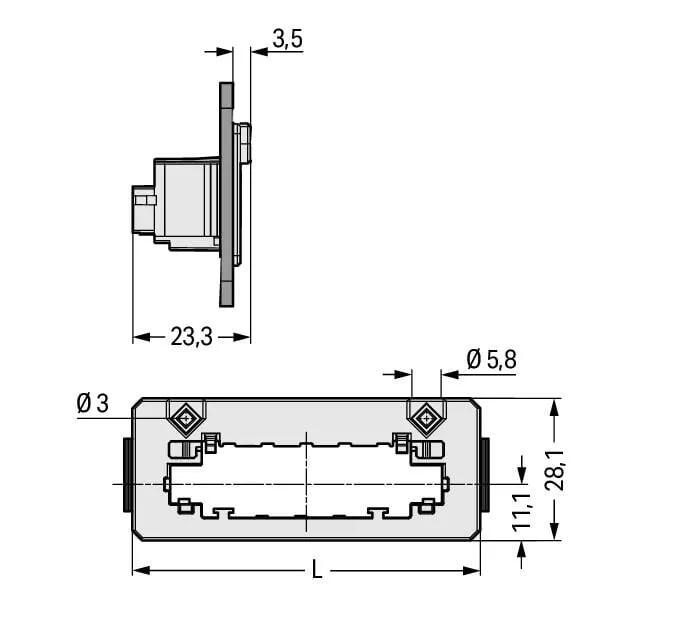

Physical data
| Width | 45.84 mm / 1.805 inches |
|---|---|
| Height | 28.1 mm / 1.106 inches |
| Depth | 23.3 mm / 0.917 inches |
Mechanical data
| Housing sheet thickness | 0.5 … 2.5 mm / 0.02 … 0.098 inches |
|---|---|
| Mounting type | Snap-in flange |
| Mounting type | Feed-through mounting |
Plug-in connection
| Mismating protection | Yes |
|---|
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | light gray |
| Material group | I |
| Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 |
| Fire load | 0.174 MJ |
| Weight | 5.8 g |
Commercial data
| PU (SPU) | 48 pcs |
|---|---|
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4055143564700 |
| Customs tariff number | 39269097900 |
Product Classification
| UNSPSC | 39121702 |
|---|---|
| eCl@ss 10.0 | 27-14-11-92 |
| eCl@ss 9.0 | 27-14-11-92 |
| ETIM 9.0 | EC002848 |
| ETIM 10.0 | EC002848 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
