Wago 831-1032

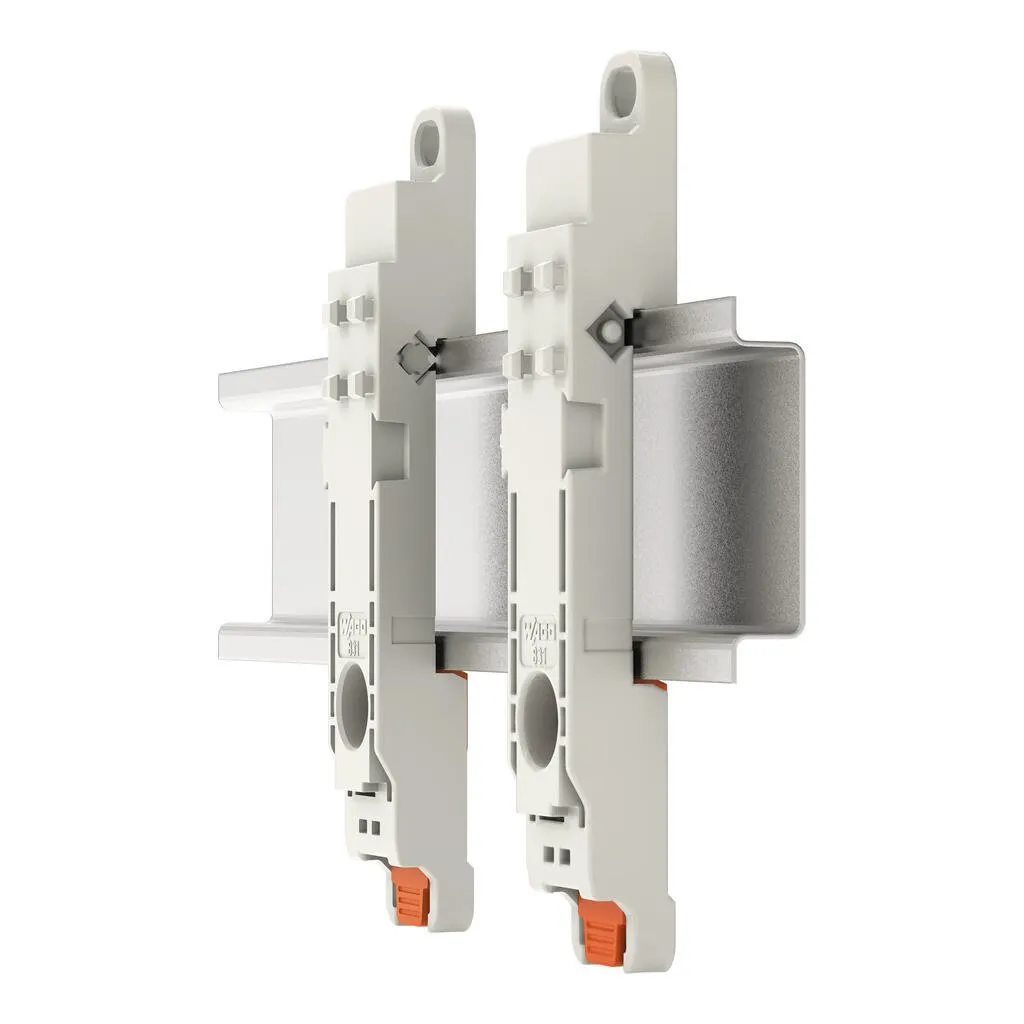

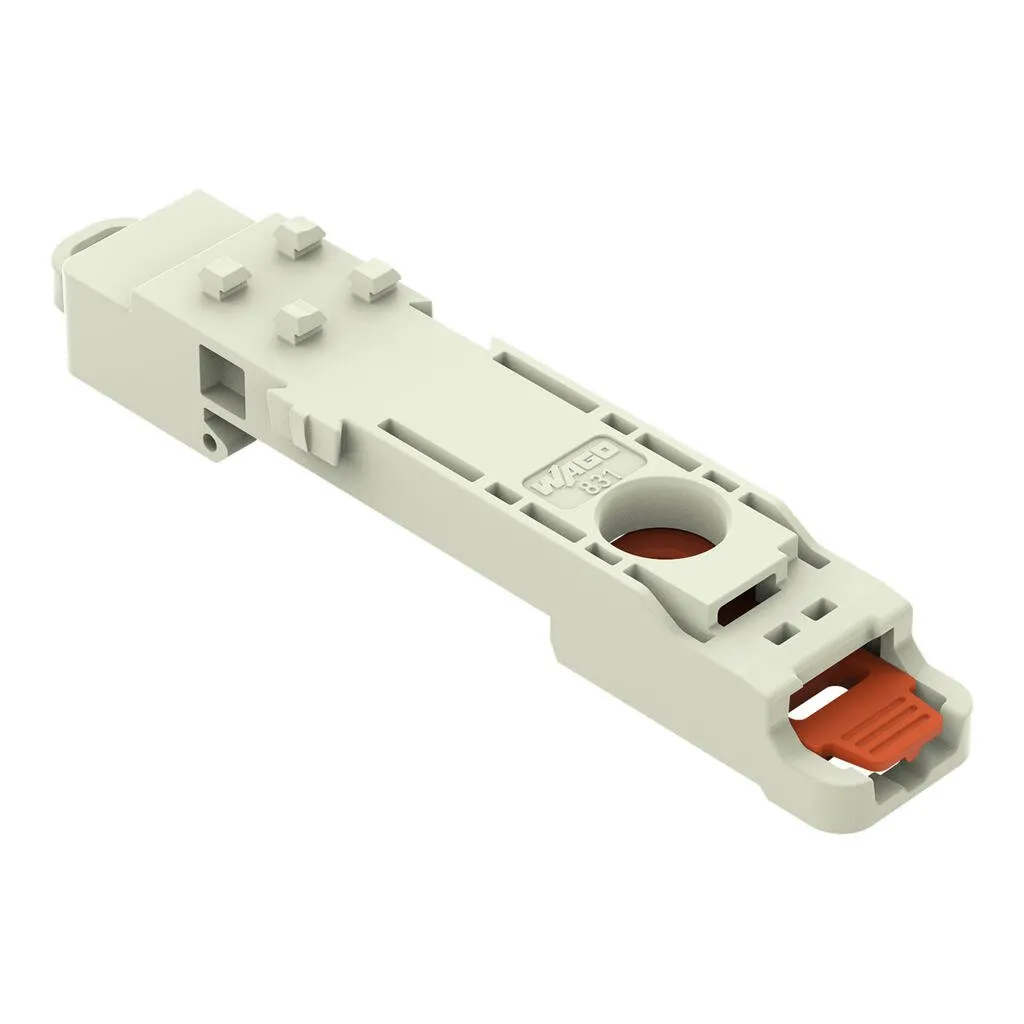

Mounting adapter; for DIN-35 rail/panel mounting; freely movable on DIN-rail 35; Pin spacing 7.62 mm; light gray 831-1032
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Mounting adapter; for DIN-35 rail/panel mounting; freely movable on DIN-rail 35; Pin spacing 7.62 mm; light gray 831-1032
Specification

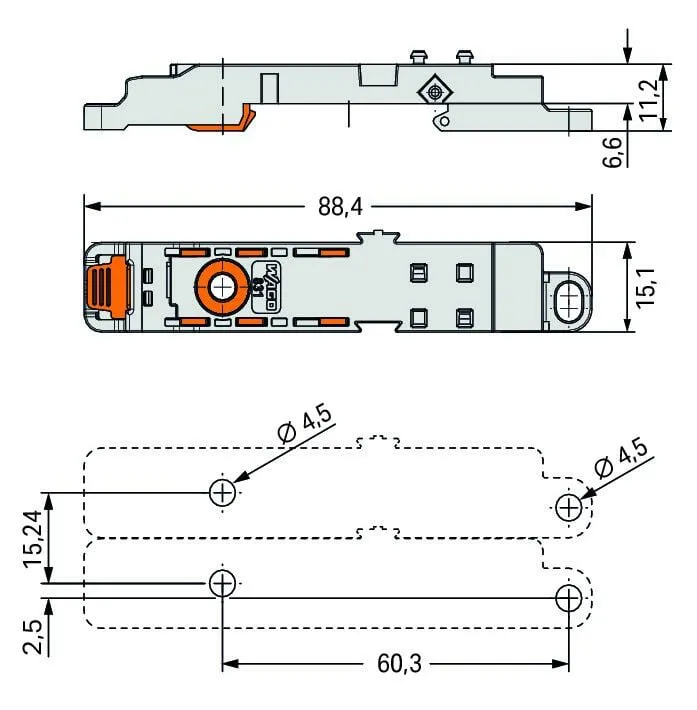

Physical data
| Width | 15.1 mm / 0.594 inches |
|---|---|
| Height | 11.2 mm / 0.441 inches |
| Height from upper-edge of DIN-rail | 6.6 mm / 0.26 inches |
| Depth | 88.4 mm / 3.48 inches |
Mechanical data
| Mounting type | Snapping on |
|---|---|
| Mounting type | Panel mounting, DIN-35 rail |
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | light gray |
| Material group | I |
| Insulation material (main housing) | Polybutylene terephthalate (PBT) |
| Flammability class per UL94 | V0 |
| Fire load | 0.232 MJ |
| Weight | 6.4 g |
Environmental requirements
| Limit temperature range | -60 … +105 °C |
|---|---|
| Processing temperature | -35 … +60 °C |
Commercial data
| PU (SPU) | 12 pcs |
|---|---|
| Packaging type | Box |
| Country of origin | PL |
| GTIN | 4066966112405 |
| Customs tariff number | 39269097900 |
Product Classification
| UNSPSC | 39121702 |
|---|---|
| ETIM 9.0 | EC002848 |
| ETIM 10.0 | EC002848 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
