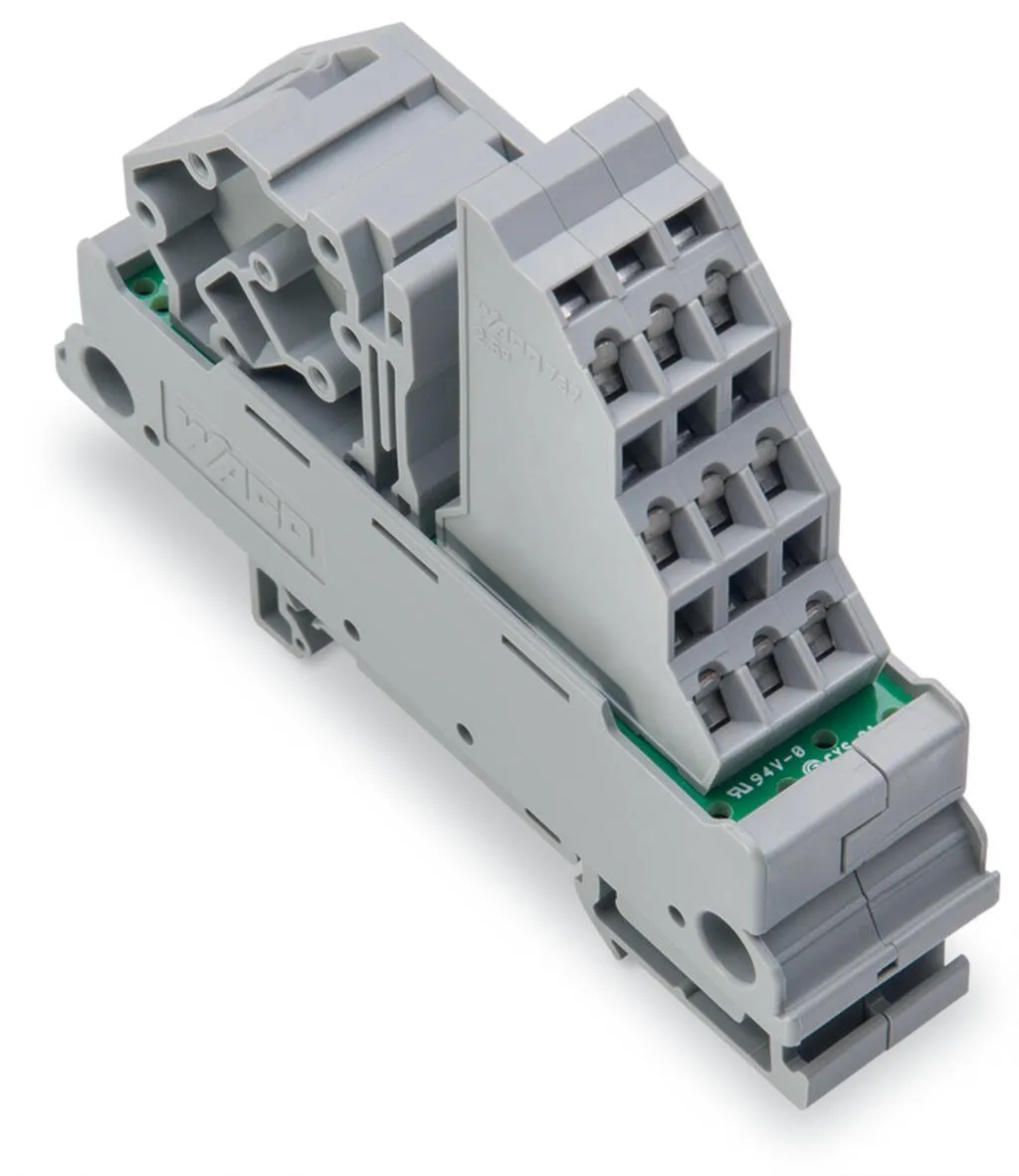

Wago 830-800/000-303
Potential distribution module; 1 potential; with 1 input clamping point; Conductor cross-section up to 16 mm²; with 9 output clamping points; Conductor cross-section up to 2.5 mm²; gray 830-800/000-30…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Potential distribution module; 1 potential; with 1 input clamping point; Conductor cross-section up to 16 mm²; with 9 output clamping points; Conductor cross-section up to 2.5 mm²; gray 830-800/000-303
Specification
Electrical data
| Operating voltage | ≤ 250 VAC/VDC |
|---|---|
| Current per connection (max.) | 10 A |
| Total current per potential (max.) | 65 A |
| Specialty functions | with 1 input connection point; with 9 output connection points |
Connection data
| Total number of potentials | 1 |
|---|---|
| Note (conductor cross-section) | 12 AWG: THHN, THWN |
Connection data - Connection 1
| Connection type | Input |
|---|---|
| Mating direction | 45° |
| Connection technology | CAGE CLAMP® |
| WAGO connector | WAGO 745 Series |
| Solid conductor | 0.2 … 16 mm² / 24 … 6 AWG |
| Fine-stranded conductor | 0.2 … 16 mm² / 24 … 6 AWG |
| Strip length | 11 … 12 mm / 0.43 … 0.47 inches |
Connection data - Connection 2
| Connection type | Output |
|---|---|
| Mating direction 2 | vertical |
| Connection technology | CAGE CLAMP® |
| WAGO connector | WAGO 737 Series |
| Solid conductor | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Fine-stranded conductor | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Strip length | 5 … 6 mm / 0.2 … 0.24 inches |
Physical data
| Width | 21 mm / 0.81 inches |
|---|---|
| Height | 85 mm / 3.35 inches |
| Depth from upper-edge of DIN-rail | 62 mm / 2.44 inches |
Mechanical data
| Mounting type | DIN-35 rail |
|---|---|
| Housing design | Mounting carrier |
Material data
| Color | gray |
|---|---|
| Fire load | 0.905 MJ |
| Weight | 63 g |
Environmental requirements
| Ambient temperature (operation) | -20 … +50 °C |
|---|---|
| Relative humidity | ≤ 95 % (without condensation) |
Standards and specifications
| Standards/specifications | cULus 61010-2-201 |
|---|
Commercial data
| PU (SPU) | 10 (1) pcs |
|---|---|
| Packaging type | box |
| Country of origin | US |
| GTIN | 4055143379304 |
| Customs tariff number | 85369010000 |
Product Classification
| UNSPSC | 39121410 |
|---|---|
| eCl@ss 10.0 | 27-14-11-52 |
| eCl@ss 9.0 | 27-14-11-52 |
| ETIM 9.0 | EC002780 |
| ETIM 10.0 | EC002780 |
| ECCN | EAR99 |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
