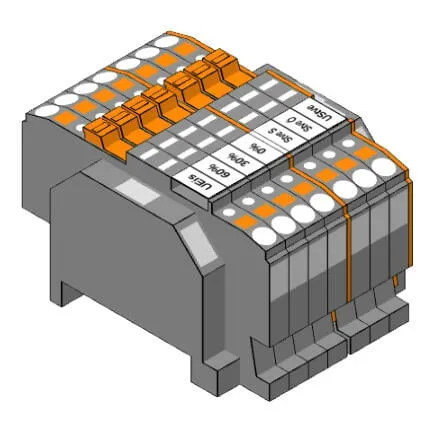

Wago 821-511
Control Signal Terminal Strips per ยง 14a EnWG Due to the Energy Industry Act (EnWG), system operators whose connection power is greater than 4.2 kW (usually wallboxes or heat pumps for private househo…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From โฌ20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From โฌ40
-
Warranty 1 year
-
Free 30-Day returns
Description
Control Signal Terminal Strips per ยง 14a EnWG Due to the Energy Industry Act (EnWG), system operators whose connection power is greater than 4.2 kW (usually wallboxes or heat pumps for private households) are obligated to install throttle devices that can be controlled by the grid operator in an emergency to ensure grid stability in the event of excessive power consumption. For this purpose, WAGO offers the Control Signal Terminal Strips according to ยง 14a EnWG as an interface between consumers and grid operators, which were developed in cooperation with grid operators according to the valid TABs. They offer the advantages of a uniform structure, standards and meet the requirements for clear separation of load and control current.These sets are delivered ready for installation and without a DIN-rail for the end user. They are developed for the German energy market.
Specification
Electrical data - Ratings per IEC/EN
| Ratings per | IEC/EN 60947-7-1 |
|---|---|
| Nominal voltage (III/3) | 400 V |
| Rated impulse withstand voltage (III / 3) | 6 kV |
| Rated current | 16 A |
| Current at conductor cross-section (max.) mmยฒ | 16 A |
| Legend (ratings) | (III / 3) โ Overvoltage category III / Pollution degree 3 |
| Ratings per | IEC/EN 60947-7-1 / IEC/EN 60947-7-1 / IEC/EN 60947-7-1 |
| Overvoltage category | III / III / II |
| Pollution degree | 3 / 2 / 2 |
| Nominal voltage | 400 V |
| Rated impulse withstand voltage | 6 kV |
| Rated current | 16 A |
| Current at conductor cross-section (max.) mmยฒ | 16 A |
Electrical data - Ratings per UL
| Approvals per | UL 1059 |
|---|---|
| Rated voltage UL (Use Group B) | 300 V |
| Rated current UL (Use Group B) | 15 A |
| Rated voltage UL (Use Group C) | 300 V |
| Rated current UL (Use Group C) | 15 A |
| Approvals per | UL 1059 / UL 1059 / UL 1059 |
| Use group | B / C / D |
| Rated voltage | 300 V / 300 V |
| Rated current | 15 A / 15 A |
Electrical data - Ratings per CSA
| Approvals per | CSA 22.2 No 158 |
|---|---|
| Rated voltage CSA (Use Group B) | 300 V |
| Rated current CSA (Use Group B) | 15 A |
| Rated voltage CSA (Use Group C) | 300 V |
| Rated current CSA (Use Group C) | 15 A |
| Approvals per | CSA 22.2 No 158 / CSA 22.2 No 158 / CSA 22.2 No 158 |
| Use group | B / C / D |
| Rated voltage | 300 V / 300 V |
| Rated current | 15 A / 15 A |
Electrical data - Ex information
| Ratings per | ATEX: PTB 20 ATEX 1007 U / IECEx: PTB 20.0013U (Ex ec IIC Gc) |
|---|---|
| Rated voltage EN (Ex e II) | 440 V |
| Rated current (Ex e II) | 17 A |
Electrical data - Power Loss
| Power loss, per pole (potential) | 0.341 W |
|---|---|
| Rated current I<sub>N</sub> for power loss specification | 16 A |
| Resistance value for specified, current-dependent power loss | 0.001 ฮฉ |
Electrical data - General information
| Wiring direction | Front-entry wiring |
|---|
Connection data
| Clamping units | 14 |
|---|---|
| Total number of potentials | 7 |
| Number of levels | 1 |
| Number of jumper slots | 14 |
Connection data - Connection 1
| Connection technology | Push-in CAGE CLAMPยฎ |
|---|---|
| Actuation type | Push-button |
| Connectable conductor materials | Copper |
| Nominal cross-section | 2.5 mmยฒ |
| Solid conductor | 0.25 โฆ 4 mmยฒ / 22 โฆ 12 AWG |
| Solid conductor; push-in termination | 0.75 โฆ 4 mmยฒ / 18 โฆ 12 AWG |
| Fine-stranded conductor | 0.25 โฆ 4 mmยฒ / 22 โฆ 12 AWG |
| Fine-stranded conductor; with insulated ferrule | 0.25 โฆ 2.5 mmยฒ / 22 โฆ 14 AWG |
| Fine-stranded conductor; with ferrule; push-in termination | 1 โฆ 2.5 mmยฒ / 18 โฆ 14 AWG |
| Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. |
| Strip length | 10 โฆ 12 mm / 0.39 โฆ 0.47 inches |
| Wiring direction | Front-entry wiring |
Physical data
| Width | 50.4 mm / 1.984 inches |
|---|---|
| Height | 66.1 mm / 2.602 inches |
| Depth from upper-edge of DIN-rail | 32.9 mm / 1.295 inches |
Mechanical data
| Mounting type | DIN-35 rail |
|---|
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Material group | I |
| Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 |
| Fire load | 1.559 MJ |
| Weight | 65.3 g |
Environmental requirements
| Processing temperature | -35 โฆ +85 ยฐC |
|---|---|
| Continuous operating temperature | -60 โฆ +105 ยฐC |
Commercial data
| PU (SPU) | 1 pcs |
|---|---|
| Packaging type | Box |
| Country of origin | DE |
| GTIN | 4066966785166 |
| Customs tariff number | 85369010000 |
Product Classification
| ETIM 9.0 | EC000902 |
|---|---|
| ETIM 10.0 | EC000902 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
