Wago 821-104

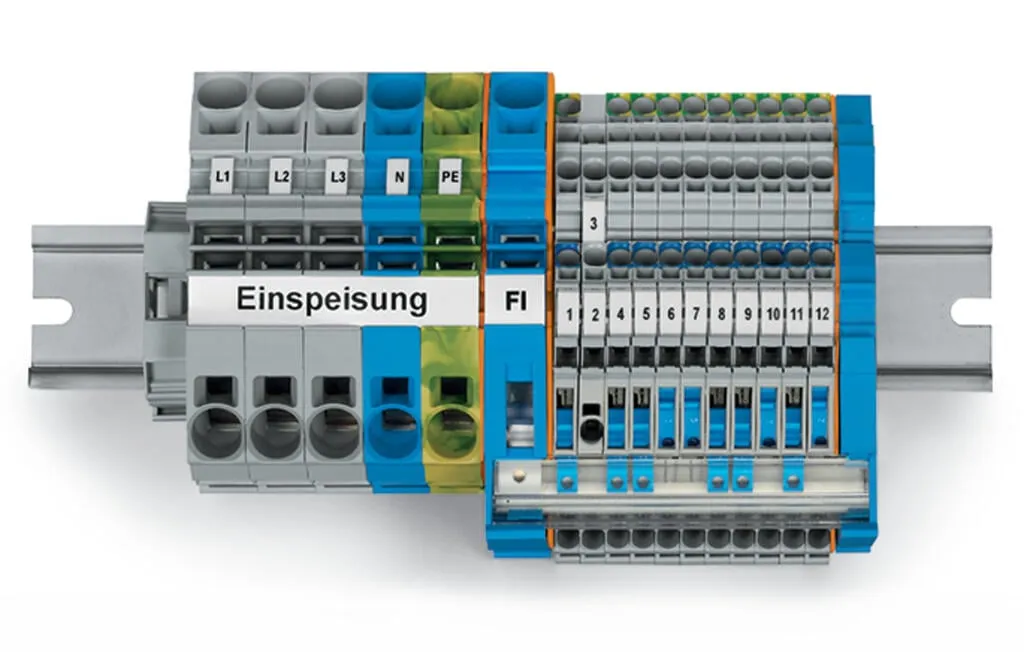

Suitable for a sub-distribution board equipped with a residual current breaker (RCB); includes all required components for wiring supply terminal blocks, as well as connecting 9 AC circuits and 1 three-phase circuitsDistribution of ground fault potentials via one 10 x 3 mm N-busbar; separation of N-potentials for insulation resistance measurement via N-disconnect slide links within the multilevel installation terminal blockContains:10 x multilevel installation terminal block; NT/L/PE; 4 mm² (2003‑7641)1 x multilevel installation terminal block; L/L; 4 mm² (2003‑7642)1 x end and intermediate plate (2003‑7692)3 x 2-conductor supply terminal block for distribution boxes; gray; 16 mm² (2016‑7601)1 x 2-conductor supply terminal block for distribution boxes; blue; 16 mm² (2016‑7604)1 x 2-conductor ground terminal block; green-yellow; 16 mm² (2016‑7607)1 x end and intermediate plate (2016‑7692)1 x 1-conductor N-disconnect terminal block; blue; 16 mm² (2016‑7714)1 x end and intermediate plate (2016‑7792)1 x screwless end stop; 10 mm wide (249‑117)1 x busbar carrier; with end stop function (2009‑305)1 x busbar; tin-plated; 0.2 m (210‑133)1 x busbar cover; transparent; 0.2 m (777‑303)1 x marking strip; white; 0.5 m (2009‑110)1 x WMB marker card; 1 … 50 (793‑5566)1 x WMB marker card; L1, L2, L3, N, PE (793‑5472)1 x felt-tip pen (210‑110)Assembly width incl. end stop: 14.95 cm
