Wago 812-141

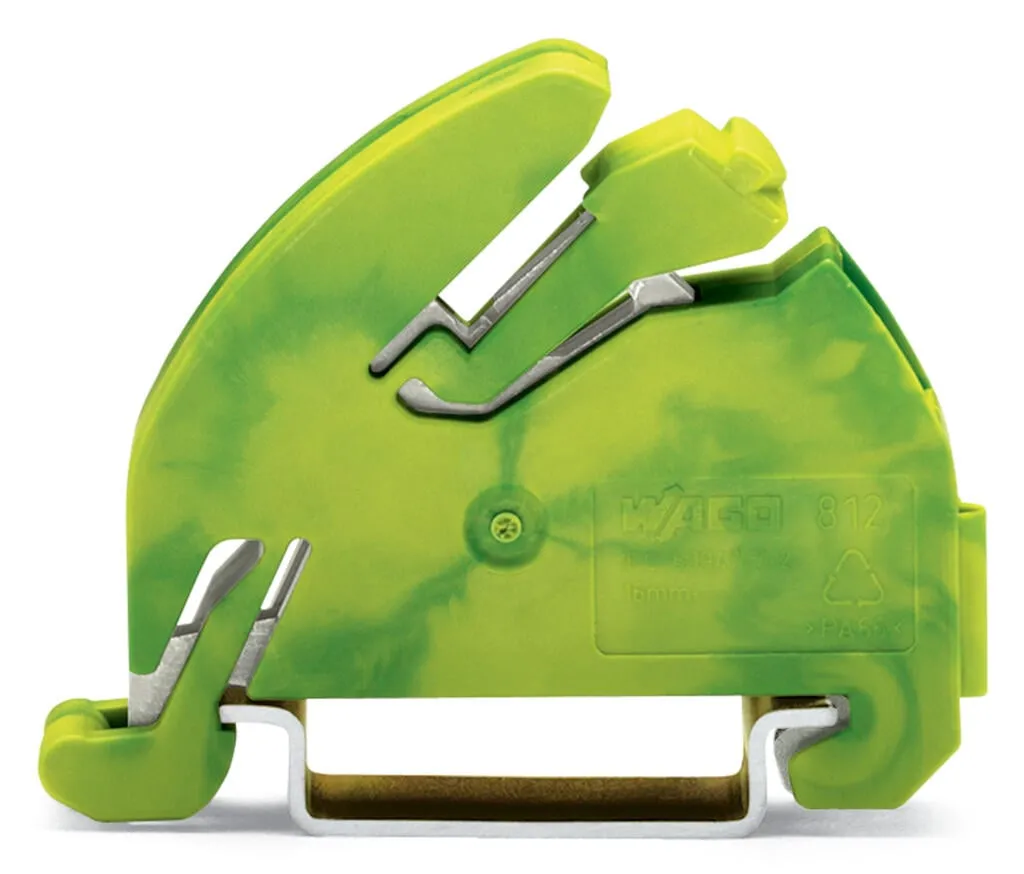

Ground busbar carrier; with contact to DIN 35 rail; green-yellow 812-141
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Ground busbar carrier; with contact to DIN 35 rail; green-yellow 812-141
Specification

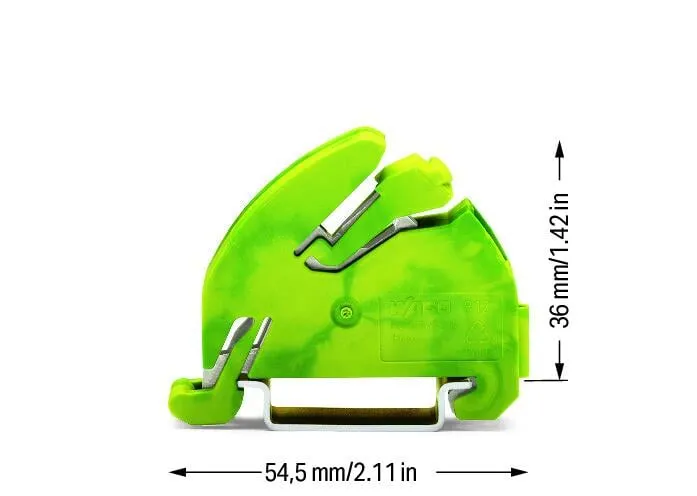

Physical data
| Width | 11 mm / 0.433 inches |
|---|---|
| Height | 54.5 mm / 2.146 inches |
| Depth from upper-edge of DIN-rail | 36 mm / 1.417 inches |
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | green-yellow |
| Material group | I |
| Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 |
| Fire load | 0.223 MJ |
| Weight | 20.7 g |
Environmental requirements
| Continuous operating temperature | -35 … +85 °C |
|---|
Commercial data
| Product Group | 12 (Matrix Patch Board) |
|---|---|
| PU (SPU) | 25 pcs |
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4044918255165 |
| Customs tariff number | 39269097900 |
Product Classification
| UNSPSC | 39121410 |
|---|---|
| eCl@ss 10.0 | 27-40-06-07 |
| eCl@ss 9.0 | 27-40-06-07 |
| ETIM 9.0 | EC001166 |
| ETIM 10.0 | EC001166 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
