Wago 812-111

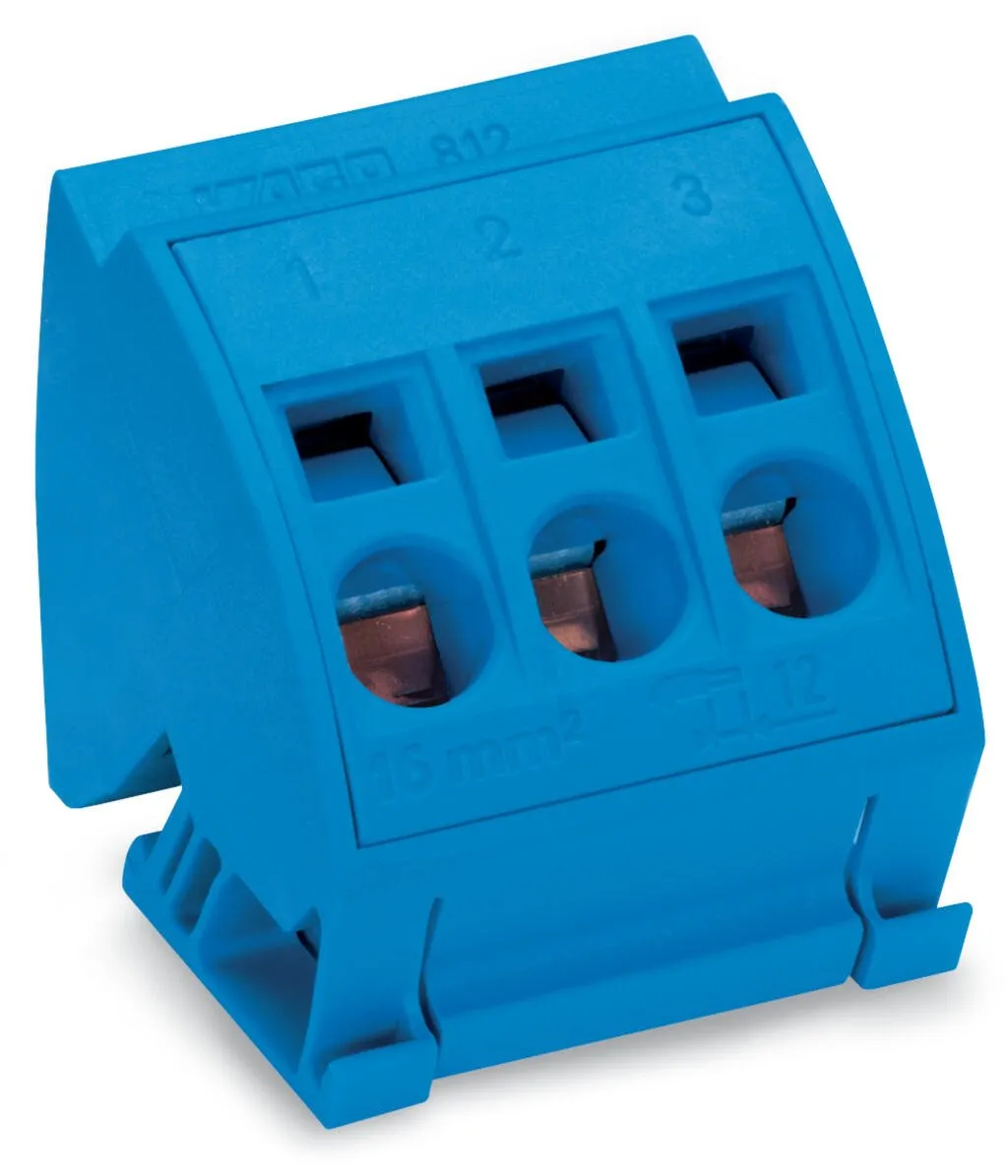

Common potential terminal block, 812 Series, CAGE CLAMP®Our common potential terminal block (item number 812-111) makes connections quick and easy. Conductors can only be connected to this common pote…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Common potential terminal block, 812 Series, CAGE CLAMP®Our common potential terminal block (item number 812-111) makes connections quick and easy. Conductors can only be connected to this common potential terminal block if their strip length is 12 mm . This product incorporates conductor terminals and utilizes CAGE CLAMP®. Our highly-rated and maintenance-free CAGE CLAMP® connection makes it easy to connect all types of conductors without having to prepare the conductor. For example, you don’t need to crimp ferrules. The dimensions are (38 x 42.5 x 43.5) mm (width x height x depth). Depending on the type of conductor, this common potential terminal block is designed for conductor cross sections ranging from 1.5 mm² to 16 mm².
Specification
Electrical data - Ratings per IEC/EN
| Nominal voltage (III/3) | 1000 V |
|---|---|
| Rated impulse withstand voltage (III / 3) | 6 kV |
| Rated current | 96 A |
| Legend (ratings) | (III / 3) ≙ Overvoltage category III / Pollution degree 3 |
Electrical data - Ratings per IEC/EN – Notes
| Rated current (note) | Current carrying capacity: With a maximum total current of 96 A, the clamping units of the busbar terminal block can be loaded with the rated current of the conductor cross-sections approved. This only applies when (10 x 3) mm busbars are used. |
|---|
Electrical data - General information
| Wiring direction | Front-entry wiring |
|---|
Connection data
| Clamping units | 3 |
|---|---|
| Total number of potentials | 1 |
| Number of levels | 1 |
Connection data - Connection 1
| Connection technology | CAGE CLAMP® |
|---|---|
| Actuation type | Operating tool |
| Connectable conductor materials | Copper |
| Solid conductor | 1.5 … 16 mm² / 14 … 6 AWG |
| Fine-stranded conductor | 1.5 … 16 mm² / 14 … 6 AWG |
| Strip length | 12 mm / 0.47 inches |
| Wiring direction | Front-entry wiring |
Physical data
| Width | 38 mm / 1.496 inches |
|---|---|
| Height | 42.5 mm / 1.673 inches |
| Depth | 43.5 mm / 1.713 inches |
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | light gray |
| Material group | I |
| Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 |
| Fire load | 0.854 MJ |
| Weight | 42.1 g |
Environmental requirements
| Continuous operating temperature | -35 … +85 °C |
|---|
Commercial data
| Product Group | 12 (Matrix Patch Board) |
|---|---|
| PU (SPU) | 12 pcs |
| Packaging type | box |
| Country of origin | PL |
| GTIN | 4045454014896 |
| Customs tariff number | 85369010000 |
Product Classification
| UNSPSC | 39121410 |
|---|---|
| eCl@ss 10.0 | 27-14-11-46 |
| eCl@ss 9.0 | 27-14-11-46 |
| ETIM 9.0 | EC000001 |
| ETIM 10.0 | EC000001 |
| ECCN | NO US CLASSIFICATION |
