Wago 812-104

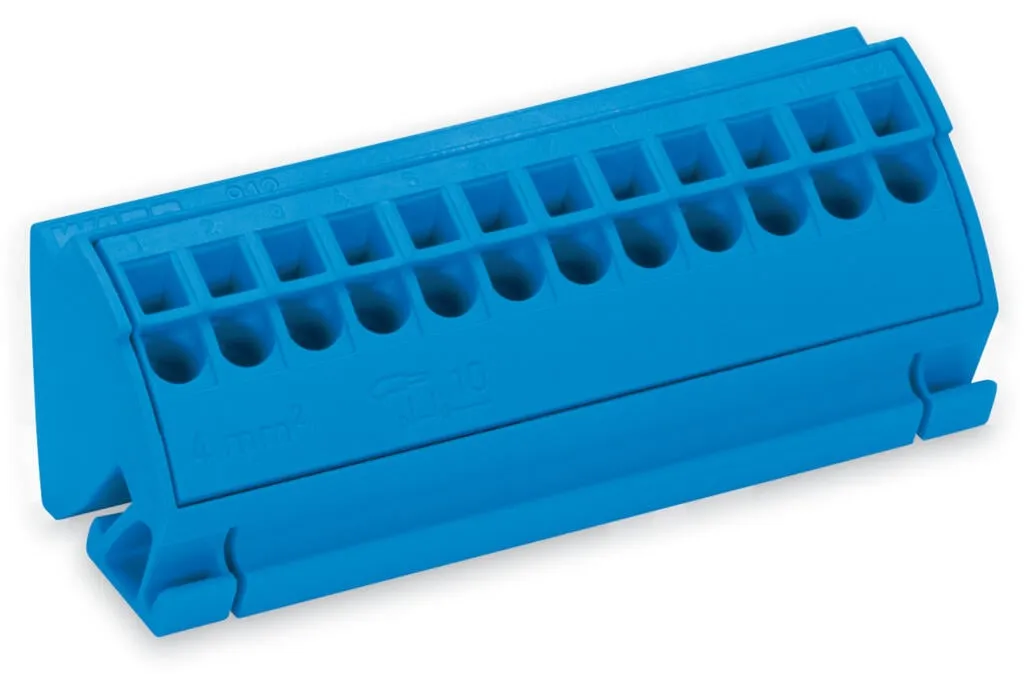

Common potential terminal block, 812 Series, operating toolQuick and easy connections are guaranteed with this common potential terminal block (item number 812-104). Conductors should only be connecte…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Common potential terminal block, 812 Series, operating toolQuick and easy connections are guaranteed with this common potential terminal block (item number 812-104). Conductors should only be connected to this common potential terminal block if their strip length is 11 mm . This product incorporates conductor terminals and utilizes Push-in CAGE CLAMP®. Push-in CAGE CLAMP® connection technology is ideal for connecting all conductor types. It allows direct insertion of both solid and fine-stranded conductors with ferrules without needing to use any tools—all thanks to its pluggable design. The item’s dimensions are (75 x 30 x 27.5) mm (width x height x depth). Depending on the type of conductor, this common potential terminal block is ideal for conductor cross sections ranging from 0.5 mm² to 4 mm².
Specification
Electrical data - Ratings per IEC/EN
| Nominal voltage (III/3) | 1000 V |
|---|---|
| Rated impulse withstand voltage (III / 3) | 6 kV |
| Rated current | 96 A |
| Legend (ratings) | (III / 3) ≙ Overvoltage category III / Pollution degree 3 |
Electrical data - Ratings per IEC/EN – Notes
| Rated current (note) | Current carrying capacity: With a maximum total current of 96 A, the clamping units of the busbar terminal block can be loaded with the rated current of the conductor cross-sections approved. This only applies when (10 x 3) mm busbars are used. |
|---|
Electrical data - General information
| Wiring direction | Front-entry wiring |
|---|
Connection data
| Clamping units | 12 |
|---|---|
| Total number of potentials | 1 |
| Number of levels | 1 |
Connection data - Connection 1
| Connection technology | Push-in CAGE CLAMP® |
|---|---|
| Actuation type | Operating tool |
| Connectable conductor materials | Copper |
| Solid conductor | 0.5 … 4 mm² / 20 … 12 AWG |
| Solid conductor; push-in termination | 0.5 … 4 mm² / 20 … 12 AWG |
| Stranded conductor | 0.5 … 4 mm² / 20 … 12 AWG |
| Fine-stranded conductor | 0.5 … 4 mm² / 20 … 12 AWG |
| Strip length | 11 mm / 0.43 inches |
| Wiring direction | Front-entry wiring |
Physical data

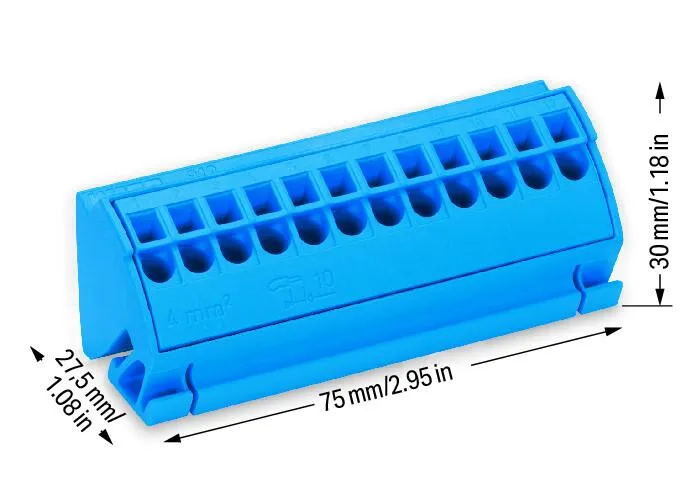

| Width | 75 mm / 2.953 inches |
|---|---|
| Height | 30 mm / 1.181 inches |
| Depth | 27.5 mm / 1.083 inches |
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | blue |
| Material group | I |
| Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 |
| Fire load | 0.712 MJ |
| Weight | 35.7 g |
Environmental requirements
| Continuous operating temperature | -35 … +85 °C |
|---|
Commercial data
| Product Group | 12 (Matrix Patch Board) |
|---|---|
| PU (SPU) | 10 pcs |
| Packaging type | box |
| Country of origin | PL |
| GTIN | 4044918253291 |
| Customs tariff number | 85369010000 |
Product Classification
| UNSPSC | 39121410 |
|---|---|
| eCl@ss 10.0 | 27-14-11-46 |
| eCl@ss 9.0 | 27-14-11-46 |
| ETIM 9.0 | EC000001 |
| ETIM 10.0 | EC000001 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
