Wago 794-4615

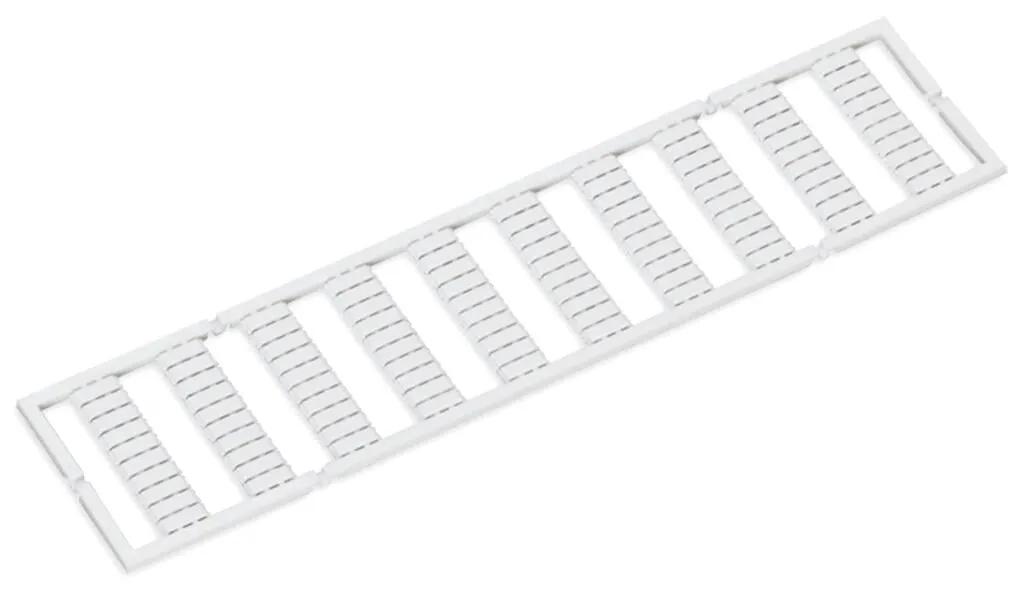

WMB marking card; as card; MARKED; F1, …, F10 (10x); stretchable 4 – 4.2 mm; Vertical marking; snap-on type; white 794-4615
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
WMB marking card; as card; MARKED; F1, …, F10 (10x); stretchable 4 – 4.2 mm; Vertical marking; snap-on type; white 794-4615
Specification
Technical data
| Suitable | for fuse terminal blocks (281-6xx) |
|---|---|
| Marking method | Thermal transfer |
| Marking | F1, …, F10 |
| Marking (number) | 10 |
| Marking direction | Vertical marking |
| Marking color | black |
| Marking type | Symbol |
| Marking layout | Consecutive symbols each strip |
| Delivery form | Marker card |
| Delivery form configuration | 10 strips with 10 markers per card |
| Flammability class per UL94 | V2 |
Physical data
| Marker/strip width | 4 … 4.2 mm |
|---|---|
| Marker width | 4 mm |
Mechanical data
| Smear resistance | EN 60998-1:2004 |
|---|
Material data
| Color | white |
|---|---|
| UV resistance | EN 60068-2-5:2010 Procedure B |
| Halogen-free | Yes |
| Weight | 7.2 g |
| Fire load | 0.214 MJ |
Commercial data
| Product Group | 2 (Terminal Block Accessories) |
|---|---|
| PU (SPU) | 50 (5) pcs |
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4045454289010 |
| Customs tariff number | 49119900000 |
Product Classification
| UNSPSC | 39131505 |
|---|---|
| eCl@ss 10.0 | 27-14-11-37 |
| eCl@ss 9.0 | 27-14-11-37 |
| ETIM 9.0 | EC000761 |
| ETIM 10.0 | EC000761 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
