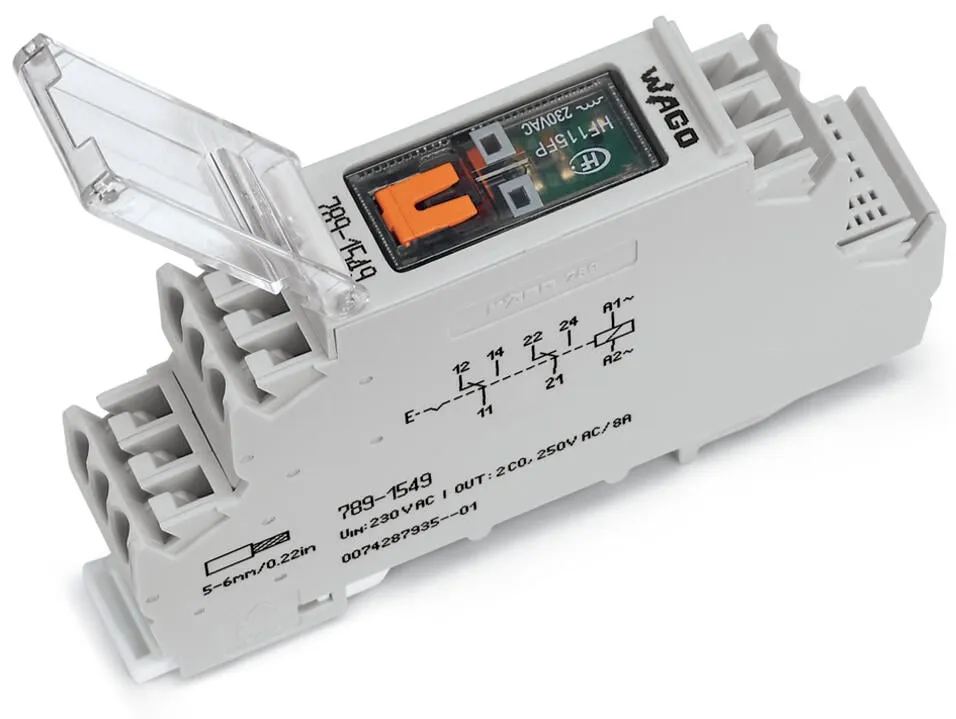

Wago 789-1549
Relay module; Nominal input voltage: 230 VAC; 2 changeover contacts; Limiting continuous current: 8 A; with manual operation; Red status indicator; Module width: 18 mm; 2,50 mm² 789-1549
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Relay module; Nominal input voltage: 230 VAC; 2 changeover contacts; Limiting continuous current: 8 A; with manual operation; Red status indicator; Module width: 18 mm; 2,50 mm² 789-1549
Specification
Notes
| Note | To protect the relay coils and contacts, inductive loads must be dampened with an effective protection circuit. |
|---|
Technical data - Control circuit
| Nominal input voltage U<sub>N</sub> | 230 VAC |
|---|---|
| Input voltage range | ±10 % |
| Nominal input current at U<sub>N</sub> | 4 mA |
Technical data - Load circuit
| Number of changeover/switchover contacts | 2 |
|---|---|
| Contact material (relay) | AgNi |
| Limiting continuous current | 8 A |
| Inrush current (resistive) max. | (AC) 16 A / 0.02 s; (AC) 12 A / 4 s |
| Switching Voltage, Max. | 250 VAC |

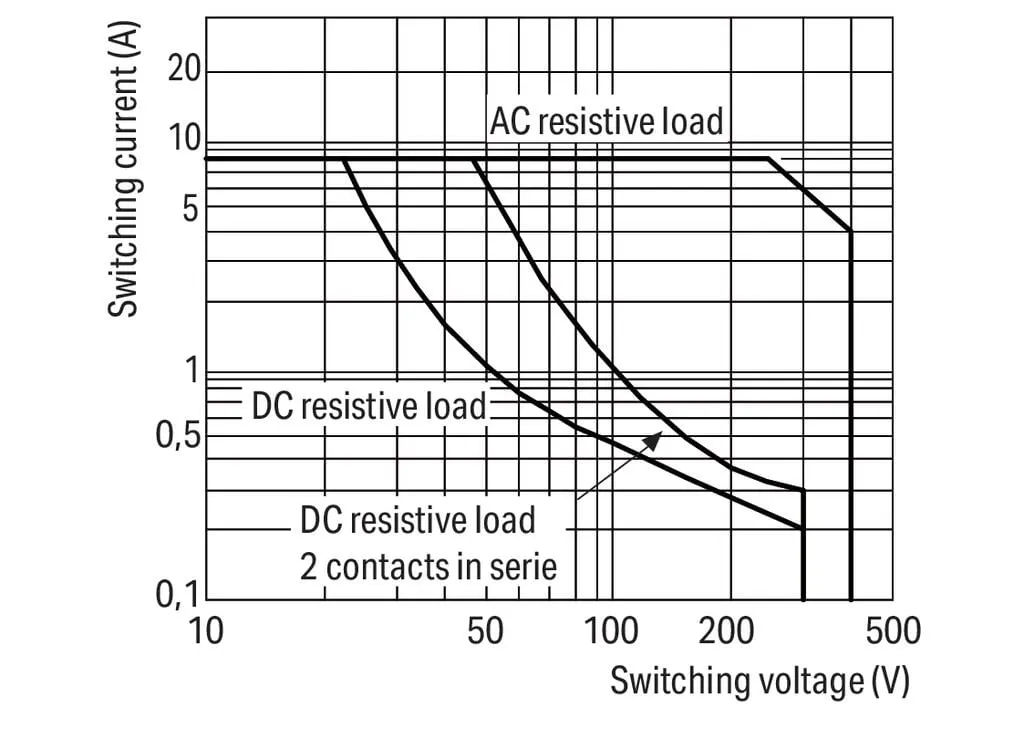

| Switching power (resistive) max. | AC 2000 VA; DC (see load limit curve) |
| Recommended minimum load | 12 V / 10 mA |
| Pull-in time (typ.) | 15 ms |
| Drop-out time (typ.) | 8 ms |
| Bounce time (typ.) | 7 ms |
| Mechanical life | 5 x 10⁶ switching operations |
Technical data - Signaling
| Status indicator | Red LED |
|---|
Safety and protection
| Rated voltage | 250 V |
|---|---|
| Rated impulse withstand voltage | 4 kV |
| Pollution degree | 2 |
| Dielectric strength (control/load circuit) (AC, 1 min) | 3.5 kVrms |
| Dielectric strength (open contact) (AC, 1 min) | 1 kVrms |
| Dielectric strength (load/load circuit) (AC, 1 min) | 1.5 kVrms |
| Protection type | IP20 |
Connection data
| Connection technology | CAGE CLAMP® |
|---|---|
| Solid conductor | 0.2 … 2.5 mm² / 24 … 14 AWG |
| Fine-stranded conductor | 0.2 … 2.5 mm² / 24 … 14 AWG |
| Strip length | 9 … 10 mm / 0.35 … 0.39 inches |
Physical data

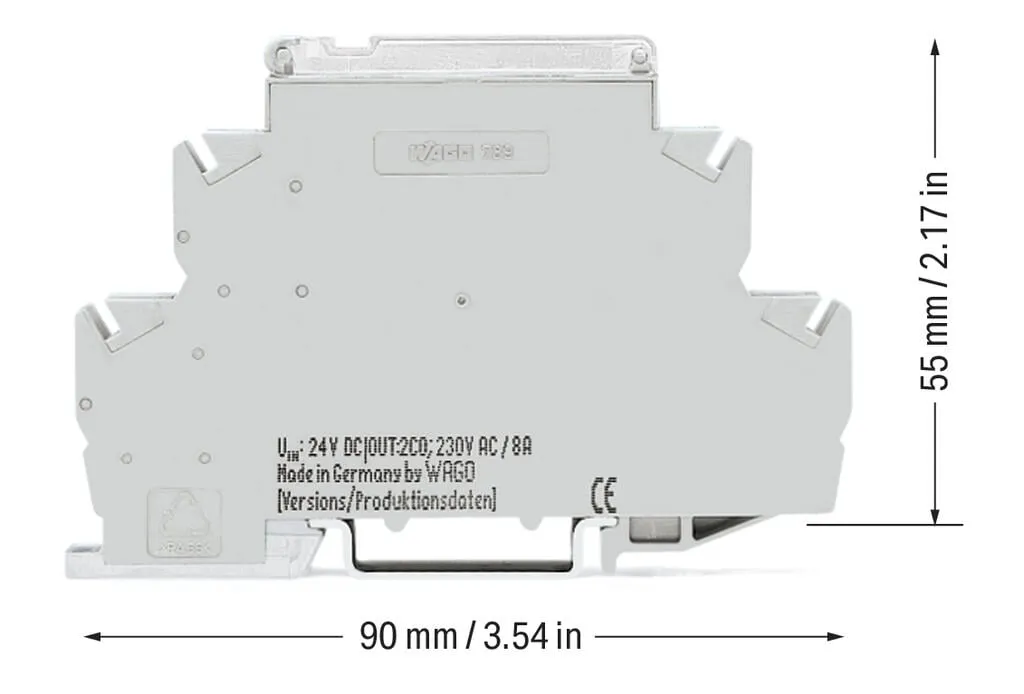

| Width | 17.5 mm / 0.689 inches |
|---|---|
| Height | 90 mm / 3.543 inches |
| Depth from upper-edge of DIN-rail | 55 mm / 2.165 inches |
Mechanical data
| Housing design | DIN-rail-mount enclosure |
|---|---|
| Mounting type | DIN-35 rail |
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Fire load | 2.948 MJ |
| Weight | 59.5 g |
Environmental requirements
| Ambient temperature (operation at U<sub>N</sub>) | -25 … +50 °C |
|---|---|
| Ambient temperature (storage) | -40 … +70 °C |
| Processing temperature | -25 … +50 °C |
Standards and specifications
| Standards/specifications | EN 60664-1 |
|---|
Commercial data
| Product Group | 6 (INTERFACE ELECTRONIC) |
|---|---|
| PU (SPU) | 10 (1) pcs |
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4050821386797 |
| Customs tariff number | 85364900990 |
Product Classification
| UNSPSC | 39122334 |
|---|---|
| eCl@ss 10.0 | 27-14-23-09 |
| eCl@ss 9.0 | 27-14-23-09 |
| ETIM 9.0 | EC001437 |
| ETIM 10.0 | EC001437 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
