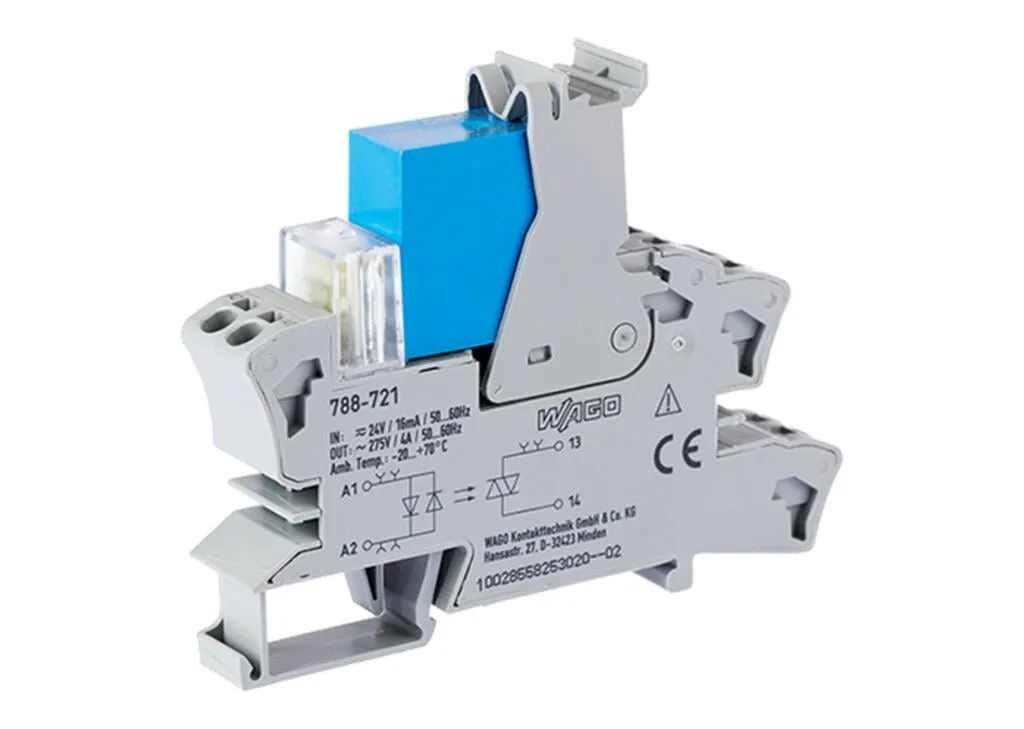

Wago 788-721
Solid-state relay module; Nominal input voltage: 24 V AC/DC; Output voltage range: 24 … 230 VAC; Limiting continuous current: 4 A; 2-wire connection; zero-cross switching; Red status indicator; Module…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Solid-state relay module; Nominal input voltage: 24 V AC/DC; Output voltage range: 24 … 230 VAC; Limiting continuous current: 4 A; 2-wire connection; zero-cross switching; Red status indicator; Module width: 15 mm; gray 788-721
Specification
Notes
| Note | A separator plate (e.g., 209-191) must be used for voltages exceeding 250 V between adjacent relay modules and to comply with reinforced insulation requirements. |
|---|

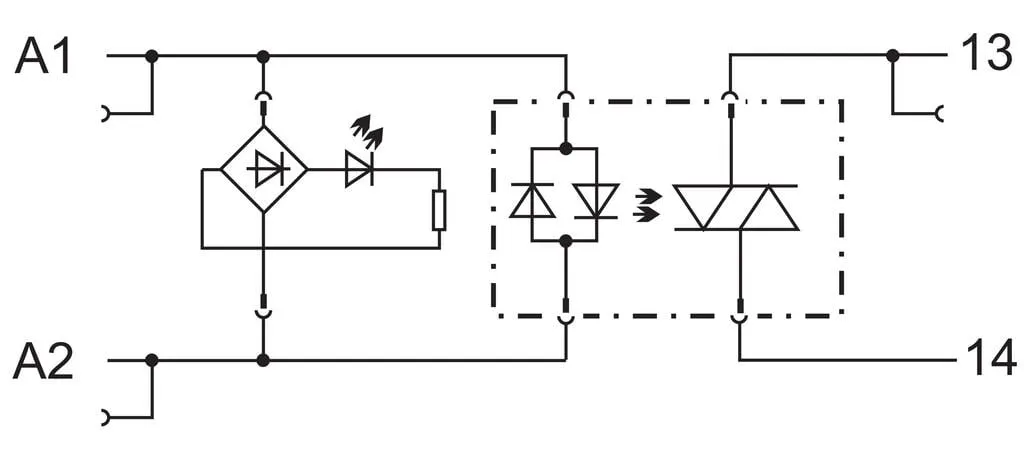

Technical data - Control circuit
| Nominal input voltage U<sub>N</sub> | 24 VAC/VDC |
|---|---|
| Input voltage range (low level) | 0 … 2.5 VAC/VDC |
| Input voltage range (high level) | 15 … 30 VAC/DC |
| Nominal input current at U<sub>N</sub> | 10 mA |
Technical data - Load circuit

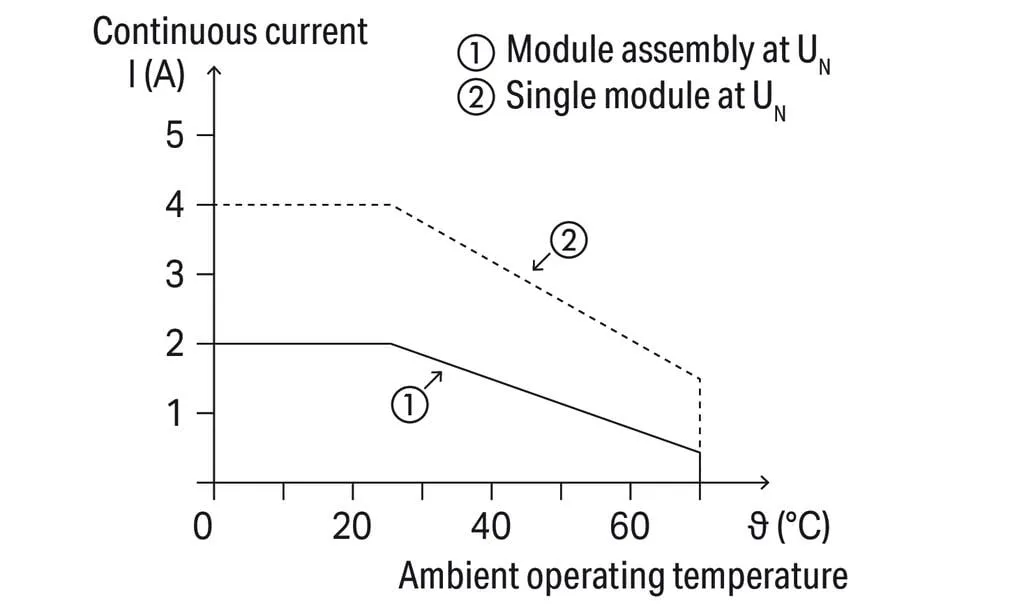

| Circuit type | 2-wire connection, Zero-voltage switching |
|---|---|
| Limiting continuous current | 4 A |
| Nominal output voltage | 230 VAC |
| Output voltage range | 12 … 275 VAC (50/60 Hz) |
| Voltage drop | ≤ 1.1 VAC |
| Turn-on time | ≤ 10 ms |
| Turn-off time | ≤ 10 ms |
| Switching frequency | 50 Hz / 60 Hz |
Technical data - Signaling
| Status indicator | Red LED |
|---|
Safety and protection
| Pollution degree | 2 |
|---|---|
| Dielectric strength (control/load circuit) (AC, 1 min) | 4 kVrms |
| Protection type | IP20 |
Connection data
| Connection technology | Push-in CAGE CLAMP® |
|---|---|
| Solid conductor | 0.34 … 2.5 mm² / 22 … 14 AWG |
| Fine-stranded conductor | 0.34 … 2.5 mm² / 22 … 14 AWG |
| Strip length | 9 … 10 mm / 0.35 … 0.39 inches |

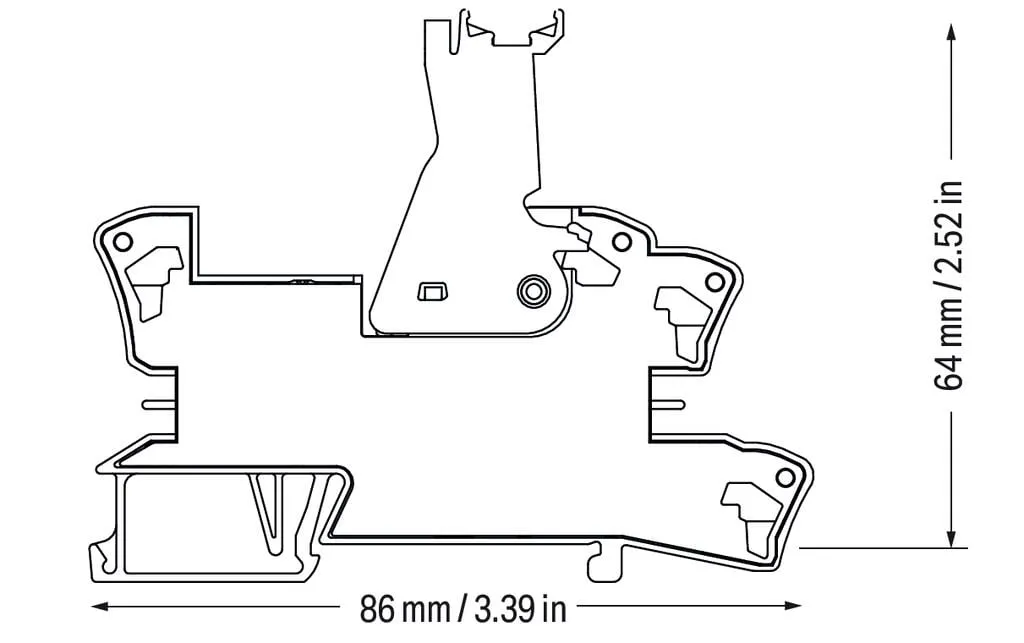

Physical data
| Width | 15 mm / 0.591 inches |
|---|---|
| Height | 86 mm / 3.386 inches |
| Depth from upper-edge of DIN-rail | 64 mm / 2.52 inches |
Mechanical data
| Mounting type | DIN-35 rail |
|---|
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | gray |
| Fire load | 0.676 MJ |
| Weight | 49.4 g |
Environmental requirements
| Ambient temperature (operation at U<sub>N</sub>) | -20 … +70 °C |
|---|---|
| Ambient temperature UL (operation at U<sub>N</sub>) | -20 … +40 °C |
| Ambient temperature (storage) | -40 … +70 °C |
| Processing temperature | -25 … +50 °C |
| Temperature range of connection cable | ≥ (Tambient + 20 K) |
Standards and specifications
| Standards/specifications | EN 61000-6-2, EN 61000-6-3, EN 61373, EN 61010-2-201, UL 508 (max. 40 °C / 2.5 A) |
|---|
Commercial data
| Product Group | 6 (INTERFACE ELECTRONIC) |
|---|---|
| PU (SPU) | 15 (1) pcs |
| Packaging type | Box |
| Country of origin | DE |
| GTIN | 4045454945961 |
| Customs tariff number | 85365005000 |
Product Classification
| UNSPSC | 39122334 |
|---|---|
| eCl@ss 10.0 | 27-26-15-03 |
| eCl@ss 9.0 | 27-26-15-03 |
| ETIM 9.0 | EC001504 |
| ETIM 10.0 | EC001504 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 7439-92-1 |
|---|---|
| REACH Candidate List Substance | Lead |
| RoHS Compliance Status | Compliant,No Exemption |
