Wago 788-356

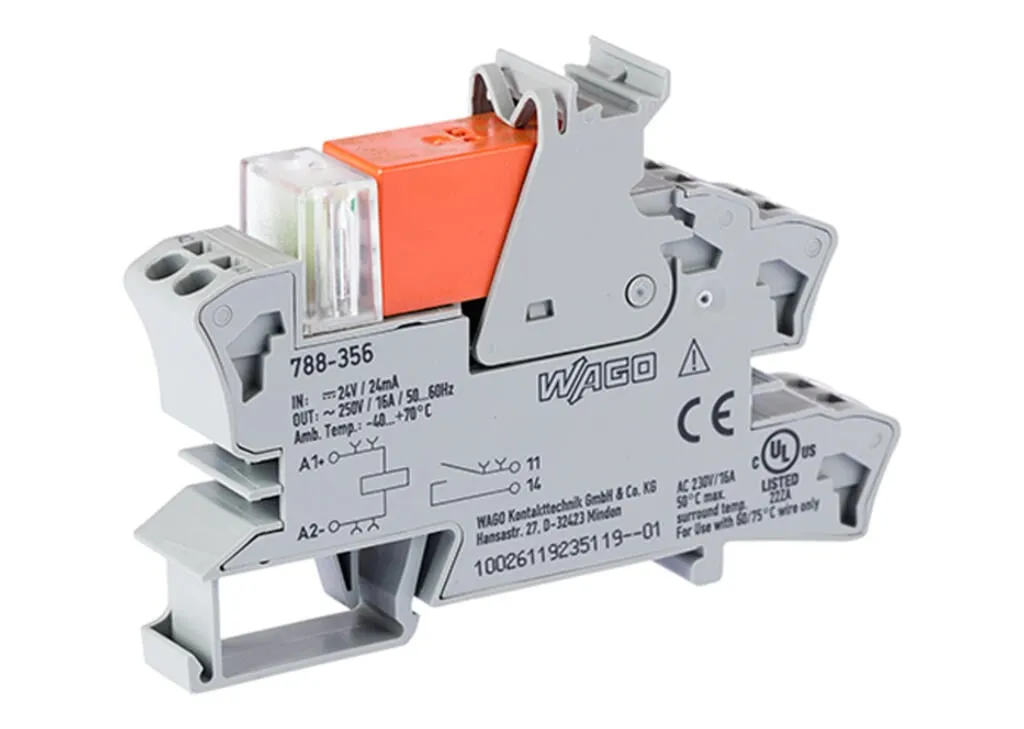

Relay module; Nominal input voltage: 24 VDC; 1 make contact; Limiting continuous current: 16 A; for lamp loads; Red status indicator; Module width: 15 mm 788-356
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Relay module; Nominal input voltage: 24 VDC; 1 make contact; Limiting continuous current: 16 A; for lamp loads; Red status indicator; Module width: 15 mm 788-356
Specification
Notes
| Safety Information | A separator plate (e.g., 209-191) must be used for voltages exceeding 250 V between adjacent relay modules and to comply with reinforced insulation requirements. |
|---|---|
| Note | Reinforced insulation between coil and contacts, To protect the relay coils and contacts, inductive loads must be dampened with an effective protection circuit. |
Technical data - Control circuit
| Nominal input voltage U<sub>N</sub> | 24 VDC |
|---|---|
| Input voltage range | -15 … +20 % |
| Nominal input current at U<sub>N</sub> | 19 mA |
Technical data - Load circuit
| Number of make/switch-on contacts | 1 |
|---|---|
| Contact material (relay) | AgSnO2 |

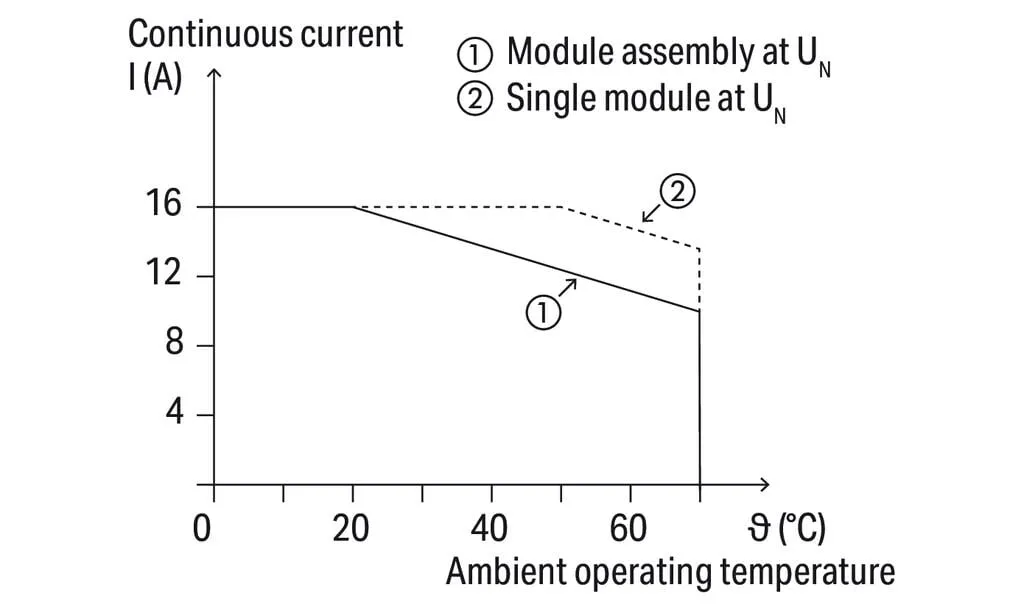

| Limiting continuous current | 16 A |
| Inrush current (resistive) max. | (AC) 80 A / 0.02 s; (AC) 30 A / 4 s |
| Switching Voltage, Max. | 250 VAC |

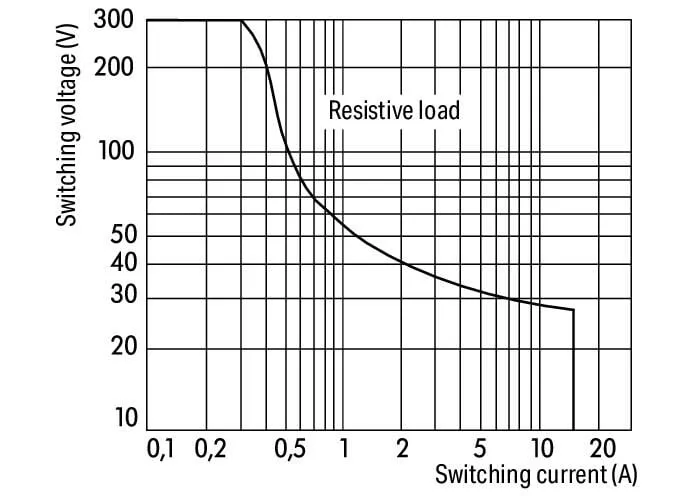

| Switching power (resistive) max. | AC 4000 VA; DC (see load limit curve) |
| Recommended minimum load | 12 V / 100 mA |
| Pull-in time (typ.) | 9 ms |
| Drop-out time (typ.) | 6 ms |
| Bounce time (typ.) | 3 ms |
| Electrical life (NO; resistive load; 23 °C) | 50 x 10³ switching operations |
| Mechanical life | 30 x 10⁶ switching operations |
Technical data - Signaling
| Status indicator | Red LED |
|---|
Safety and protection
| Rated voltage | 250 V |
|---|---|
| Rated impulse withstand voltage | 4 kV |
| Pollution degree | 3 |
| Dielectric strength (control/load circuit) (AC, 1 min) | 5 kVrms |
| Dielectric strength (open contact) (AC, 1 min) | 1 kVrms |
| Safety Information | A separator plate (e.g., 209-191) must be used for voltages exceeding 250 V between adjacent relay modules and to comply with reinforced insulation requirements. |
| Protection type | IP20 |
Connection data
| Connection technology | Push-in CAGE CLAMP® |
|---|---|
| Solid conductor | 0.34 … 2.5 mm² / 22 … 14 AWG |
| Fine-stranded conductor | 0.34 … 2.5 mm² / 22 … 14 AWG |
| Strip length | 9 … 10 mm / 0.35 … 0.39 inches |
Physical data
| Width | 15 mm / 0.591 inches |
|---|---|
| Height | 86 mm / 3.386 inches |
| Depth from upper-edge of DIN-rail | 54 mm / 2.126 inches |
Mechanical data
| Mounting type | DIN-35 rail |
|---|
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Fire load | 0.672 MJ |
| Weight | 46.8 g |
Environmental requirements
| Ambient temperature (operation at U<sub>N</sub>) | -40 … +70 °C |
|---|---|
| Ambient temperature UL (operation at U<sub>N</sub>) | -40 … +50 °C |
| Ambient temperature (storage) | -40 … +70 °C |
| Processing temperature | -25 … +50 °C |
| Temperature range of connection cable | ≥ (Tambient + 20 K) |
Standards and specifications
| Standards/specifications | EN 61010-2-201, EN 61810-1, EN 61373, UL 508 (max. 10 A) |
|---|
Commercial data
| Product Group | 6 (INTERFACE ELECTRONIC) |
|---|---|
| PU (SPU) | 20 (1) pcs |
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4045454540753 |
| Customs tariff number | 85364900990 |
Product Classification
| UNSPSC | 39122334 |
|---|---|
| eCl@ss 10.0 | 27-37-16-01 |
| eCl@ss 9.0 | 27-37-16-01 |
| ETIM 9.0 | EC001437 |
| ETIM 10.0 | EC001437 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 7439-92-1, 7440-43-9 |
|---|---|
| REACH Candidate List Substance | Cadmium, Lead |
| RoHS Compliance Status | Compliant,No Exemption |
| SCIP notification number (Austria) | 7e591974-8dba-4ba8-8ca0-9dda0b95a819 |
| SCIP notification number (Belgium) | ca5acbce-b99f-4cb3-83d0-0c4a3e2c04f2 |
| SCIP notification number (Bulgaria) | fd67ed12-c400-44d5-a4e6-2e42cfaf9d09 |
| SCIP notification number (Czech Republic) | 73983201-3dbc-430d-8f75-315c355961a7 |
| SCIP notification number (Denmark) | e8d45790-4763-4997-8e87-511ac9ef67d0 |
| SCIP notification number (Finland) | 998a844a-32cf-4082-b586-f3075cbb09dc |
| SCIP notification number (France) | d8ba4b8a-9ce5-4d9c-bf7d-f069843ba7a8 |
| SCIP notification number (Germany) | c024b1eb-9e7e-4260-8c48-4156cab4e861 |
| SCIP notification number (Hungary) | 02a11653-1d32-4f04-a59f-7f06f0715e98 |
| SCIP notification number (Italy) | 859dc1de-f7c8-47b9-91a0-918ed2f794f8 |
| SCIP notification number (Netherlands) | 3766f2ee-d2ce-43d7-8404-5a816fd80322 |
| SCIP notification number (Poland) | c2f389e8-c589-4a09-b3ff-cc8b0798d4a5 |
| SCIP notification number (Romania) | 5b4d7c2c-d0eb-4aeb-bc3c-fa113239040f |
| SCIP notification number (Sweden) | 1646e8de-423a-4ffc-83eb-1e2657ec6e0a |
