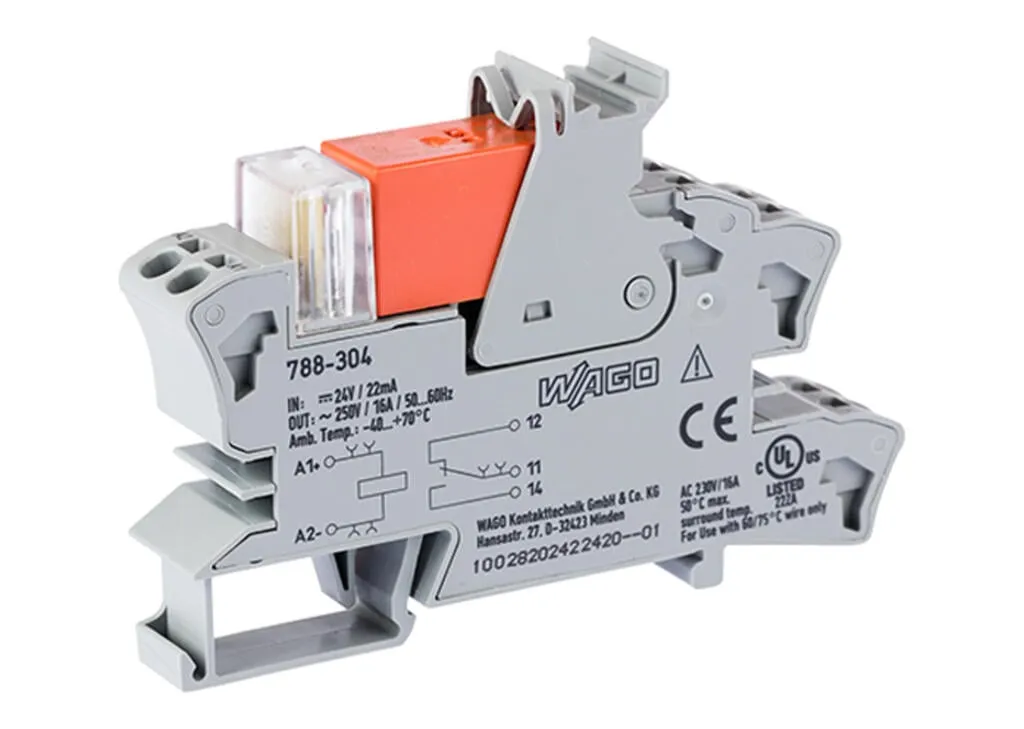

Wago 788-304
Relay module; Nominal input voltage: 24 VDC; 1 changeover contact; Limiting continuous current: 16 A; Red status indicator; Module width: 15 mm; 2,50 mm²; gray 788-304
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Relay module; Nominal input voltage: 24 VDC; 1 changeover contact; Limiting continuous current: 16 A; Red status indicator; Module width: 15 mm; 2,50 mm²; gray 788-304
Specification
Notes
| Safety Information | A separator plate (e.g., 209-191) must be used for voltages exceeding 250 V between adjacent relay modules and to comply with reinforced insulation requirements. |
|---|---|
| Note | Reinforced insulation between coil and contacts, To protect the relay coils and contacts, inductive loads must be dampened with an effective protection circuit. |
Technical data - Control circuit
| Nominal input voltage U<sub>N</sub> | 24 VDC |
|---|---|
| Input voltage range | ±10 % |
| Nominal input current at U<sub>N</sub> | 19 mA |
Technical data - Load circuit
| Number of changeover/switchover contacts | 1 |
|---|---|
| Contact material (relay) | AgNi 90/10 |

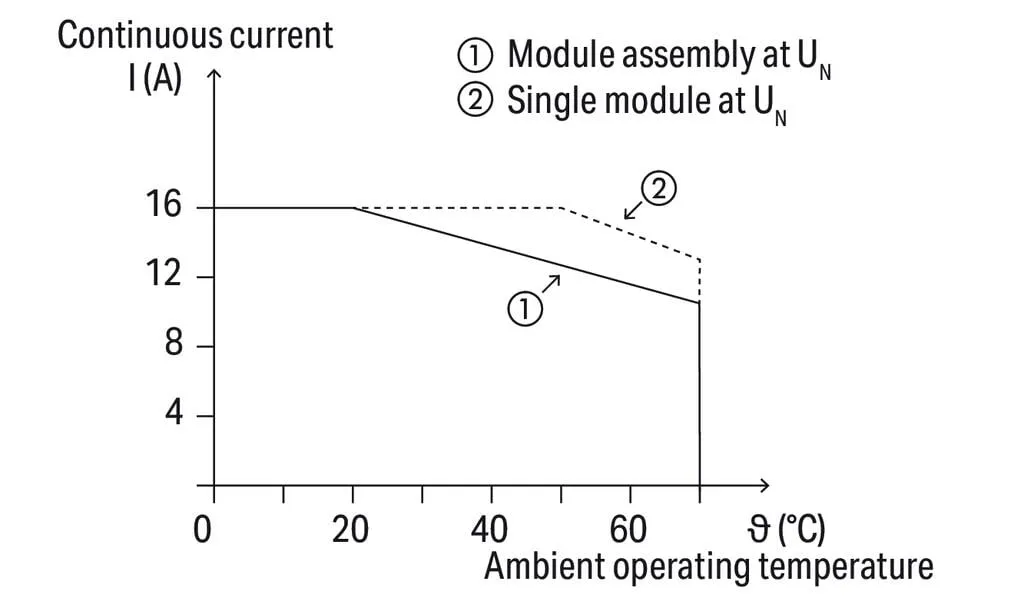

| Limiting continuous current | 16 A |
| Inrush current (resistive) max. | (AC) 30 A / 4 s |
| Switching Voltage, Max. | 250 VAC |

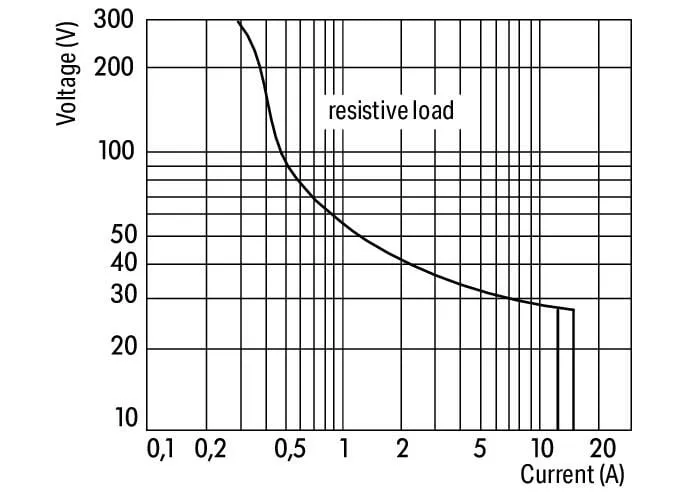

| Switching power (resistive) max. | AC 4000 VA; DC (see load limit curve) |
| Switching capacity | AC-15: 6 A / 250 VAC; DC-13: 2 A / 24 VDC |
| Recommended minimum load | 12 V / 10 mA |
| Pull-in time (typ.) | 8 ms |
| Drop-out time (typ.) | 6 ms |
| Bounce time (typ.) | 6 ms |
| Electrical life (NO; resistive load; 23 °C) | 30 x 10³ switching operations |
| Mechanical life | 30 x 10⁶ switching operations |
| Switching frequency with/without load (max.) | 6 min-1 / 1200 min-1 |
Technical data - Signaling
| Status indicator | Red LED |
|---|
Safety and protection
| Rated voltage | 250 V |
|---|---|
| Rated impulse withstand voltage | 4 kV |
| Pollution degree | 3 |
| Dielectric strength (control/load circuit) (AC, 1 min) | 5 kVrms |
| Dielectric strength (open contact) (AC, 1 min) | 1 kVrms |
| Safety Information | A separator plate (e.g., 209-191) must be used for voltages exceeding 250 V between adjacent relay modules and to comply with reinforced insulation requirements. |
| Protection type | IP20 |
Connection data
| Connection technology | Push-in CAGE CLAMP® |
|---|---|
| Solid conductor | 0.34 … 2.5 mm² / 22 … 14 AWG |
| Fine-stranded conductor | 0.34 … 2.5 mm² / 22 … 14 AWG |
| Strip length | 9 … 10 mm / 0.35 … 0.39 inches |
Physical data
| Width | 15 mm / 0.591 inches |
|---|---|
| Height | 86 mm / 3.386 inches |
| Depth from upper-edge of DIN-rail | 54 mm / 2.126 inches |
Mechanical data
| Mounting type | DIN-35 rail |
|---|
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | gray |
| Fire load | 0.92 MJ |
| Weight | 45.9 g |
Environmental requirements
| Ambient temperature (operation at U<sub>N</sub>) | -40 … +70 °C |
|---|---|
| Ambient temperature UL (operation at U<sub>N</sub>) | -40 … +50 °C |
| Ambient temperature (storage) | -40 … +70 °C |
| Processing temperature | -25 … +50 °C |
| Temperature range of connection cable | ≥ (Tambient + 20 K) |
Standards and specifications
| Standards/specifications | EN 61010-2-201, EN 61810-1, EN 61373, UL 508 (max. 10 A) |
|---|
Basic relay
| WAGO Basic Relay | 788-154 |
|---|
Commercial data
| Product Group | 6 (INTERFACE ELECTRONIC) |
|---|---|
| PU (SPU) | 20 (1) pcs |
| Packaging type | box |
| Country of origin | CN |
| GTIN | 4055143184113 |
| Customs tariff number | 85364900990 |
Product Classification
| UNSPSC | 39122334 |
|---|---|
| eCl@ss 10.0 | 27-37-16-01 |
| eCl@ss 9.0 | 27-37-16-01 |
| ETIM 9.0 | EC001437 |
| ETIM 10.0 | EC001437 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|---|
| SCIP notification number (Austria) | 84ae7b9f-3fe5-4da9-9731-c89b39422f3e |
| SCIP notification number (Belgium) | 162bfd49-de13-43b9-abc4-68173c689386 |
| SCIP notification number (Bulgaria) | 2a4fbf75-e73d-443c-b5b9-dffcf28501cd |
| SCIP notification number (Czech Republic) | cd025afe-2a02-4a21-bc80-bcaeb91ff082 |
| SCIP notification number (Denmark) | ac5d1b6f-9680-4651-98af-86c04d78ab67 |
| SCIP notification number (Finland) | 85fa947a-6a38-4d85-90dc-4c12aecd5137 |
| SCIP notification number (France) | 5cf9e1db-eef0-4269-b4a6-7376973f581e |
| SCIP notification number (Germany) | cedcf22f-3718-4ebf-a376-4488406c01d6 |
| SCIP notification number (Hungary) | f211f016-224b-4f18-9217-e87c0676401a |
| SCIP notification number (Italy) | 203e48c6-de1b-4349-b952-1c69055eee16 |
| SCIP notification number (Netherlands) | 382a1d8e-79e5-4426-9fcd-4c35748754e4 |
| SCIP notification number (Poland) | 9a8d598b-7e0b-43ea-b5a3-09a5a851620a |
| SCIP notification number (Romania) | 985e8d7f-acb8-4cf2-afc8-6b464f4db8e7 |
| SCIP notification number (Sweden) | ca754066-af24-4b2e-9d81-e882de52b25c |
