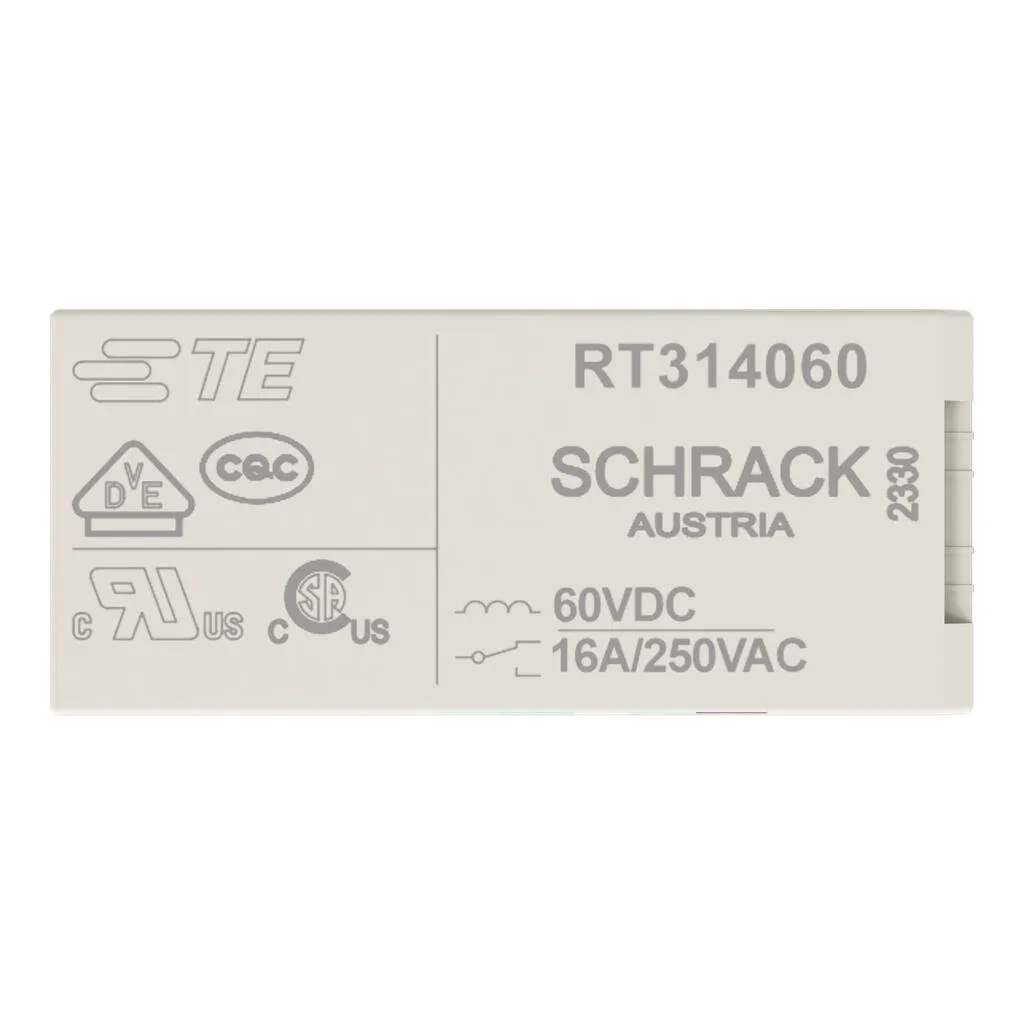

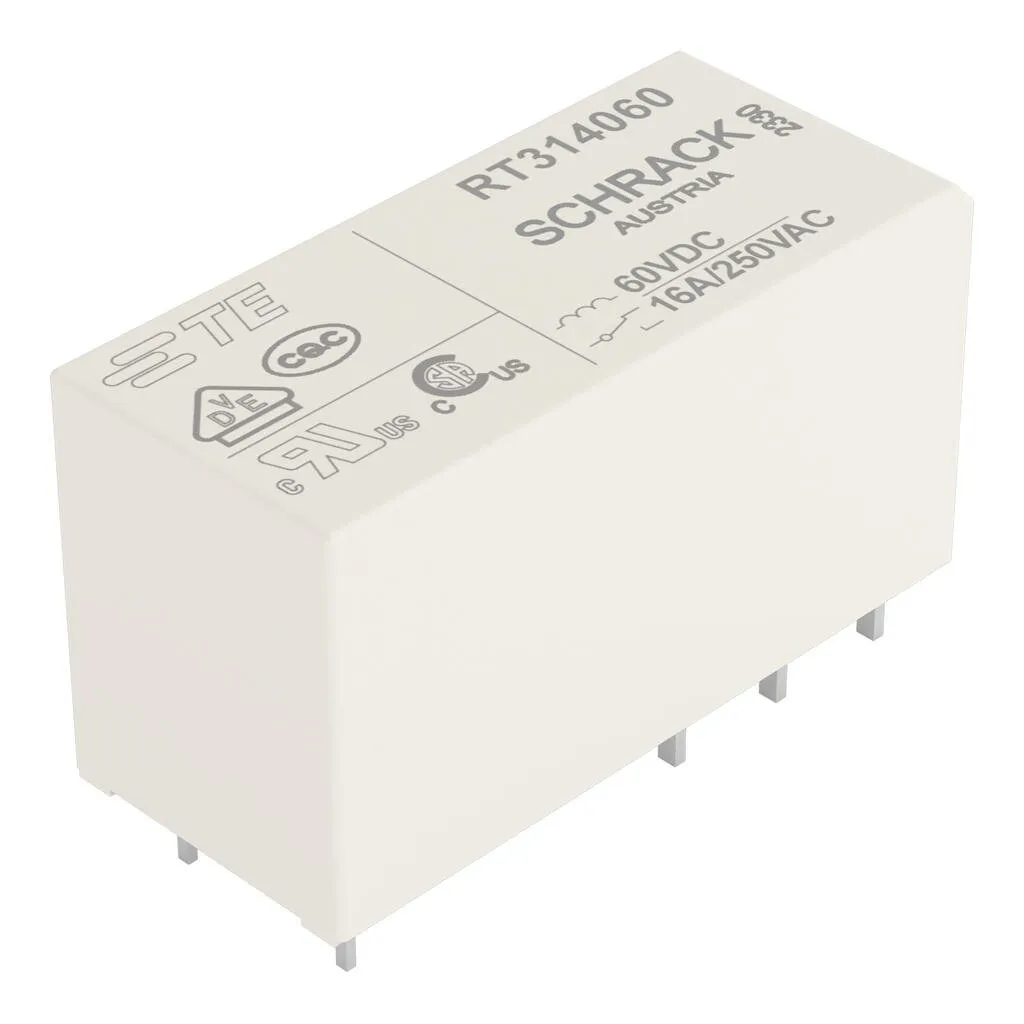

Wago 788-162
Basic relay; Nominal input voltage: 60 VDC; 1 changeover contact; Limiting continuous current: 16 A; Module width: 13 mm; Module height: 15 mm 788-162
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Basic relay; Nominal input voltage: 60 VDC; 1 changeover contact; Limiting continuous current: 16 A; Module width: 13 mm; Module height: 15 mm 788-162
Specification
Technical data - Control circuit
| Nominal input voltage U<sub>N</sub> | 60 VDC |
|---|---|
| Nominal input current at U<sub>N</sub> | 7 mA |
Technical data - Load circuit
| Number of changeover/switchover contacts | 1 |
|---|---|
| Contact material (relay) | AgNi 90/10 |
| Limiting continuous current | 16 A |
| Inrush current (resistive) max. | (AC) 30 A / 4 s |
| Switching Voltage, Max. | 250 VAC |

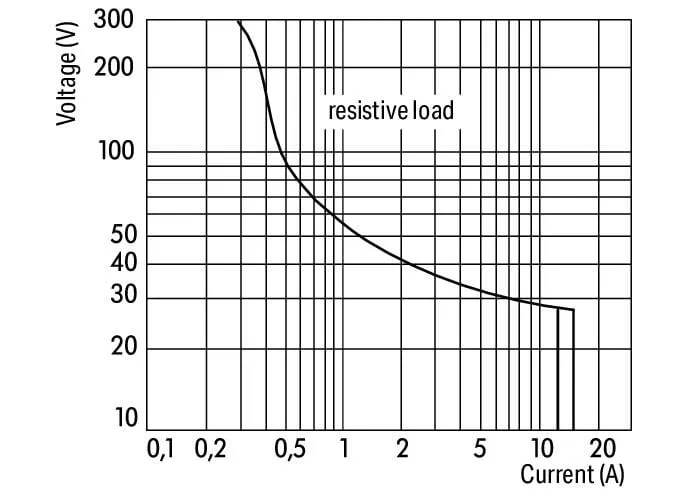

| Switching power (resistive) max. | AC 4000 VA; DC (see load limit curve) |
| Switching capacity | AC-15: 6 A / 250 VAC; DC-13: 2 A / 24 VDC |
| Recommended minimum load | 12 V / 10 mA |
| Pull-in time (typ.) | 8 ms |
| Drop-out time (typ.) | 6 ms |
| Bounce time (typ.) | 6 ms |
| Electrical life (NO; resistive load; 23 °C) | 30 x 10³ switching operations |
| Mechanical life | 30 x 10⁶ switching operations |
| Switching frequency with/without load (max.) | 6 min-1 / 1200 min-1 |
Safety and protection
| Dielectric strength (control/load circuit) (AC, 1 min) | 5 kVrms |
|---|---|
| Dielectric strength (open contact) (AC, 1 min) | 1 kVrms |
| Protection type | IP40 |
Physical data
| Width | 12.7 mm / 0.5 inches |
|---|---|
| Height from the surface | 15.7 mm / 0.618 inches |
| Depth | 29 mm / 1.142 inches |
Mechanical data
| Mounting type | Pluggable module |
|---|
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Weight | 14 g |
Environmental requirements
| Ambient temperature (operation at U<sub>N</sub>) | -40 … +85 °C |
|---|---|
| Ambient temperature (storage) | -40 … +85 °C |
Standards and specifications
| Standards/specifications | EN 61810-1 |
|---|
Commercial data
| Product Group | 6 (INTERFACE ELECTRONIC) |
|---|---|
| PU (SPU) | 20 pcs |
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4050821867807 |
| Customs tariff number | 85364900990 |
Product Classification
| UNSPSC | 39122334 |
|---|---|
| eCl@ss 10.0 | 27-37-16-01 |
| eCl@ss 9.0 | 27-37-16-01 |
| ETIM 9.0 | EC001437 |
| ETIM 10.0 | EC001437 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|---|
| SCIP notification number (Austria) | 3cd7ab33-9693-40da-a9e1-0e07b52c0b35 |
| SCIP notification number (Belgium) | 14788223-913f-48ec-8482-682949cb453b |
| SCIP notification number (Bulgaria) | cc5bebd4-76b3-48bf-a5d3-9ae21e355124 |
| SCIP notification number (Czech Republic) | bbca34f5-b34c-47da-b7f5-50ac07f7bf52 |
| SCIP notification number (Denmark) | e8bd8693-94ff-4bfb-ab89-86c40e6c36a2 |
| SCIP notification number (Finland) | c463d99b-7a56-4604-98db-5fb2014ac036 |
| SCIP notification number (France) | 3bdd176d-babc-4d8b-9983-210569a004c5 |
| SCIP notification number (Germany) | 2e12352c-05c5-452b-9d2e-6e2c35acf16c |
| SCIP notification number (Hungary) | f654943a-41ae-4aa7-aab5-5527abf82b4e |
| SCIP notification number (Italy) | a3eb03fe-2fe7-412e-9265-ba16c8ab1b3e |
| SCIP notification number (Netherlands) | 0daccd13-e07a-4781-8d83-ec800fdea8a8 |
| SCIP notification number (Poland) | e18dc124-9cfc-4155-bfe9-c6799c987319 |
| SCIP notification number (Romania) | adb4c2e5-ec15-431c-8ab9-74b5fc5ac280 |
| SCIP notification number (Sweden) | 6e9f6a67-73be-4963-99e8-6fb48dd47b75 |
