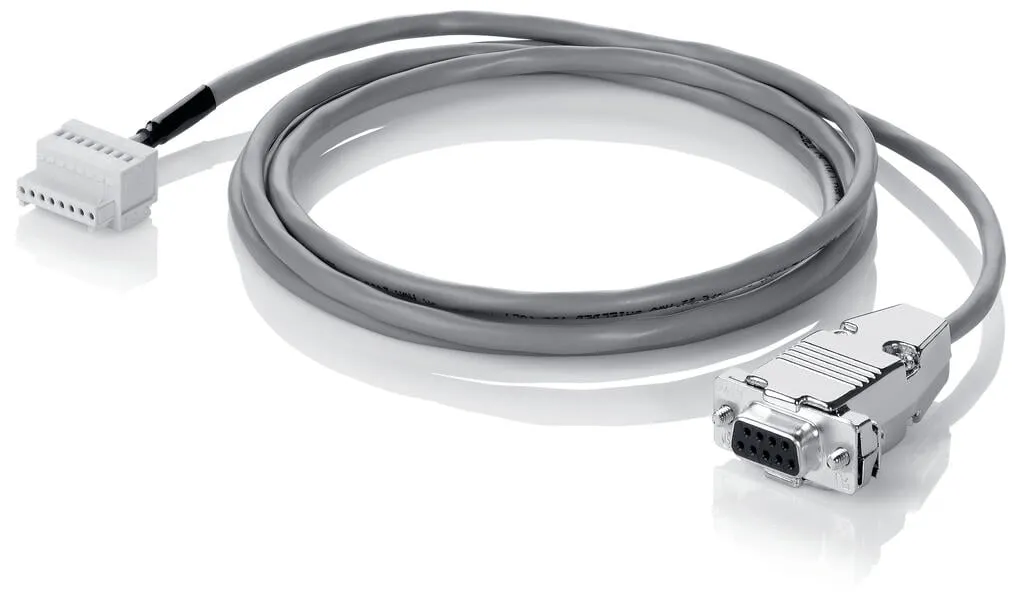

Wago 787-892
Features:WAGO’s communication cable is used for configuration and visualization via PC or controller.It is suitable for 787-1675 devices.Download the corresponding PC software for all 787 Series devic…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Features:WAGO’s communication cable is used for configuration and visualization via PC or controller.It is suitable for 787-1675 devices.Download the corresponding PC software for all 787 Series devices at www.wago.com.Function blocks for communication with the WAGO I/O System 750 and other control systems are also available.
Specification
Notes
| Note | The communication cable is not electrically isolated. |
|---|
Technical data - Signaling and communication
| Signaling | 1 x RS-232 cable |
|---|---|
| Communications | RS-232 serial interface |
Safety and protection
| Protection type | IP20; per EN 60529 |
|---|
Connection data
| Cable type | 3 x 0.34 mm²; shielded |
|---|

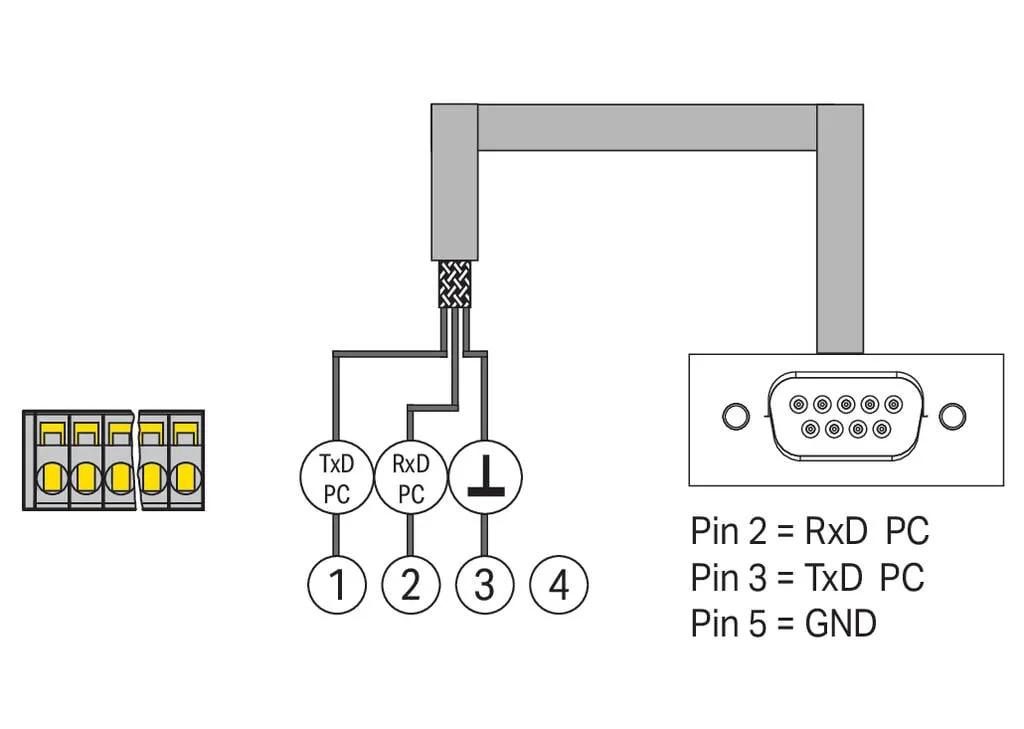

Connection data - Connection 1
| Connection type | Module side (787-1675) |
|---|---|
| Connection technology | 1 x 4-pole female connector (734-104) with strain relief |
Connection data - Connection 2
| Connection type | PC/controller side |
|---|---|
| Connection technology | 1 x 9 pole D-sub socket |
Physical data
| Cable length | 1.8 m |
|---|
Material data
| Weight | 97 g |
|---|
Environmental requirements
| Ambient temperature (operation) | -10 … +70 °C |
|---|
Commercial data
| Product Group | 6 (INTERFACE ELECTRONIC) |
|---|---|
| PU (SPU) | 1 pcs |
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4050821787402 |
| Customs tariff number | 85444290900 |
Product Classification
| UNSPSC | 26121604 |
|---|---|
| eCl@ss 10.0 | 27-06-18-90 |
| eCl@ss 9.0 | 27-06-03-11 |
| ETIM 9.0 | EC001408 |
| ETIM 10.0 | EC001408 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
