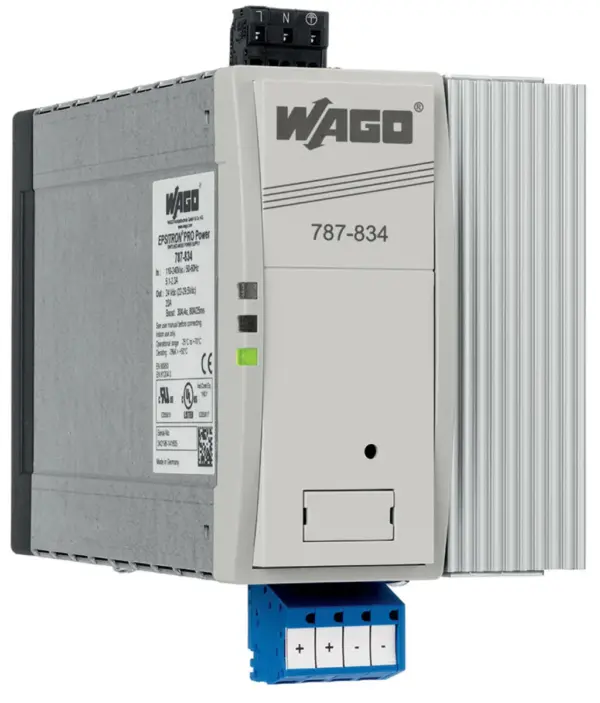

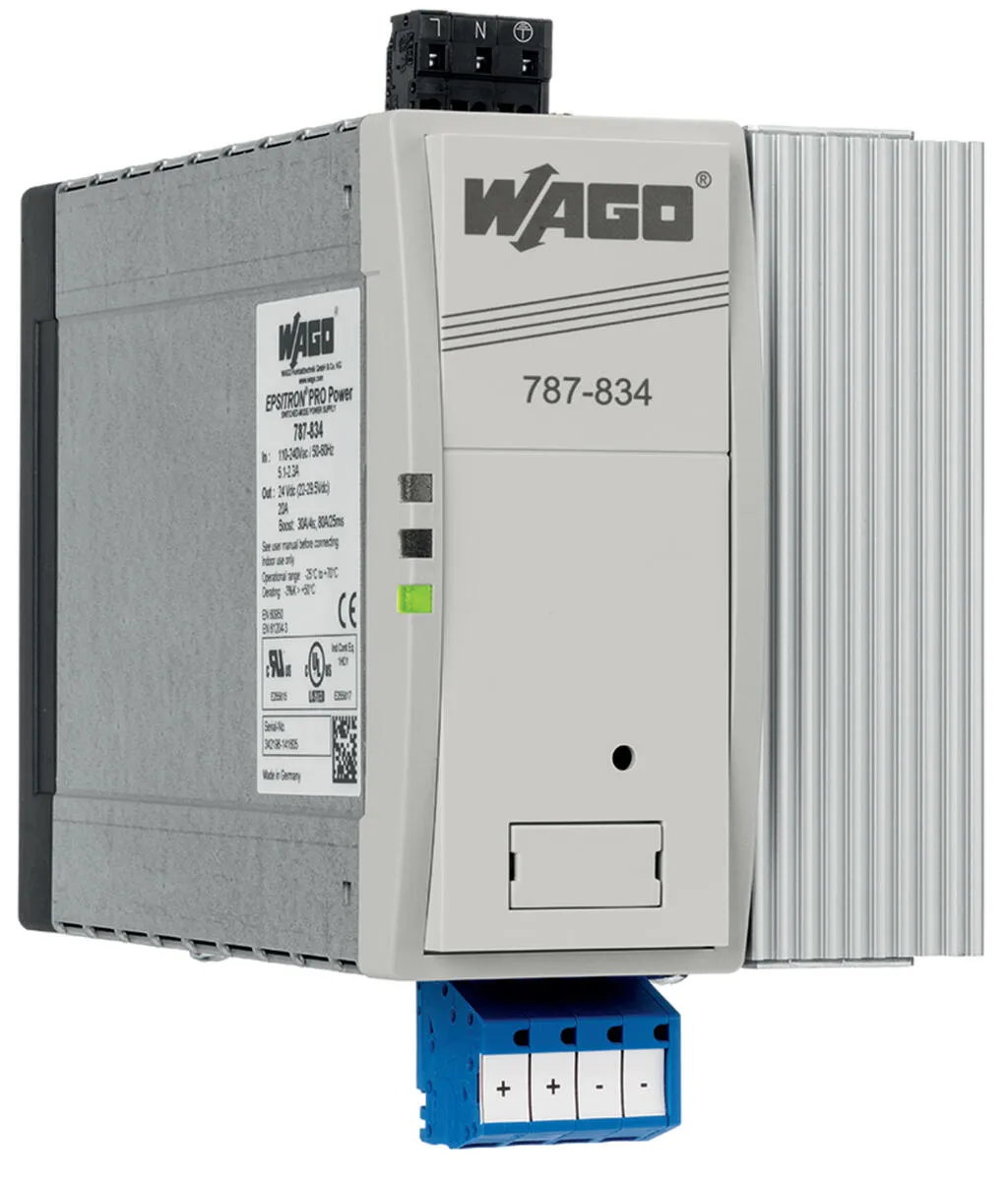

Wago 787-834
Features:Switched-mode power supply with PowerBoost and TopBoostSwitch off the output and minimize power consumption via stand-by inputOutput monitoring via DC OK contactSuitable for both parallel and…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Features:Switched-mode power supply with PowerBoost and TopBoostSwitch off the output and minimize power consumption via stand-by inputOutput monitoring via DC OK contactSuitable for both parallel and series operationNatural convection cooling when horizontally mountedEncapsulated for use in control cabinetsElectrically isolated output voltage (SELV) per ULÂ 60950-1; PELV per ENÂ 60204
Specification
Technical data - Input
| Phases | 1 |
|---|---|
| Nominal input voltage U<sub>i nom</sub> | 1 x 100 … 240 VAC |
| Input voltage range | 1 x 85 … 264 VAC; 120 … 300 VDC |
| Input voltage derating | -1.5 %/V (< 110 VAC) |
| Nominal mains frequency range | 50 … 60 Hz; 0 Hz |
| Input current I<sub>i</sub> | ≤ 2.3 A (230 VAC; 20 ADC) |
| Inrush current | ≤ 8 A (active power factor correction (PFC)) |
| Power factor correction (PFC) | Active |
| Mains failure hold-up time | ≥ 25 ms (230 VAC) |
Technical data - Output
| Nominal output voltage U<sub>o nom</sub> | 24 VDC (SELV) |
|---|---|
| Output voltage range | 22 … 29.5 VDC (adjustable) |
| Default setting | DC 24 V |
| Nominal output current I<sub>o nom</sub> | 20 A (24 VDC) |
| Nominal output power | 480 W |
| Deviation | ≤ 1 % |
| Residual ripple | ≤ 70 mV (peak-to-peak) |
| Current limitation | 1.1 x Io nom (typ.) |
| Overload behavior | TopBoost/PowerBoost/Constant current mode |
| PowerBoost | DC 30 A (4 s); DC 25 A (8 s) |
| TopBoost | 80 ADC (25 ms) |

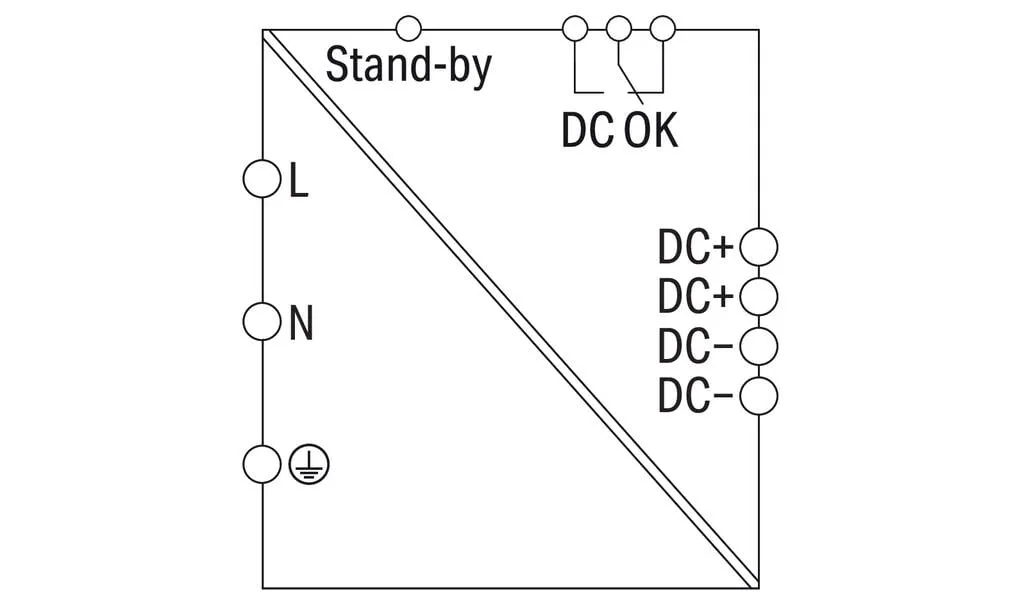

Technical data - Signaling and communication
| Signaling | 1 x DC OK LED (green), 1 x Error LED (red), 1 x Stand-by input, 1 x DC OK relay contact (changeover contact) |
|---|---|
| Operation status indicator | Green LED (DC OK), Red LED (error) |
Technical data - Efficiency/power losses
| Power loss P<sub>l</sub> | ≤ 0.8 W (standby); ≤ 4.8 W (no load); ≤ 43.2 W (nominal load) |
|---|---|
| Efficiency (typ.) | 91 % |
Technical data - Circuit protection
| Internal fuse | T 10 A / 250 VAC |
|---|---|
| Pre-fuse (required) | An external DC fuse is required for the DC input voltage. |
| Backup fuse (recommended) | Circuit breaker: 6 A, 10 A, 16 A; Tripping characteristic: B or C |
Safety and protection
| Isolation voltage (sec.-PE) | 0.7 kVDC |
|---|---|
| Protection class | I |
| Protection type | IP20; per EN 60529 |
| Resistance to reverse feed | ≤ 35 VDC |
| Overvoltage category | II |
| Pollution degree | 2 |
| Transient suppression (primary) | Varistor |
| Short-circuit-protected | Yes |
| Open-circuit-proof | Yes |
| Parallel operation | Yes |
| Series operation | Yes |
| MTBF | > 500,000 h (per IEC 61709) |
Connection data - Connection 1
| Connection type | Input |
|---|---|
| Connection technology | CAGE CLAMP® |
| WAGO connector | WAGO 231 Series |
| Solid conductor | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Fine-stranded conductor | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Strip length | 8 … 9 mm / 0.31 … 0.35 inches |
Connection data - Connection 2
| Connection type | Output |
|---|---|
| Connection technology | Push-in CAGE CLAMP® |
| WAGO connector | WAGO 831 Series |
| Solid conductor | 0.5 … 10 mm² / 20 … 8 AWG |
| Fine-stranded conductor | 0.5 … 10 mm² / 20 … 8 AWG |
| Strip length | 13 … 15 mm / 0.51 … 0.59 inches |
Connection data - Connection 3
| Connection type | Signaling |
|---|---|
| Connection technology | CAGE CLAMP® |
| WAGO connector | WAGO 733 Series |
| Solid conductor | 0.08 … 0.5 mm² / 28 … 20 AWG |
| Fine-stranded conductor | 0.08 … 0.5 mm² / 28 … 20 AWG |
| Strip length | 5 … 6 mm / 0.2 … 0.24 inches |
Physical data
| Width | 97 mm / 3.819 inches |
|---|---|
| Height | 171 mm / 6.732 inches |
| Depth from upper-edge of DIN-rail | 187 mm / 7.362 inches |
| Note (dimensions) | Height with connector |
Mechanical data
| Mounting type | DIN-35 rail |
|---|
Material data
| Weight | 2300 g |
|---|
Environmental requirements
| Ambient temperature (operation) | -25 … +70 °C (Device starts at -40 °C (type-tested)) |
|---|---|
| Ambient temperature (storage) | -25 … +85 °C |
| Relative humidity | 5 … 96 % (no condensation permissible) |
| Derating | −3 %/K (> 50 °C) |
| Climatic category | 3K3 (per EN 60721) |
Standards and specifications
| Conformity marking | CE |
|---|---|
| Standards/specifications | EN 61010-1, EN 61010-2-201, EN 61204-3, EN 61558-2-16, UL 60950, UL 508 |
Commercial data
| Product Group | 6 (INTERFACE ELECTRONIC) |
|---|---|
| PU (SPU) | 1 pcs |
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4050821085225 |
| Customs tariff number | 85044083900 |
Product Classification
| UNSPSC | 39121004 |
|---|---|
| eCl@ss 10.0 | 27-04-07-01 |
| eCl@ss 9.0 | 27-04-07-01 |
| ETIM 9.0 | EC002540 |
| ETIM 10.0 | EC002540 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
