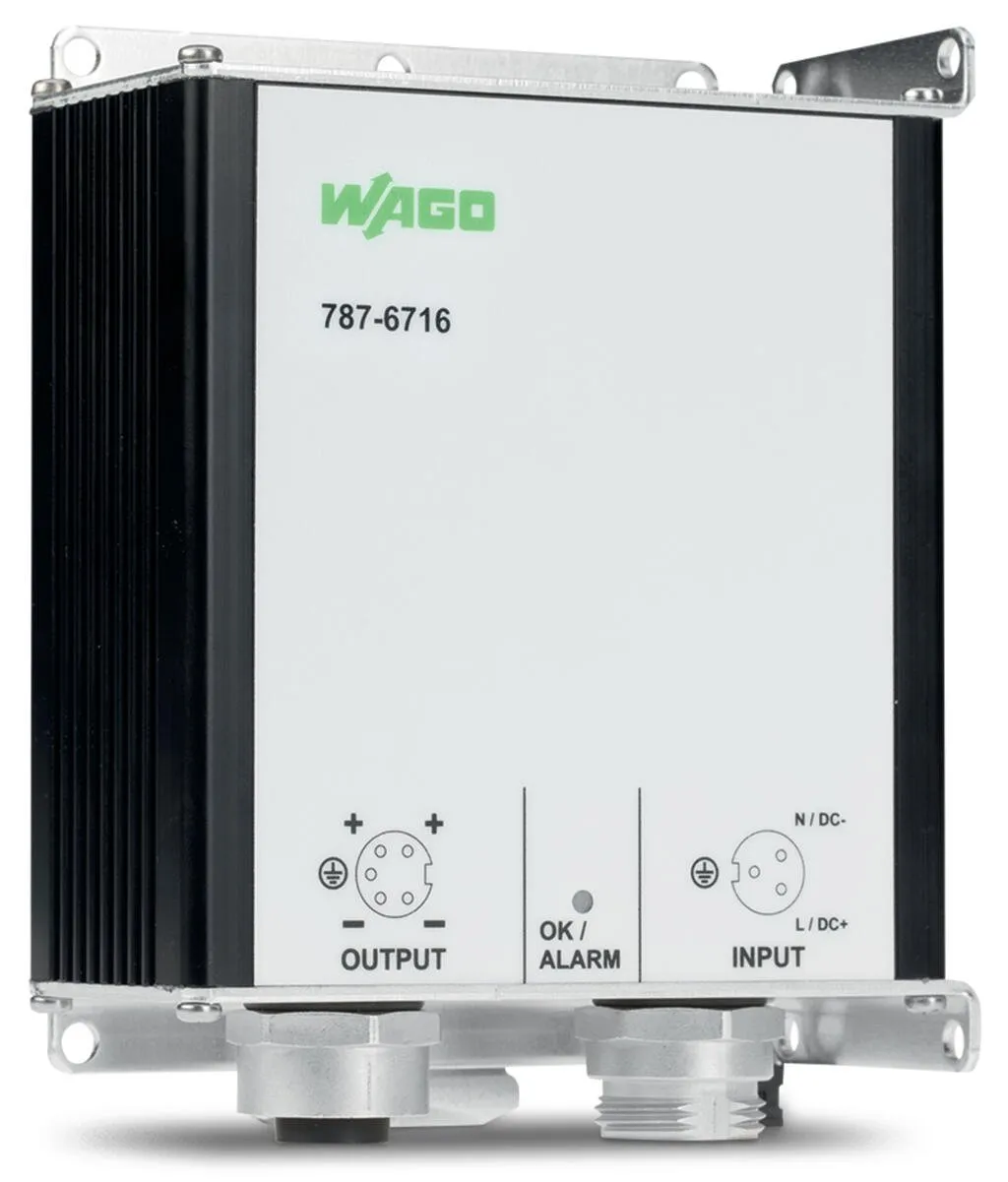

Wago 787-6716
Features:Switched-mode power supply with PowerBoostLow-profile, compact designExtremely robust, fully encapsulated housing (IP67)Active power factor correctionHigh efficiency up to 92.3 %Surrounding a…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Features:Switched-mode power supply with PowerBoostLow-profile, compact designExtremely robust, fully encapsulated housing (IP67)Active power factor correctionHigh efficiency up to 92.3 %Surrounding air temperature up to 85 °CSuitable for both parallel and series operation
Specification
Technical data - Input
| Phases | 1 |
|---|---|
| Nominal input voltage U<sub>i nom</sub> | 100 … 240 VAC/VDC, AC/DC 100 … 240 V |
| Input voltage range | 90 … 265 VAC/VDC |
| Nominal mains frequency range | 47 … 63.6 Hz; 0 Hz |
| Input current I<sub>i</sub> | ≤ 0.5 A (250 VAC); ≤ 1.1 A (100 VAC) |
| Inrush current | ≤ 9 A |
| Power factor | ≥ 0.98 |
| Power factor correction (PFC) | Active |
| Mains failure hold-up time | ≥ 45 ms |
Technical data - Output
| Nominal output voltage U<sub>o nom</sub> | 24 VDC |
|---|---|
| Output voltage range | ±2 % |
| Nominal output current I<sub>o nom</sub> | 4 A |
| Nominal output power | 96 W |
| Residual ripple | ≤ 100 mV (peak-to-peak); ≤ 20 mV (rms) |
| Overload behavior | Constant current |
| PowerBoost | DC 6 A (5 s; without voltage drop) |
Technical data - Signaling and communication
| Signaling | 1 x DC OK LED (green), 1 x Overload LED (red) |
|---|---|
| Operation status indicator | Green LED (24 VDC OK), Red LED (overload) |
Technical data - Efficiency/power losses
| Power loss P<sub>l</sub> | ≤ 1 W; ≤ 7.9 W (nominal load) |
|---|---|
| Efficiency (typ.) | 92.3 % (230 VAC) |
Technical data - Circuit protection
| Internal fuse | T 6.3 A |
|---|---|
| Backup fuse (recommended) | Circuit breaker: 4 … 20 A; Characteristic: C, T 20 A in building installations |
Safety and protection
| Protection class | I |
|---|---|
| Protection type | IP67 |
| Resistance to reverse feed | ≤ 35 VDC |
| Overvoltage protection; secondary | ≤ 30 VDC (per IEC 61131) |
| Short-circuit-protected | Yes |
| Open-circuit-proof | Yes |
| Parallel operation | 3 devices (max.) |
| Series operation | 2 devices (max.) |
| MTBF | > 960,000 h |
Connection data - Connection 1
| Connection type | Input |
|---|---|
| Connection technology | 7/8"; 3-pole plug |
Connection data - Connection 2
| Connection type | Output |
|---|---|
| Connection technology | 7/8"; 5-pole socket |
Physical data
| Width | 111 mm / 4.37 inches |
|---|---|
| Height | 141 mm / 5.55 inches |
| Depth | 54 mm / 2.123 inches |
Mechanical data
| Mounting type | Screw mount |
|---|
Material data
| Weight | 1100 g |
|---|
Environmental requirements
| Ambient temperature (operation) | -40 … +85 °C |
|---|---|
| Ambient temperature (storage) | -40 … +85 °C |
| Relative humidity | 4 … 100 % |
| Derating | ‒3.84 W/K (> 60 °C) |
| Climatic category | 4K6 (per EN 60721) |
Standards and specifications
| Conformity marking | CE |
|---|---|
| Standards/specifications | EN 61010-1, EN 61010-2-201, EN 61204, UL 508 |
Commercial data
| PU (SPU) | 1 pcs |
|---|---|
| Packaging type | box |
| Country of origin | CZ |
| GTIN | 4055143644877 |
| Customs tariff number | 85044083900 |
Product Classification
| UNSPSC | 39121004 |
|---|---|
| eCl@ss 10.0 | 27-04-07-01 |
| eCl@ss 9.0 | 27-04-07-01 |
| ETIM 9.0 | EC002540 |
| ETIM 10.0 | EC002540 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
