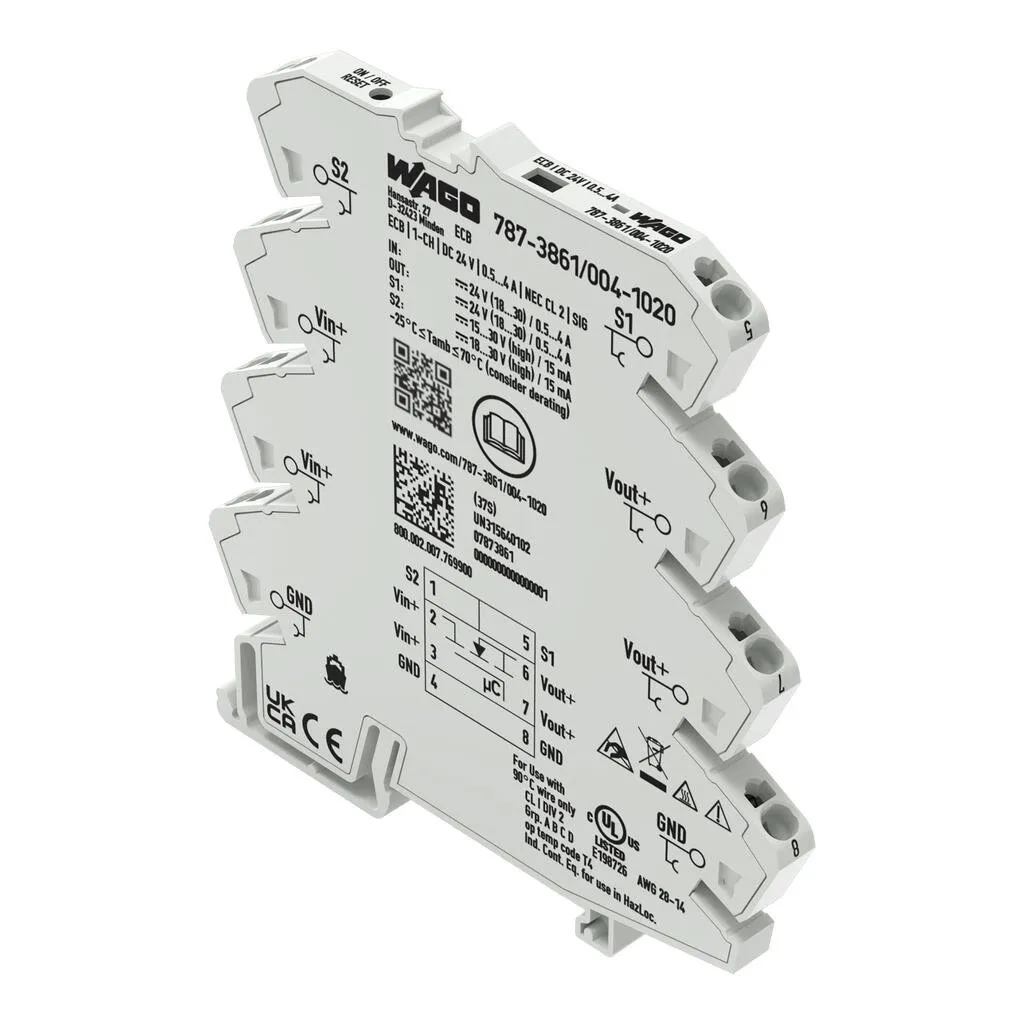

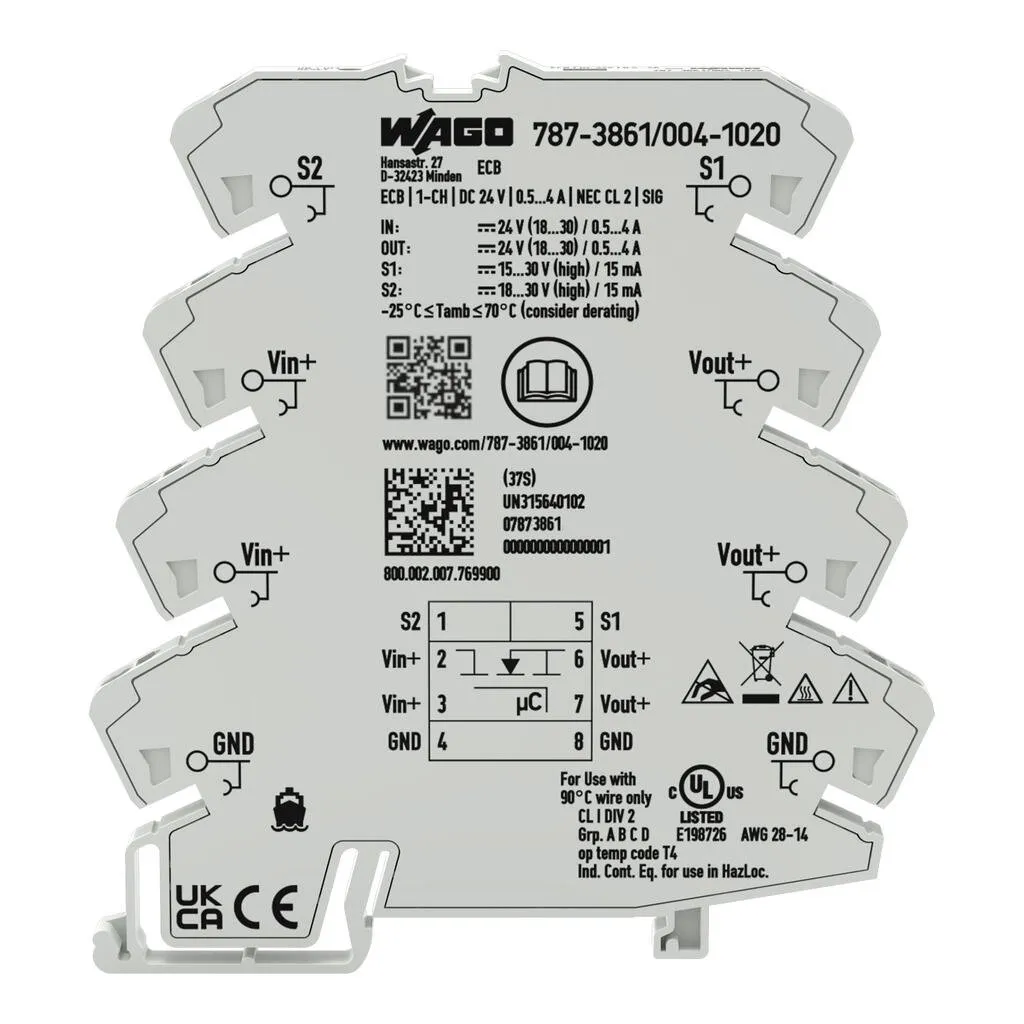

Wago 787-3861/004-1020
Features:Space-saving ECB with one channelReliably and safely trips in the event of an overload and short circuit on the secondary sideSwitch-on capacity < 7,000 μFEnables the use of an economical…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Features:Space-saving ECB with one channelReliably and safely trips in the event of an overload and short circuit on the secondary sideSwitch-on capacity < 7,000 μFEnables the use of an economical, standard power supplyMinimizes wiring via two voltage outputs and maximizes commoning options on both input and output sides (e.g., commoning of the output voltage on 857 and 2857 Series devices)Status signal – adjustable as single or group messageReset, switch on/off via remote input or local switchPrevents power supply overload due to total inrush current thanks to time-delayed switching on during interconnected operation
Specification
Notes
| Note | The device is designed for use in SELV circuits., Depending on the output current, please use the approved minimum conductor cross-sections., Depending on the output current, please use the approved minimum conductor cross-sections: 26 AWG (0.5 A); 24 AWG (1 A / 1.5 A); 22 AWG (2 A / 2.5 A); 20 AWG (3 A / 3.5 A / 4 A), The device is designed for use in SELV circuits., Depending on the output current, please use the approved minimum conductor cross-sections: 26 AWG (0.5 A); 24 AWG (1 A / 1.5 A); 22 AWG (2 A / 2.5 A); 20 AWG (3 A / 3.5 A / 4 A) |
|---|
Technical data - Input
| Nominal input voltage U<sub>i nom</sub> | 24 VDC |
|---|---|
| Input voltage range | 18 … 30 VDC |
Technical data - Output
| Total number of channels (module) | 1 |
|---|---|
| Nominal output voltage U<sub>o nom</sub> | 1 x 24 VDC |
| Output voltage range | 18 … 30 VDC (Ue − voltage drop) |
| Voltage drop | ≤ 40 mV (0.5 A); ≤ 80 mV (1 A); ≤ 120 mV (1.5 A); ≤ 160 mV (2 A); ≤ 200 mV (2.5 A); ≤ 240 mV (3 A); ≤ 280 mV (3.5 A); ≤ 320 mV (4 A) |
| Nominal output current I<sub>o nom</sub> | 1 x 0.5 / 1 / 1.5 / 2 / 2.5 / 3 / 3.5 / 4 A (adjustable) |
| Default setting | DC 0.5 A; switched off |

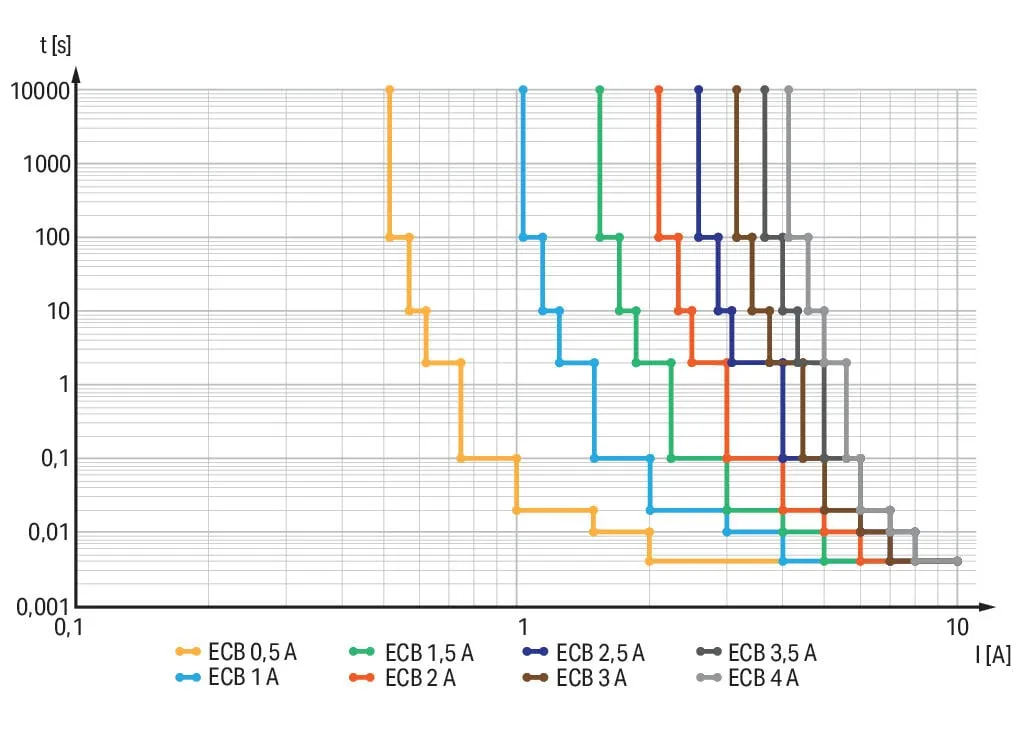

| Trip time | 10 ms … 90 s (load-dependent) |
| Switch-on behavior | Time-delayed channel switching (load-dependent, min. 0 ms / max. 500 ms) |
| Current limitation | No |
| Switch-on threshold | DC 20.3 V |
Technical data - Signaling and communication
| Signaling | 1 x Signal output (18 … 30 VDC, max. 0.015 A), default setting: tripped, 1 x Status LED (green/yellow/red), 1 x Signal output (18 … 30 VDC, max. 0.015 A), Default setting: triggered |
|---|---|
| Operation status indicator | Green LED (channel OK), Red LED (channel switched off) |
| Remote input | 1 x Control input (15 … 30 VDC (active high); 0 … 5 VDC (active low); max. 0.015 A) |
Technical data - Efficiency/power losses
| Power loss P<sub>l</sub> | ≤ 0.4 W (no load) |
|---|---|
| Efficiency (typ.) | 98 % |
Technical data - Circuit protection
| Internal fuse | T 4 A |
|---|
Safety and protection
| Isolation voltage (connectors – housing) | 1.5 kVDC |
|---|---|
| Protection class | III |
| Protection type | IP20; per EN 60529 |
| Reverse voltage protection | No |
| Transient suppression (primary) | Suppressor diode (33 V) |
| Parallel operation of single channels | Not permitted |
| Series operation | No |
| MTBF | 807,840 h |
Safety and protection - Insulation coordination (UL)
| Overvoltage category | II |
|---|---|
| Pollution degree | 2 |
Safety and protection - Insulation coordination
| Overvoltage category | II |
|---|---|
| Pollution degree | 2 |
Connection data
| Number of jumper slots | 8 |
|---|
Connection data - Connection 1
| Connection technology | Push-in CAGE CLAMP® |
|---|---|
| WAGO connector | WAGO 857 Series |
| Solid conductor | 0.08 … 2.5 mm² / 26 … 14 AWG |
| Fine-stranded conductor | 0.34 … 2.5 mm² / 22 … 14 AWG |
| Strip length | 9 … 10 mm / 0.35 … 0.39 inches |
| Note (conductor cross-section) | Depending on the output current, use the conductor cross-sections tested and approved by UL: 26 … 14 AWG (0.5 A); 24 … 14 AWG (1 A / 1.5 A); 22 … 14 AWG (2 A / 2.5 A); 20 … 14 AWG (3 A / 3.5 A / 4 A) |
Physical data
| Width | 6 mm / 0.236 inches |
|---|---|
| Height | 94 mm / 3.701 inches |
| Depth from upper-edge of DIN-rail | 97.8 mm / 3.85 inches |
Mechanical data
| Mounting type | DIN-35 rail |
|---|
Material data
| Fire load | 0.634 MJ |
|---|---|
| Weight | 55.7 g |
Environmental requirements
| Ambient temperature (operation) | -25 … +70 °C |
|---|---|
| Ambient temperature (storage) | -40 … +85 °C |
| Relative humidity | 10 … 95 % (no condensation permissible) |
| Derating | No derating |
| Operating altitude | ≤ 2000 m (a.s.l.) |
Standards and specifications
| Conformity marking | CE; UKCA |
|---|---|
| Standards/specifications | EN 61000-6-2, EN 61000-6-3, UL 61010-2-201, DNV, UL 1310 (NEC Class 2), UL 2367 |
Commercial data
| PU (SPU) | 1 pcs |
|---|---|
| Packaging type | Bag |
| Country of origin | IN |
| Customs tariff number | 85362010900 |
Product Classification
| UNSPSC | 39121601 |
|---|---|
| ETIM 9.0 | EC001440 |
| ETIM 10.0 | EC001440 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 11120-22-2, 1303-86-2, 1317-36-8, 7439-92-1 |
|---|---|
| REACH Candidate List Substance | Diboron trioxide, Lead, Lead monoxide, Lead silicate |
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 6(c), 7(a), 7(c)-I, 7(c)-II |
| SCIP notification number (Austria) | d4bc65a9-4bc9-44a7-8802-07993f09f471 |
| SCIP notification number (Belgium) | 42d9de72-f436-4fd2-a5e2-13fdbdd41555 |
| SCIP notification number (Bulgaria) | bf3d6373-410d-47ca-a36d-3b5007a0a85d |
| SCIP notification number (Czech Republic) | 000c8e3f-b53a-4a0a-a94a-7a0885294193 |
| SCIP notification number (Denmark) | dd9e285a-86de-4358-8f2d-3e41da297fe1 |
| SCIP notification number (Finland) | 3a32b4c2-532c-4497-80cc-211048a63cf4 |
| SCIP notification number (France) | 566ff00e-df36-4791-9059-34dddc6ee25e |
| SCIP notification number (Germany) | 25035195-9eef-46e1-bc88-8aeeb1d90b0c |
| SCIP notification number (Hungary) | d3cb52fe-3908-4c29-8117-4c3c8fe9571d |
| SCIP notification number (Italy) | b9aefcec-4d77-451d-920c-5e5d0a2f89c8 |
| SCIP notification number (Netherlands) | 64e25cff-42e2-4045-a796-679ab9152a3b |
| SCIP notification number (Poland) | 1feec300-c81d-4a7a-a797-c69efdd8e346 |
| SCIP notification number (Romania) | 550a0dbd-2911-45b6-ba22-561b443f0e24 |
| SCIP notification number (Sweden) | 745f466b-ae9b-4383-b17e-c48ce860045e |
