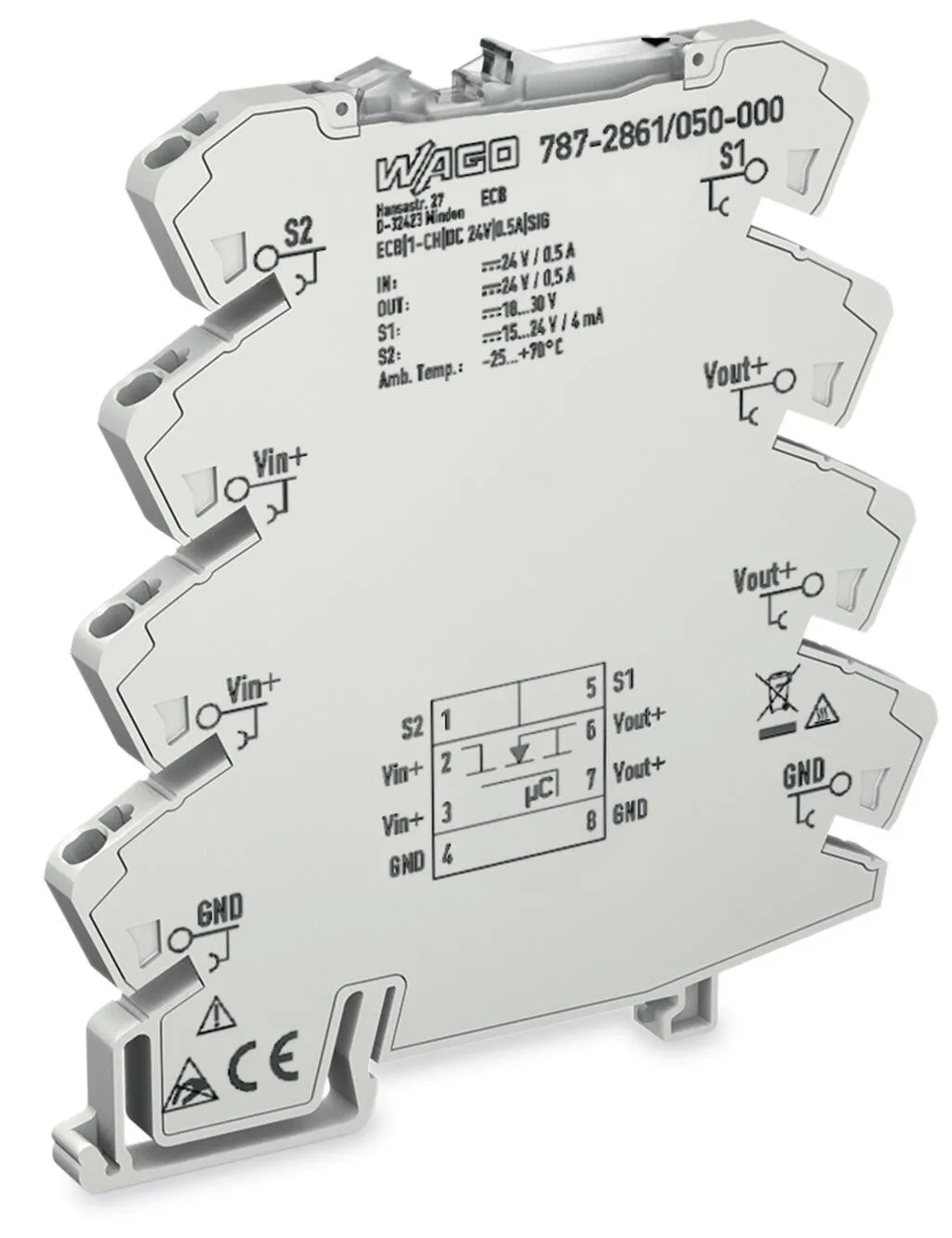

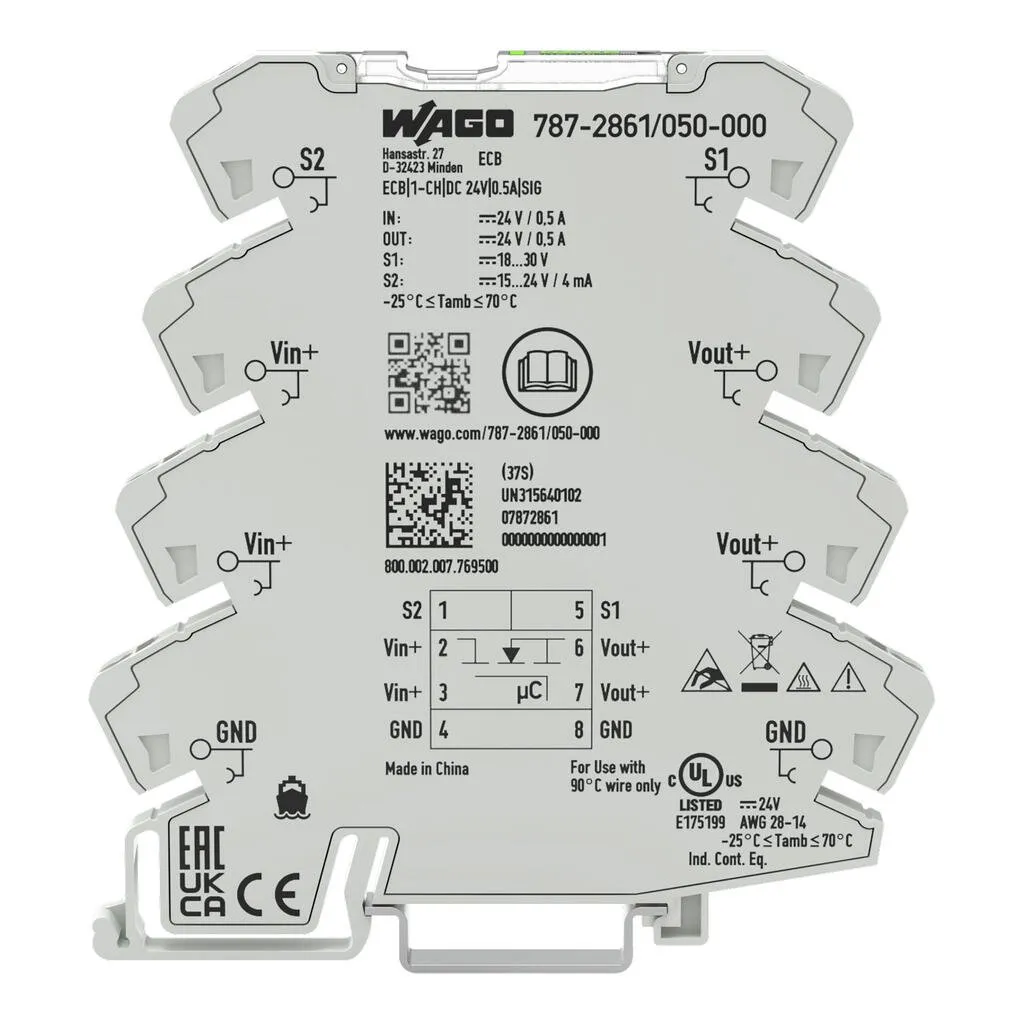

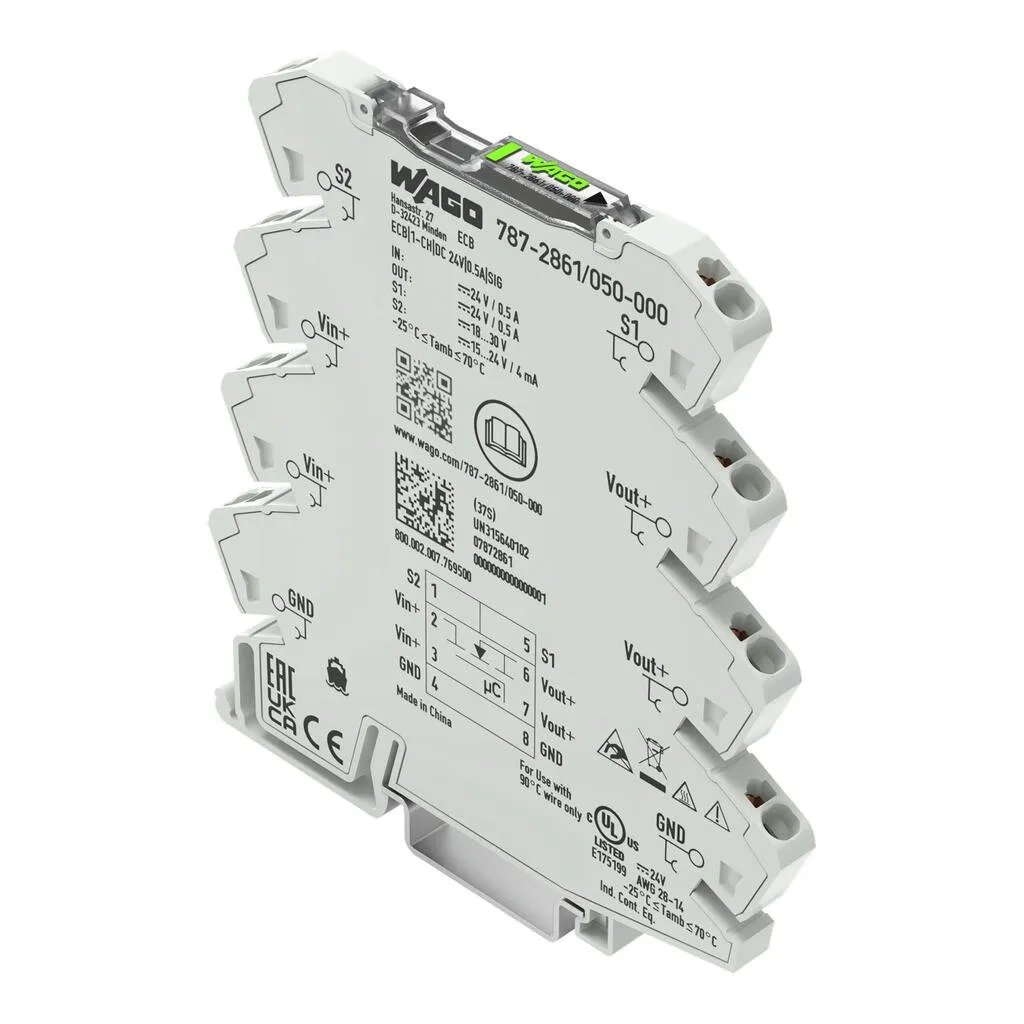

Wago 787-2861/050-000
Features:Space-saving ECB with one channelReliably and safely trips in the event of an overload and short circuit on the secondary sideSwitch-on capacity > 50,000 μFMinimizes wiring via two voltag…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Features:Space-saving ECB with one channelReliably and safely trips in the event of an overload and short circuit on the secondary sideSwitch-on capacity > 50,000 μFMinimizes wiring via two voltage outputs and maximizes commoning options on both input and output sides (e.g., commoning of the output voltage on 857 and 2857 Series devices)Status signal – as single or group messageReset, switch on/off via remote input or local switchPrevents power supply overload due to total inrush current thanks to time-delayed switching on during interconnected operation
Specification
Technical data - Input
| Nominal input voltage U<sub>i nom</sub> | 24 VDC |
|---|---|
| Input voltage range | 18 … 30 VDC |
Technical data - Output
| Total number of channels (module) | 1 |
|---|---|
| Nominal output voltage U<sub>o nom</sub> | 1 x 24 VDC |
| Output voltage range | 18 … 30 VDC (Ue − voltage drop) |
| Voltage drop | ≤ 50 mV |
| Nominal output current I<sub>o nom</sub> | 1 x 0.5 A (fixed setting) |
| Trip time | 4 ms … 100 s (load-dependent) |
| Switch-on capacity | > 50000 µF per channel |
| Switch-on behavior | Time-delayed channel switching (load-dependent, min. 170 ms / max. 500 ms) |
| Active current limitation | No |
| Current limitation | No |
Technical data - Signaling and communication
| Signaling | 1 x Status LED (green/yellow/red/blue), 1 x Control input, 1 x Active signal output (Ui, max. 4 mA) |
|---|---|
| Operation status indicator | Green LED (channel OK), Red LED (tripped channel) |
| Remote input | 18 … 30 VDC signal, switches on/off and resets the channel |
Technical data - Efficiency/power losses
| Power loss P<sub>l</sub> | ≤ 0.36 W |
|---|---|
| Efficiency (typ.) | 99 % |
Technical data - Circuit protection
| Internal fuse | T 15 A |
|---|
Safety and protection
| Isolation voltage (connectors – housing) | 0.5 kVDC |
|---|---|
| Protection class | III |
| Protection type | IP20; per EN 60529 |
| Reverse voltage protection | No |
| Pollution degree | 2 |
| Transient suppression (primary) | Suppressor diode (33 V) |
| Parallel operation of single channels | Not permitted |
| Series operation | No |
| MTBF | 1,263,074 h (per MIL-HDBK-217F2) |
Connection data
| Number of jumper slots | 8 |
|---|
Connection data - Connection 1
| Connection technology | Push-in CAGE CLAMP® |
|---|---|
| WAGO connector | WAGO 857 Series |
| Solid conductor | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Fine-stranded conductor | 0.34 … 2.5 mm² / 22 … 14 AWG |
| Strip length | 9 … 10 mm / 0.35 … 0.39 inches |
Physical data
| Width | 6 mm / 0.236 inches |
|---|---|
| Height | 94 mm / 3.701 inches |
| Depth from upper-edge of DIN-rail | 97.8 mm / 3.85 inches |
Mechanical data
| Mounting type | DIN-35 rail |
|---|
Material data
| Weight | 34 g |
|---|
Environmental requirements
| Ambient temperature (operation) | -25 … +70 °C (Device starts at -40 °C (type-tested)) |
|---|---|
| Ambient temperature (storage) | -40 … +85 °C |
| Relative humidity | 10 … 95 % (no condensation permissible) |
| Derating | No derating |
Standards and specifications
| Conformity marking | CE |
|---|---|
| Standards/specifications | EN 61000-6-2, EN 61000-6-3, UL 61010-2-201, DNV |
Commercial data
| PU (SPU) | 1 pcs |
|---|---|
| Packaging type | Bag |
| Country of origin | CN |
| Customs tariff number | 85362010900 |
Product Classification
| UNSPSC | 39121634 |
|---|---|
| ETIM 9.0 | EC001440 |
| ETIM 10.0 | EC001440 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 1303-86-2, 1317-36-8, 7439-92-1 |
|---|---|
| REACH Candidate List Substance | Diboron trioxide, Lead, Lead monoxide |
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 6(c), 7(a), 7(c)-I, 7(c)-II |
| SCIP notification number (Austria) | 98965cd4-cf5d-44c1-be87-5f997e073d49 |
