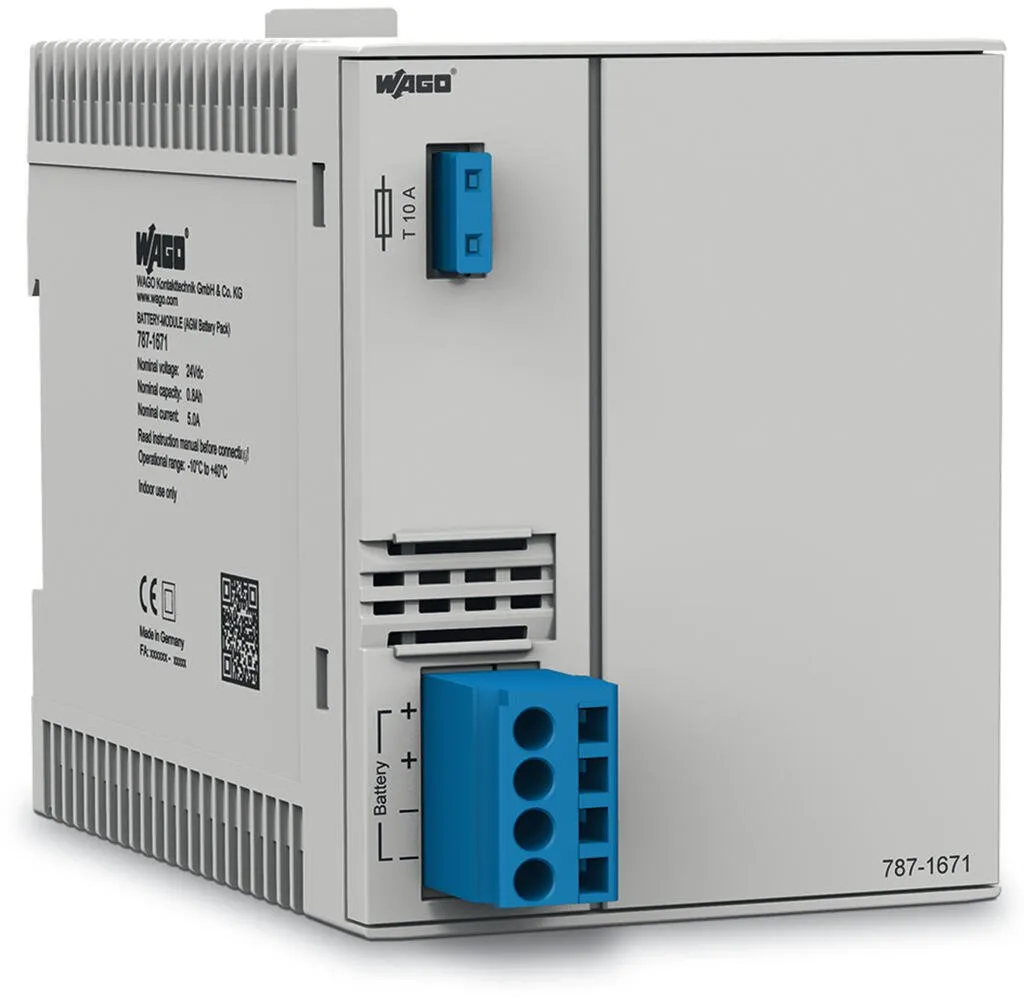

Wago 787-1671
Features:Lead-acid, absorbed glass mat (AGM) battery module for uninterruptible power supply (UPS)Can be connected to both 787-870/875 UPS Charger/Controller and 787-1675 Power Supply with integrated…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Features:Lead-acid, absorbed glass mat (AGM) battery module for uninterruptible power supply (UPS)Can be connected to both 787-870/875 UPS Charger/Controller and 787-1675 Power Supply with integrated UPS charger and controllerParallel operation provides higher buffer timeBuilt-in temperature sensorMounting on DIN-35 railBattery control (from manufacturing no. 216570) detects both battery life and battery type
Specification
Notes
| Note | For parallel connection, please switch battery capacity setting to “OFF” in the UPS charger and controller. |
|---|
Technical data - Input
| Nominal input voltage U<sub>i nom</sub> | 24 VDC |
|---|
Technical data - Output
| Nominal output voltage U<sub>o nom</sub> | 24 VDC |
|---|---|
| Nominal output current I<sub>o nom</sub> | 5 A |
Technical data - Energy storage systems
| Memory type | Lead-acid fleece |
|---|---|
| Battery capacity | 0.8 Ah; 19.2 Wh; 69.12 kJ |
| Charging current | 0.2 A (recommended) |
| End-of-charge voltage | 27 VDC (25 °C) |
Technical data - Signaling and communication
| Signaling | Battery control (C+; C-) |
|---|
Technical data - Circuit protection
| Internal fuse | T 10 A / 250 VAC |
|---|
Safety and protection
| Protection class | III |
|---|---|
| Protection type | IP20; per EN 60529 |
| Pollution degree | 2 |
| Parallel operation | Yes |
| Series operation | No |
| MTBF | > 500,000 h (per IEC 61709) |
| Service life (typ.) | 5 / 4 / 2 a (20 / 30 / 40 °C) |
Connection data
| Cable length (max.) | 3 m |
|---|
Connection data - Connection 1
| Connection type | Input/output/battery control |
|---|---|
| Connection technology | CAGE CLAMP® |
| WAGO connector | WAGO 721 Series |
| Solid conductor | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Fine-stranded conductor | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Strip length | 8 … 9 mm / 0.31 … 0.35 inches |
Physical data
| Width | 72 mm / 2.835 inches |
|---|---|
| Height | 97 mm / 3.819 inches |
| Depth from upper-edge of DIN-rail | 124 mm / 4.882 inches |
Mechanical data
| Mounting type | DIN-35 rail |
|---|
Material data
| Fire load | 0.124 MJ |
|---|---|
| Weight | 1000 g |
Environmental requirements
| Ambient temperature (operation) | -15 … +40 °C (-20 … +40 °C (during discharge)) |
|---|---|
| Ambient temperature (storage) | -20 … +40 °C |
| Relative humidity | 5 … 80 % (no condensation permissible) |
Standards and specifications
| Conformity marking | CE |
|---|---|
| Standards/specifications | EN 61010-1, EN 61010-2-201 |
| Standards/specifications (pending) | UL 508 |
Commercial data
| PU (SPU) | 1 pcs |
|---|---|
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4055143535724 |
| Customs tariff number | 85072080900 |
Product Classification
| UNSPSC | 26111707 |
|---|---|
| eCl@ss 10.0 | 27-05-04-03 |
| eCl@ss 9.0 | 27-05-04-03 |
| ETIM 9.0 | EC000357 |
| ETIM 10.0 | EC000357 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
