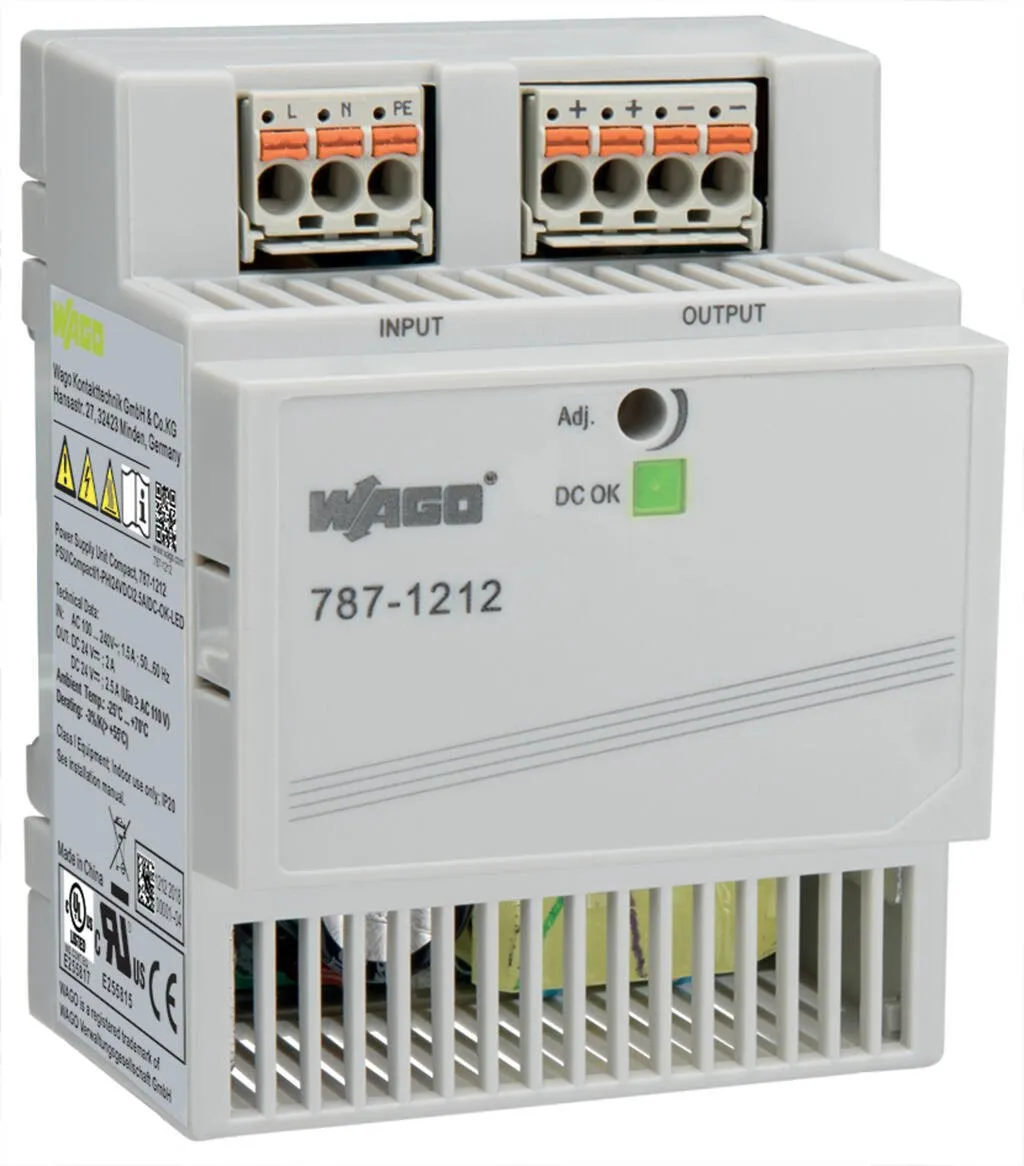

Wago 787-1212
Features:Switched-mode power supplyStepped profile for installation in standard distribution boardsRemovable front panel and screw mounts for alternative installation in distribution boxes or devicesP…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Features:Switched-mode power supplyStepped profile for installation in standard distribution boardsRemovable front panel and screw mounts for alternative installation in distribution boxes or devicesPluggable picoMAX® Connection Technology (tool-free)Suitable for both parallel and series operationElectrically isolated output voltage (SELV) per EN 60335-1 and UL 60950-1; PELV per EN 60204
Specification
Technical data - Input
| Phases | 1 |
|---|---|
| Nominal input voltage U<sub>i nom</sub> | 1 x 100 … 240 VAC |
| Input voltage range | 1 x 85 … 264 VAC; 125 … 375 VDC |
| Input voltage derating | -2 %/V (< 100 VAC); -1.33 %/V (< 140 VDC) |
| Nominal mains frequency range | 47 … 63 Hz; 0 Hz |
| Input current I<sub>i</sub> | ≤ 1.5 A |
| Inrush current | ≤ 20 A |
| Power factor | ≥ 0.5 |
| Power factor correction (PFC) | Passive |
| Mains failure hold-up time | ≥ 60 ms |
Technical data - Output
| Nominal output voltage U<sub>o nom</sub> | 24 VDC (SELV) |
|---|---|
| Output voltage range | 22 … 26 VDC (adjustable) |
| Default setting | DC 24 V |
| Nominal output current I<sub>o nom</sub> | 2.5 A; 2 A (< 110 VAC) |
| Nominal output power | 60 W |
| Deviation | ≤ 1 % |
| Deviation, dynamic load change 10 … 90 % | ≤ 1 % |
| Residual ripple | ≤ 100 mV (peak-to-peak) |
| Overload behavior | Constant power (in overload range: 1.05 … 1.35 x Io nom); Shutdown and automatic restart in the event of a short circuit or permanent overload |
Technical data - Signaling and communication
| Signaling | 1 x DC OK LED (green) |
|---|---|
| Operation status indicator | Green LED (Uo) |
Technical data - Efficiency/power losses
| Power loss P<sub>l</sub> | ≤ 0.6 W |
|---|---|
| Power loss (max.) P<sub>l (max.)</sub> | 9 W (100 VAC / 24 VDC; 2.5 A) |
| Efficiency (typ.) | 89 % (230 VAC); 87 % (110 VAC) |
Technical data - Circuit protection
| Internal fuse | T 2 A / 250 VAC |
|---|---|
| Pre-fuse (required) | An external DC fuse is required for the DC input voltage. |
| Backup fuse (recommended) | Circuit breaker: 6 A (C characteristic), 10 A (B characteristic) or higher |
Safety and protection
| Protection class | I |
|---|---|
| Protection type | IP20; per EN 60529 |
| Resistance to reverse feed | ≤ 35 VDC |
| Pollution degree | 2 |
| Transient suppression (primary) | Varistor |
| Overvoltage protection; secondary | ≤ 31 VDC (in the event of a fault) |
| Short-circuit-protected | Yes |
| Open-circuit-proof | Yes |
| Parallel operation | Yes |
| Series operation | Yes |
| MTBF | > 500,000 h (per IEC 61709) |
Connection data - Connection 1
| Connection type | Input/output |
|---|---|
| Connection technology | Push-in CAGE CLAMP® |
| WAGO connector | picoMAX® 5.0, WAGO 2092 Series |
| Solid conductor | 0.2 … 2.5 mm² / 24 … 12 AWG |
| Fine-stranded conductor | 0.2 … 2.5 mm² / 24 … 12 AWG |
| Strip length | 9 … 10 mm / 0.35 … 0.39 inches |
Physical data
| Width | 72 mm / 2.835 inches |
|---|---|
| Height | 90 mm / 3.543 inches |
| Depth | 56 mm / 2.205 inches |
| Depth from upper-edge of DIN-rail | 52.5 mm / 2.067 inches |
| Note (dimensions) | Depth: 48 mm (without cover) |
Mechanical data
| Housing design | DIN-rail-mount enclosure |
|---|---|
| Mounting type | DIN-35 rail, Screw mount (back/side) |
Material data
| Flammability class per UL94 | V0 |
|---|---|
| Fire load | 0.241 MJ |
| Weight | 288 g |
Environmental requirements
| Ambient temperature (operation) | -25 … +70 °C |
|---|---|
| Ambient temperature (storage) | -40 … +85 °C |
| Relative humidity | ≤ 95 % (no condensation permissible) |
| Derating | −2.66 %/K (> 55 °C) |
| Climatic category | 3K3 (per EN 60721; except for low air pressure) |
Standards and specifications
| Conformity marking | CE |
|---|---|
| Standards/specifications | EN 61204-3, EN 60335-1, EN 62368-1, UL 60950-1, UL 508 |
Commercial data
| PU (SPU) | 1 pcs |
|---|---|
| Packaging type | box |
| Country of origin | CN |
| GTIN | 4055143908016 |
| Customs tariff number | 85044083900 |
Product Classification
| UNSPSC | 39121004 |
|---|---|
| eCl@ss 10.0 | 27-04-07-01 |
| eCl@ss 9.0 | 27-04-07-01 |
| ETIM 9.0 | EC002540 |
| ETIM 10.0 | EC002540 |
| ECCN | NO US CLASSIFICATION |
