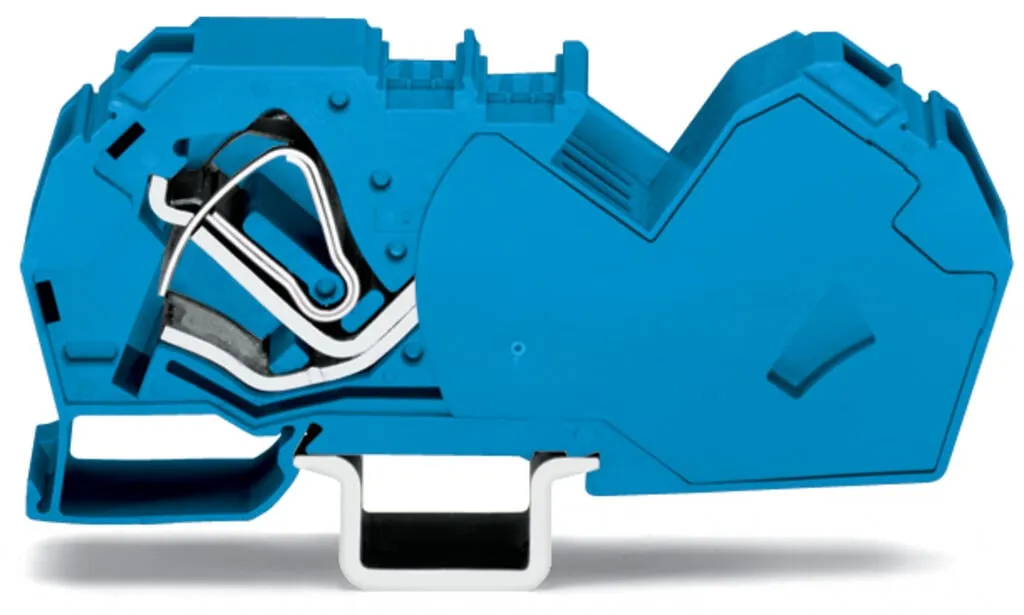

Wago 785-604
Through terminal block, 785 Series, CAGE CLAMP®Our through terminal block (item number 785-604) makes connecting wires quick and easy. Conductors can only be connected to this through terminal block i…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Through terminal block, 785 Series, CAGE CLAMP®Our through terminal block (item number 785-604) makes connecting wires quick and easy. Conductors can only be connected to this through terminal block if their strip length is 23 mm . This product features conductor terminals and utilizes CAGE CLAMP®. Our tried-and-tested universal connection known as CAGE CLAMP® leads the way when it comes to connection technology and electrical interconnections. Depending on the conductor type, this through terminal block is designed for conductor cross sections ranging from 6 mm² to 35 mm².
Specification
Electrical data - Ratings per IEC/EN
| Ratings per | IEC/EN 60947-7-1 |
|---|---|
| Nominal voltage (III/3) | 1000 V |
| Rated impulse withstand voltage (III / 3) | 8 kV |
| Rated current | 125 A |
| Legend (ratings) | (III / 3) ≙ Overvoltage category III / Pollution degree 3 |
| Ratings per | IEC/EN 60947-7-1 / IEC/EN 60947-7-1 / IEC/EN 60947-7-1 |
| Overvoltage category | III / III / II |
| Pollution degree | 3 / 2 / 2 |
| Nominal voltage | 1000 V |
| Rated impulse withstand voltage | 8 kV |
| Rated current | 125 A |
Electrical data - Power Loss
| Power loss, per pole (potential) | 4.062 W |
|---|---|
| Rated current I<sub>N</sub> for power loss specification | 125 A |
| Resistance value for specified, current-dependent power loss | 0 Ω |
Electrical data - General information
| Wiring direction | Front-entry wiring |
|---|
Connection data
| Clamping units | 2 |
|---|---|
| Total number of potentials | 1 |
| Number of levels | 1 |
Connection data - Connection 1
| Connection technology | CAGE CLAMP® |
|---|---|
| Actuation type | Operating tool |
| Connectable conductor materials | Copper |
| Solid conductor | 6 … 35 mm² / 8 … 2 AWG |
| Stranded conductor | 6 … 35 mm² / 8 … 2 AWG |
| Fine-stranded conductor | 6 … 35 mm² / 8 … 2 AWG |
| Strip length | 23 mm / 0.91 inches |
| Wiring direction | Front-entry wiring |
Physical data

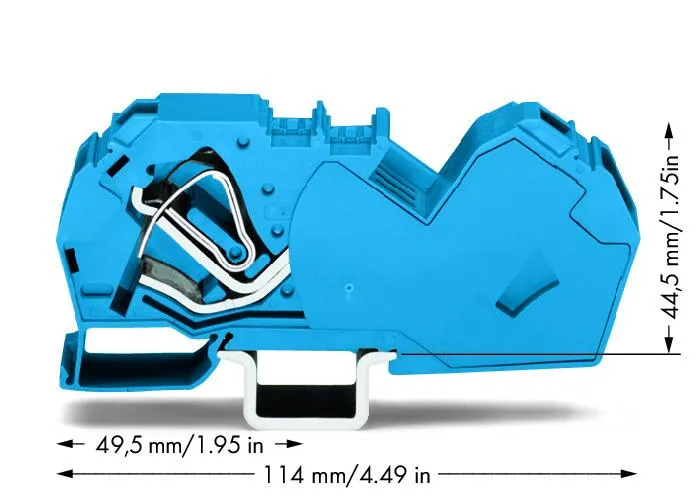

| Width | 16 mm / 0.63 inches |
|---|---|
| Height | 114 mm / 4.488 inches |
| Depth from upper-edge of DIN-rail | 44.5 mm / 1.752 inches |
Mechanical data
| Design | angled |
|---|---|
| Mounting type | DIN-35 rail |
| Mounting (note) | only suitable for DIN 35 x 15 rail |
| Marking level | Center/side marking |
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | blue |
| Material group | I |
| Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 |
| Fire load | 0.883 MJ |
| Weight | 86.9 g |
Environmental requirements
| Processing temperature | -35 … +85 °C |
|---|---|
| Continuous operating temperature | -60 … +105 °C |
Commercial data
| Product Group | 17 (TOP JOB Installation Terminal Blocks) |
|---|---|
| PU (SPU) | 15 pcs |
| Packaging type | box |
| Country of origin | PL |
| GTIN | 4045454400583 |
| Customs tariff number | 85369010000 |
Product Classification
| UNSPSC | 39121410 |
|---|---|
| eCl@ss 10.0 | 27-14-11-20 |
| eCl@ss 9.0 | 27-14-11-20 |
| ETIM 9.0 | EC000897 |
| ETIM 10.0 | EC000897 |
| ECCN | NO US CLASSIFICATION |
