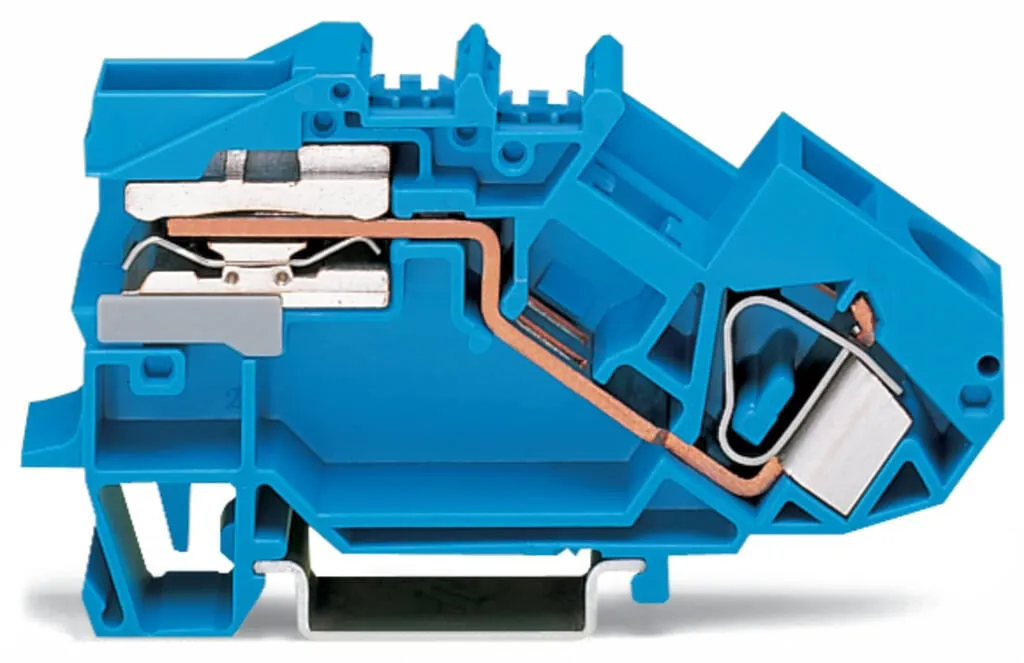

Wago 783-613
N-disconnect terminal block, 783 Series, CAGE CLAMP®Our N-disconnect terminal block (item number 783-613) makes connecting wires quick and easy. Ensure that the strip lengths are between 16 and 17 mm …
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
N-disconnect terminal block, 783 Series, CAGE CLAMP®Our N-disconnect terminal block (item number 783-613) makes connecting wires quick and easy. Ensure that the strip lengths are between 16 and 17 mm when connecting conductors to this N-disconnect terminal block. Featuring conductor terminals along with CAGE CLAMP®, this product delivers reliable performance. Our trusted universal connection known as CAGE CLAMP® leads the way when it comes to connection technology and electrical interconnections. Depending on the conductor type, this N-disconnect terminal block is designed for conductor cross sections ranging from 0.2 mm² to 16 mm².
Specification
Electrical data - Ratings per IEC/EN
| Nominal voltage (III/3) | 400 V |
|---|---|
| Rated impulse withstand voltage (III / 3) | 6 kV |
| Rated current | 68 A |
| Legend (ratings) | (III / 3) ≙ Overvoltage category III / Pollution degree 3 |
Electrical data - Power Loss
| Power loss, per pole (potential) | 1.942 W |
|---|---|
| Rated current I<sub>N</sub> for power loss specification | 68 A |
| Resistance value for specified, current-dependent power loss | 0 Ω |
Electrical data - General information
| Wiring direction | Front-entry wiring |
|---|
Connection data
| Clamping units | 1 |
|---|---|
| Total number of potentials | 1 |
| Number of levels | 1 |
Connection data - Connection 1
| Connection technology | CAGE CLAMP® |
|---|---|
| Actuation type | Operating tool |
| Connectable conductor materials | Copper |
| Solid conductor | 0.2 … 16 mm² / 24 … 6 AWG |
| Fine-stranded conductor | 0.2 … 16 mm² / 24 … 6 AWG |
| Strip length | 16 … 17 mm / 0.63 … 0.67 inches |
| Wiring direction | Front-entry wiring |

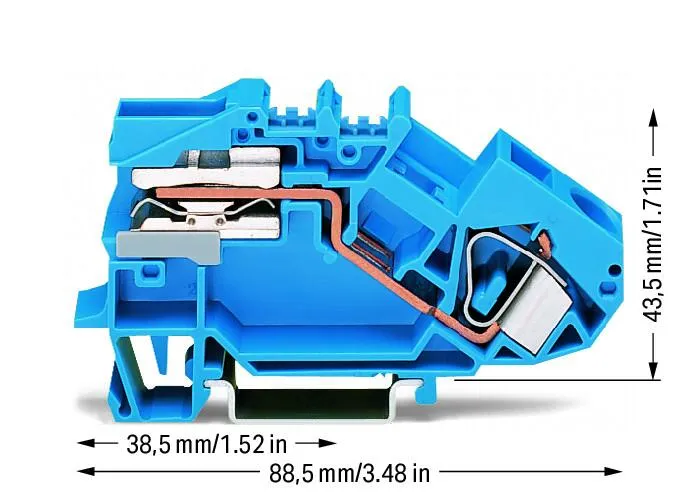

Physical data
| Width | 12 mm / 0.472 inches |
|---|---|
| Height | 88.5 mm / 3.484 inches |
| Depth from upper-edge of DIN-rail | 43.5 mm / 1.713 inches |
Mechanical data
| Design | angled |
|---|---|
| Mounting type | DIN-35 rail |
| Marking level | Center marking |
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | blue |
| Material group | I |
| Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 |
| Fire load | 0.586 MJ |
| Weight | 43.5 g |
Environmental requirements
| Processing temperature | -35 … +85 °C |
|---|---|
| Continuous operating temperature | -60 … +105 °C |
Commercial data
| Product Group | 17 (TOP JOB Installation Terminal Blocks) |
|---|---|
| PU (SPU) | 25 pcs |
| Packaging type | box |
| Country of origin | PL |
| GTIN | 4044918691451 |
| Customs tariff number | 85365080000 |
Product Classification
| UNSPSC | 39121410 |
|---|---|
| eCl@ss 10.0 | 27-14-11-38 |
| eCl@ss 9.0 | 27-14-11-38 |
| ETIM 9.0 | EC001257 |
| ETIM 10.0 | EC001257 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 7439-92-1 |
|---|---|
| REACH Candidate List Substance | Lead |
| RoHS Compliance Status | Compliant,No Exemption |
| RoHS Exemption | 7(a), 7(c)-I, 7(c)-II |
| SCIP notification number (Austria) | 80d380fd-d094-477a-a0e4-8ee7f1cde9bb |
| SCIP notification number (Belgium) | 3290cbd5-74f6-455f-842e-820f418db2f9 |
| SCIP notification number (Bulgaria) | f037f513-bbb2-421d-a4c6-3e6fc89e23e1 |
| SCIP notification number (Czech Republic) | cdc3151c-5d2e-41ff-b794-9edbbe007e62 |
| SCIP notification number (Denmark) | 1166e02e-de48-4454-b62d-77e15f9b4301 |
| SCIP notification number (Finland) | 3336b7c0-4cc4-4598-bbfd-a1e219b40a6f |
| SCIP notification number (France) | c30ce793-8937-4d10-9ace-adc4cf3674cb |
| SCIP notification number (Germany) | a169a6e3-6180-4d15-bc3f-4cfd6024970b |
| SCIP notification number (Hungary) | 6fcf01ab-d948-4595-b04a-f3ebf4456cc0 |
| SCIP notification number (Italy) | ea20259c-f0a2-4efc-8b97-5791bb971c58 |
| SCIP notification number (Netherlands) | 49941d5f-fef0-4297-8d7a-3a4416ac53a0 |
| SCIP notification number (Poland) | 9e8358f0-82b1-4896-a32a-8139c3592520 |
| SCIP notification number (Romania) | b07748db-2081-4e41-8a01-3f64a016cb09 |
| SCIP notification number (Sweden) | 4cb4d24f-9ad5-44e8-b190-5f7638ce48d8 |
