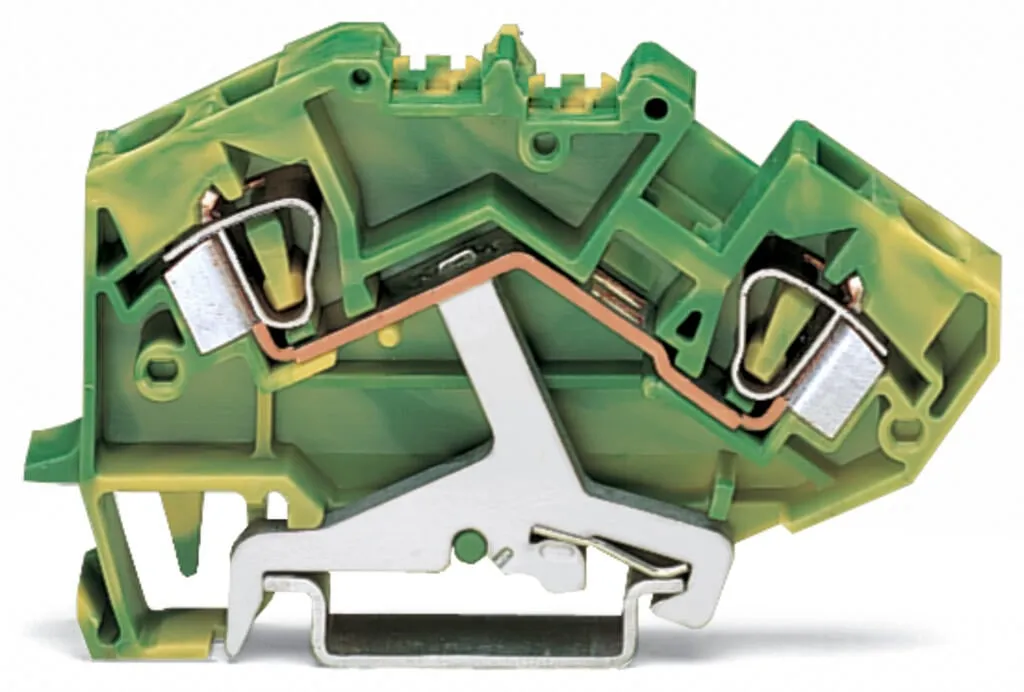

Wago 782-607
Ground terminal block, 782 Series, green-yellowConnect conductors quickly and safely with this ground terminal block (item number 782-607). Strip lengths must be between 12 and 13 mm when connecting…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Ground terminal block, 782 Series, green-yellowConnect conductors quickly and safely with this ground terminal block (item number 782-607). Strip lengths must be between 12 and 13 mm when connecting conductors to this ground terminal block. This product features conductor terminals and utilizes CAGE CLAMP®. Our reliable and maintenance-free CAGE CLAMP® connection makes it easy to connect all conductor types without having to prepare the conductor. For example, you don’t need to crimp ferrules. Depending on the conductor type, this ground terminal block is suitable for conductor cross sections ranging from 0.2 mm² to 6 mm².
Specification
Electrical data - Ratings per IEC/EN
| Ratings per | IEC/EN 60947-7-2 |
|---|---|
| Ratings per | IEC/EN 60947-7-2 / IEC/EN 60947-7-2 / IEC/EN 60947-7-2 |
| Overvoltage category | III / III / II |
| Pollution degree | 3 / 2 / 2 |
Electrical data - General information
| Wiring direction | Front-entry wiring |
|---|
Connection data
| Clamping units | 2 |
|---|---|
| Total number of potentials | 1 |
| Number of levels | 1 |
Connection data - Connection 1
| Connection technology | CAGE CLAMP® |
|---|---|
| Actuation type | Operating tool |
| Connectable conductor materials | Copper |
| Solid conductor | 0.2 … 6 mm² / 24 … 10 AWG |
| Fine-stranded conductor | 0.2 … 6 mm² / 24 … 10 AWG |
| Strip length | 12 … 13 mm / 0.47 … 0.51 inches |
| Wiring direction | Front-entry wiring |

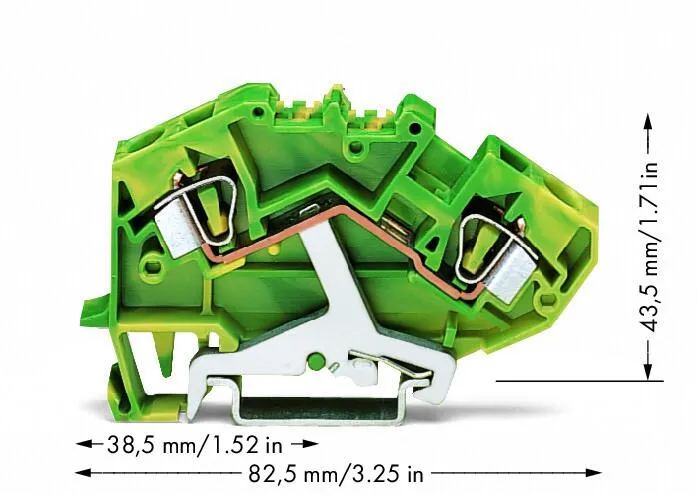

Physical data
| Width | 8 mm / 0.315 inches |
|---|---|
| Height | 82.5 mm / 3.248 inches |
| Depth from upper-edge of DIN-rail | 43.5 mm / 1.713 inches |
Mechanical data
| Design | angled |
|---|---|
| Mounting type | DIN-35 rail |
| Marking level | Center marking |
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | green-yellow |
| Material group | I |
| Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 |
| Fire load | 0.279 MJ |
| Weight | 25.7 g |
Environmental requirements
| Processing temperature | -35 … +85 °C |
|---|---|
| Continuous operating temperature | -60 … +105 °C |
Commercial data
| PU (SPU) | 25 pcs |
|---|---|
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4045454084721 |
| Customs tariff number | 85369010000 |
Product Classification
| UNSPSC | 39121410 |
|---|---|
| eCl@ss 10.0 | 27-14-11-41 |
| eCl@ss 9.0 | 27-14-11-41 |
| ETIM 9.0 | EC000901 |
| ETIM 10.0 | EC000901 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 7439-92-1 |
|---|---|
| REACH Candidate List Substance | Lead |
| RoHS Compliance Status | Compliant,No Exemption |
| RoHS Exemption | 7(a), 7(c)-I, 7(c)-II |
| SCIP notification number (Austria) | 74b73ee2-0416-44d8-8f35-24b968b0d2b9 |
| SCIP notification number (Belgium) | 02152cd1-1258-482a-9cfe-e7a3d0733bf9 |
| SCIP notification number (Bulgaria) | b9980cb7-800d-424f-b982-21e9f6dcce4f |
| SCIP notification number (Czech Republic) | 7887094e-0c86-4606-849a-e58542db97d8 |
| SCIP notification number (Denmark) | 54c15556-116f-4701-b7b9-da8ef45583f9 |
| SCIP notification number (Finland) | 048bec5b-ed6a-4ab9-8a7d-a842aef4d5c9 |
| SCIP notification number (France) | ac83cb41-3c3a-4425-83f5-f50cecb35d6c |
| SCIP notification number (Germany) | 077bdfcb-f4c9-4fb6-81e8-27db6ed92626 |
| SCIP notification number (Hungary) | d59df39b-9572-4611-b0e4-8677b0cb64ff |
| SCIP notification number (Italy) | 86c7fd45-919d-4b22-a9e8-1e8125229fbd |
| SCIP notification number (Netherlands) | 46881da0-c64e-4479-a597-f7d469f97608 |
| SCIP notification number (Poland) | 2f790791-56cc-4cdd-b43d-3fa2b751f7f3 |
| SCIP notification number (Romania) | eed90241-4620-43b0-8469-54c394d9db07 |
| SCIP notification number (Sweden) | 7d58a871-9db0-4bfb-bf40-e38fbf75feb7 |
