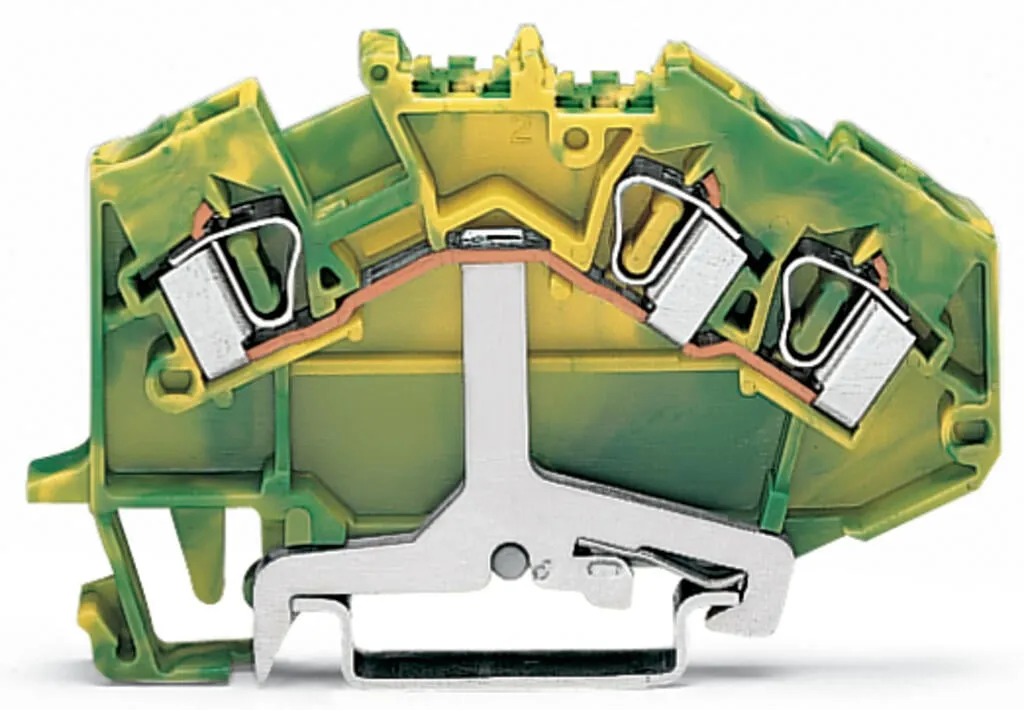

Wago 781-637/999-950
Ground terminal block, 781 Series, green-yellowOur ground terminal block (item number 781-637/999-950) makes connections quick and easy. Conductors can only be connected to this ground terminal block…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Ground terminal block, 781 Series, green-yellowOur ground terminal block (item number 781-637/999-950) makes connections quick and easy. Conductors can only be connected to this ground terminal block if their strip length is between 9 and 10 mm . Featuring conductor terminals along with CAGE CLAMP®, this connector is highly versatile. Our CAGE CLAMP® connection offers a safe and maintenance-free way to connect all types of conductors. You do not need to prepare the conductor in any way, such as crimping ferrules. This ground terminal block is suitable for conductor cross sections ranging from 0.08 mm² to 4 mm².
Specification
Electrical data - Ratings per IEC/EN
| Ratings per | IEC/EN 60947-7-2 |
|---|---|
| Ratings per | IEC/EN 60947-7-2 / IEC/EN 60947-7-2 / IEC/EN 60947-7-2 |
| Overvoltage category | III / III / II |
| Pollution degree | 3 / 2 / 2 |
Electrical data - Ex information
| Reference to hazardous areas | See “Downloads – Documentation – Additional Information: Technical Section; Technical Explications” |
|---|
Electrical data - General information
| Wiring direction | Front-entry wiring |
|---|
Connection data
| Clamping units | 3 |
|---|---|
| Total number of potentials | 1 |
| Number of levels | 1 |
Connection data - Connection 1
| Connection technology | CAGE CLAMP® |
|---|---|
| Actuation type | Operating tool |
| Connectable conductor materials | Copper, Aluminum |
| Solid conductor | 0.08 … 4 mm² / 28 … 12 AWG |
| Fine-stranded conductor | 0.08 … 4 mm² / 28 … 12 AWG |
| Strip length | 9 … 10 mm / 0.35 … 0.39 inches |
| Wiring direction | Front-entry wiring |
Physical data
| Width | 6 mm / 0.236 inches |
|---|---|
| Height | 77 mm / 3.031 inches |
| Depth from upper-edge of DIN-rail | 43.5 mm / 1.713 inches |
Mechanical data
| Design | angled |
|---|---|
| Mounting type | DIN-35 rail |
| Marking level | Center marking |
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | green-yellow |
| Material group | I |
| Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 |
| Fire load | 0.196 MJ |
| Weight | 18.1 g |
Environmental requirements
| Processing temperature | -35 … +85 °C |
|---|---|
| Continuous operating temperature | -60 … +105 °C |
Commercial data
| PU (SPU) | 50 pcs |
|---|---|
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4045454092672 |
| Customs tariff number | 85369010000 |
Product Classification
| UNSPSC | 39121410 |
|---|---|
| eCl@ss 10.0 | 27-14-11-41 |
| eCl@ss 9.0 | 27-14-11-41 |
| ETIM 9.0 | EC000901 |
| ETIM 10.0 | EC000901 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 7439-92-1 |
|---|---|
| REACH Candidate List Substance | Lead |
| RoHS Compliance Status | Compliant,No Exemption |
| RoHS Exemption | 6(c), 7(a), 7(c)-I, 7(c)-II |
| SCIP notification number (Austria) | ad5a1fa0-f188-4cac-a0cc-6cad04edc2a8 |
| SCIP notification number (Belgium) | 692ab441-0939-497a-9596-e4643876b11c |
| SCIP notification number (Bulgaria) | e7b504e6-36b2-4f30-8224-34c66b10f0e5 |
| SCIP notification number (Czech Republic) | a4a0c4a1-818d-4ced-ac82-4d1ee997672e |
| SCIP notification number (Denmark) | fa36708b-61b4-4e93-8213-dbde53048a9a |
| SCIP notification number (Finland) | ac2faf82-08b9-4252-a00e-ae187802bbf3 |
| SCIP notification number (France) | a6465b1d-affc-474a-871b-150bb8e81e53 |
| SCIP notification number (Germany) | 4d05599b-b4f2-410d-a707-b09801a6f7ad |
| SCIP notification number (Hungary) | 1b9b9e0a-ab1a-4a32-871c-49621440e57c |
| SCIP notification number (Italy) | e71fd531-8d01-4c14-ab82-3980f1ef8a9b |
| SCIP notification number (Netherlands) | ca171646-efab-406e-aa4f-0985df8d5be4 |
| SCIP notification number (Poland) | bf293dc1-98c4-4936-b30e-f5a970844b87 |
| SCIP notification number (Romania) | 84996f17-42db-4030-84f5-07505417d55b |
| SCIP notification number (Sweden) | 83d7b5f5-4266-4ce9-a109-4eefd25e1b11 |
