Wago 780-458

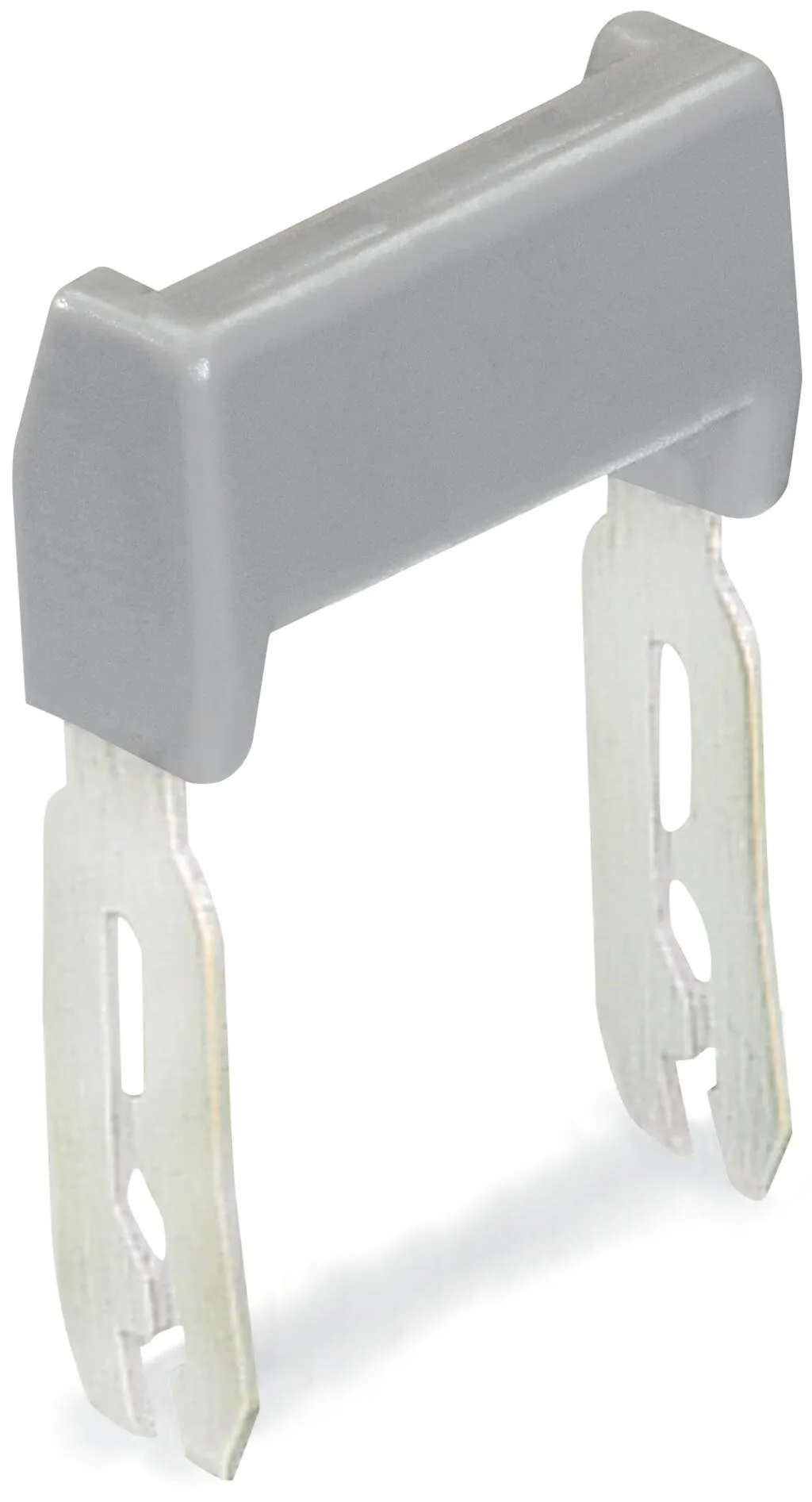

Staggered jumper; from 1 to 8; insulated; gray 780-458
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Staggered jumper; from 1 to 8; insulated; gray 780-458
Specification
Electrical data - Ratings per IEC/EN
| Nominal voltage (III/3) | 400 V |
|---|---|
| Rated impulse withstand voltage (III / 3) | 6 kV |
| Rated current | 24 A |
Physical data
| Width | 34.5 mm / 1.358 inches |
|---|---|
| Height | 6 mm / 0.236 inches |
| Jumper assignment | 1-8 |
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | gray |
| Fire load | 0.024 MJ |
| Weight | 2.7 g |
Commercial data
| PU (SPU) | 50 (25) pcs |
|---|---|
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4044918271097 |
| Customs tariff number | 85366990990 |
Product Classification
| UNSPSC | 39121410 |
|---|---|
| eCl@ss 10.0 | 27-14-11-40 |
| eCl@ss 9.0 | 27-14-11-40 |
| ETIM 9.0 | EC000489 |
| ETIM 10.0 | EC000489 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
