Wago 774-5001/104-000

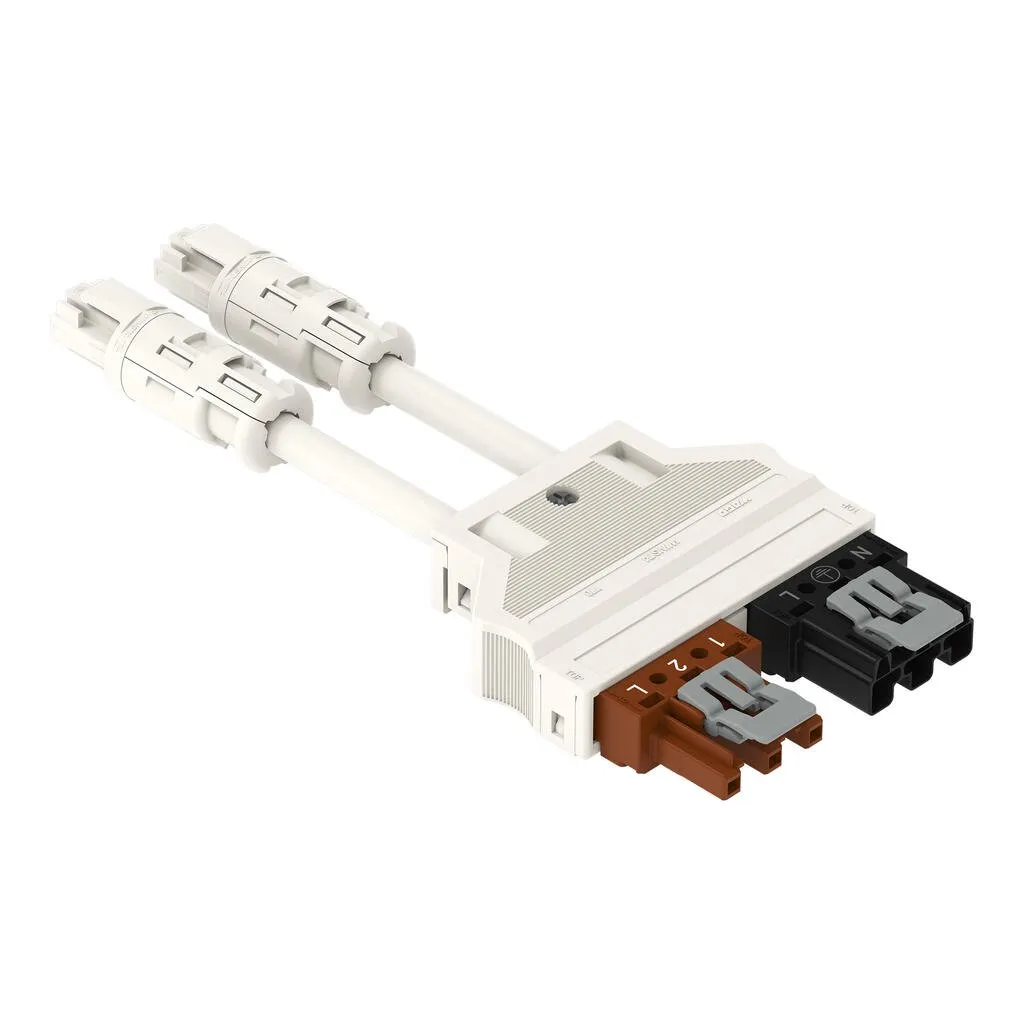

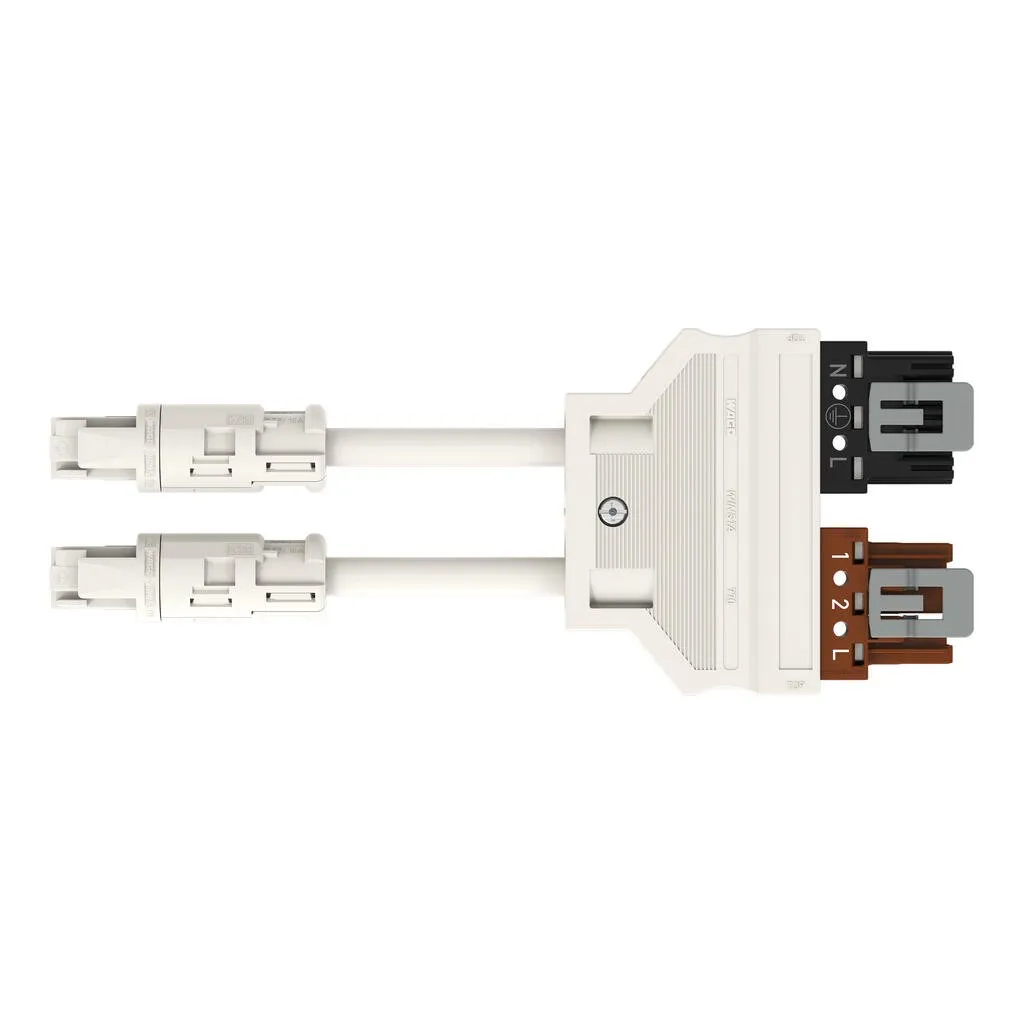

Cable assembly WINSTA® RD A codingThe WINSTA® RD cable assembly with protection type IP20 is the pluggable solution for your application in control cabinets, for lighting connections or on PCBs. WAGO pluggable installation connectors can be used when requirements repeat or are distributed on a specific grid, for example for installing grid lighting or flush-mount lighting. The coding options reduce installation errors, allowing fast, secure wiring of all components. The pluggable installation connector is protected in accordance with protection type IP20 (When mated: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!)). This means that users’ fingers will never come into contact with live contact elements. The WINSTA® RD offers a round design that is very good for installation in conduits with an inner diameter of 20 mm, for example in the prefabricated house sector. Of course, the safety of buildings must always be ensured, even after the electrical installation has been performed. The mandatory safety requirements in connection with EU CPR are met by this product through fire class E.Fast, secure pluggable connections – cable assemblies from WAGOThe cable is pre-assembled with a RD socket, a RD socket, a MIDI plug and a MIDI socket. WINSTA® is the pluggable connection system that is optimally tailored to the strict requirements of electrical installation. It ensures fast, secure and, above all, error-free installation of components and cables. Take advantage of the pluggable version of our maintenance-free spring pressure connection technology too! Plan your installation with with fire class E from WAGO. protection against mismating eliminates errorsproducts perfectly tailored to your requirements guarantee safe usewith A coding for use in many general mains applicationsready for immediate userapid, structured electrical installation
