Wago 773-168

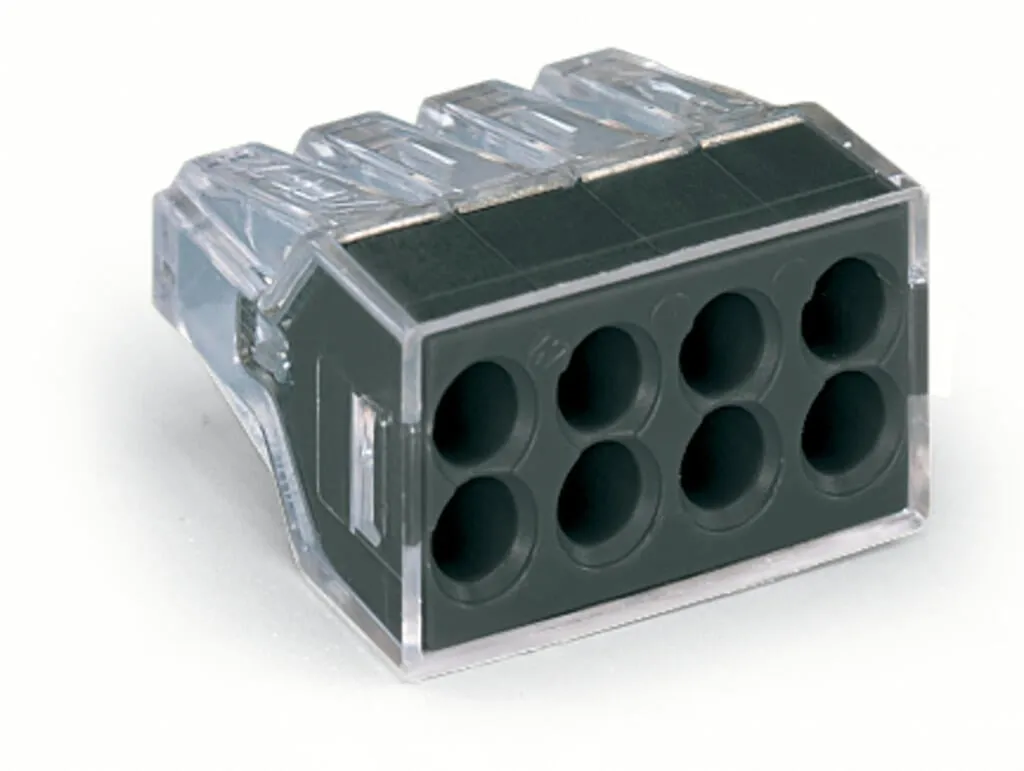

Push wire® splicing connector, 773 Series, transparentEnjoy easy electrical installations with push wire® splicing connector (item number 773-168). The 773 Series PUSH WIRE® connectors for junction bo…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Push wire® splicing connector, 773 Series, transparentEnjoy easy electrical installations with push wire® splicing connector (item number 773-168). The 773 Series PUSH WIRE® connectors for junction boxes provide safe, quick, and easy installations in any building, no matter the position or location. Ensure that the strip lengths are 12 mm when connecting conductors to push wire® splicing connector. This splicing connector has a rated voltage of 400 V and can handle currents up to 24 A, making it ideal for high-load applications. This product incorporates conductor terminals and utilizes PUSH WIRE®. Our trusted PUSH WIRE® connection offers the fastest method for clamping conductors. It utilizes the conductor’s stiffness to overcome the clamping spring’s contact force. The item’s dimensions are (24 x 13.1 x 19.5) mm (width x height x depth). Push wire® splicing connector is suitable for conductor cross sections ranging from 0.75 mm² to 2.5 mm².The contact surface is coated with tin.
Specification
Notes
| General safety information | NOTICE: Observe installation and safety instructions!Only to be used by electricians!Do not work under voltage/load!Use only for proper use!Observe national regulations/standards/guidelines!Observe technical specifications for the products!Observe the number of permissible potentials!Do not use damaged/dirty components!Observe conductor types, cross-sections and strip lengths!Insert conductor until it hits the product‘s backstop!Use original accessories!To be sold only with installation instructions! |
|---|---|
| Safety Information | in grounded power lines |
Electrical data - General information
| Wiring direction | Side-entry wiring |
|---|
Connection data - Connection 1
| Connection technology | PUSH WIRE® |
|---|---|
| Actuation type | Push-in |
| Connectable conductor materials | Copper, Aluminum |
| Connectable conductor materials (note) | Terminating Aluminum Conductors (not for use in North America) WAGO Spring-Clamp Terminal Blocks are also suitable for solid aluminum conductors up to 4 mm²/12 AWG if WAGO “Alu-Plus” Contact Paste 249-130 is used for termination.“Alu-Plus” Contact Paste Advantages:Automatically destroys the oxide film during clamping.Prevents fresh oxidation at the clamping point.Prevents electrolytic corrosion between aluminum and copper conductors (in the same terminal block).Provides long-term protection against corrosion.For spring pressure connections with PUSH WIRE® connection technology, WAGO recommends that the aluminum conductor first be cleaned and then immediately inserted into the clamping unit filled with “Alu-Plus” contact paste.It is also possible to apply WAGO “Alu-Plus” additionally on the whole surface of the aluminum conductor before termination.Please note that the nominal currents must be adapted to the reduced conductivity of the aluminum conductors:2.5 mm² = 16 A4 mm² = 22 A |
| Solid conductor | 0.75 … 2.5 mm² / 18 … 12 AWG |
| Stranded conductor | 1.5 … 2.5 mm² / 16 … 12 AWG |
| Strip length | 12 mm / 0.47 inches |
| Wiring direction | Side-entry wiring |
Physical data

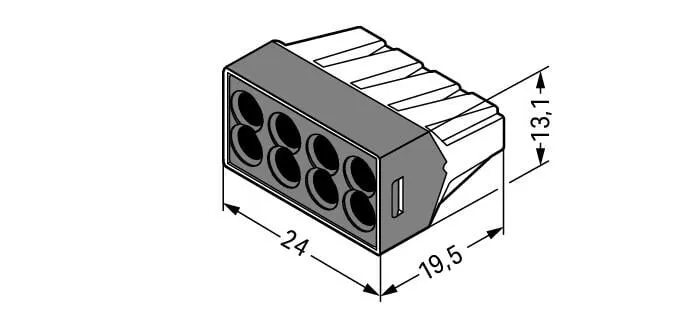

| Width | 24 mm / 0.945 inches |
|---|---|
| Height | 13.1 mm / 0.516 inches |
| Depth | 19.5 mm / 0.768 inches |
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | transparent |
| Cover color | dark gray |
| Material group | IIIa |
| Insulation material (main housing) | Polycarbonate (PC) |
| Clamping spring material | Chrome-nickel spring steel (CrNi) |
| Contact material | Electrolytic copper (ECu) |
| Contact plating | Tin |
| Fire load | 0.99 MJ |
Environmental requirements
| Ambient temperature (operation) | +60 °C |
|---|---|
| Continuous operating temperature | 105 °C |
Commercial data
| PU (SPU) | 6 (1) pcs |
|---|
Product Classification
| UNSPSC | 39121409 |
|---|---|
| ETIM 9.0 | EC000446 |
| ETIM 10.0 | EC000446 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
