Wago 773-116

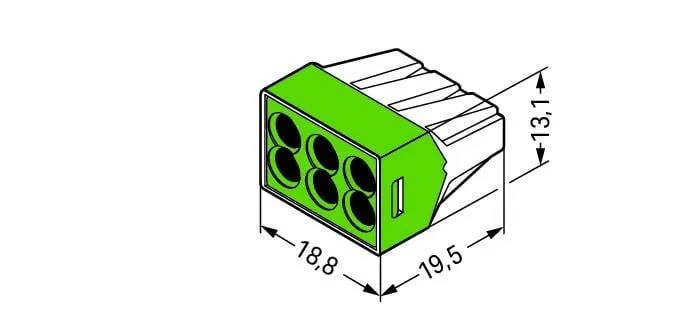

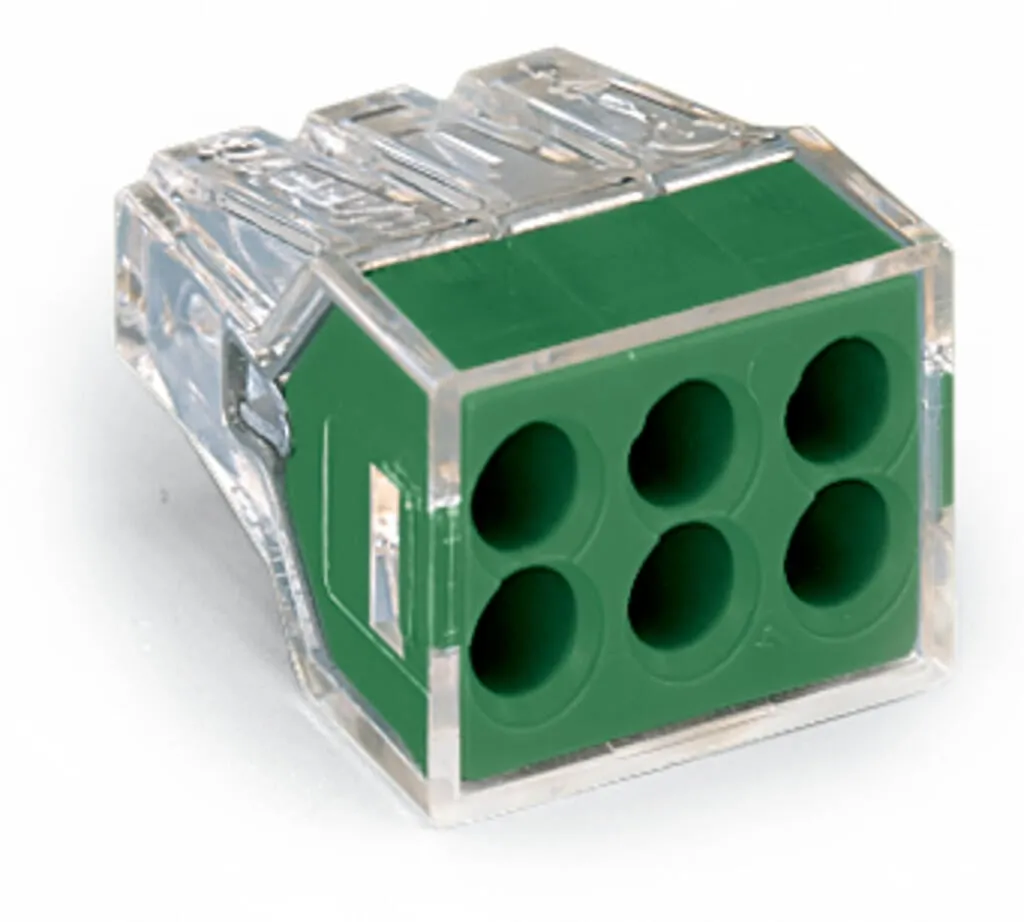

Push wire® splicing connector, 773 Series, transparentOur push wire® splicing connector (item number 773-116) is designed for seamless electrical installations. This series of PUSH WIRE® connectors ensures safe and quick connections in both surface-mounted and flush-mounted junction boxes in any building, regardless of installation complexity. Ensure that the strip lengths are 12 mm  when connecting conductors to push wire® splicing connector. Rated current and voltage are important parameters when selecting a splicing connector, as they determine the product’s suitability for different applications. This product has a rated voltage of 400 V and a rated current of 24 A, making it suitable for high-load applications. This product features conductor terminals and utilizes PUSH WIRE®. Our PUSH WIRE® connection uses the stiffness of the conductor to overcome the clamping spring’s contact force, allowing you to clamp the conductor in place more quickly and easily. The item’s dimensions are (18.8 x 13.1 x 19.5) mm (width x height x depth). Depending on the type of conductor, push wire® splicing connector is suitable for conductor cross sections ranging from 0.75 mm² to 2.5 mm².The contact surface is coated with tin.
