Wago 770-895/080-000

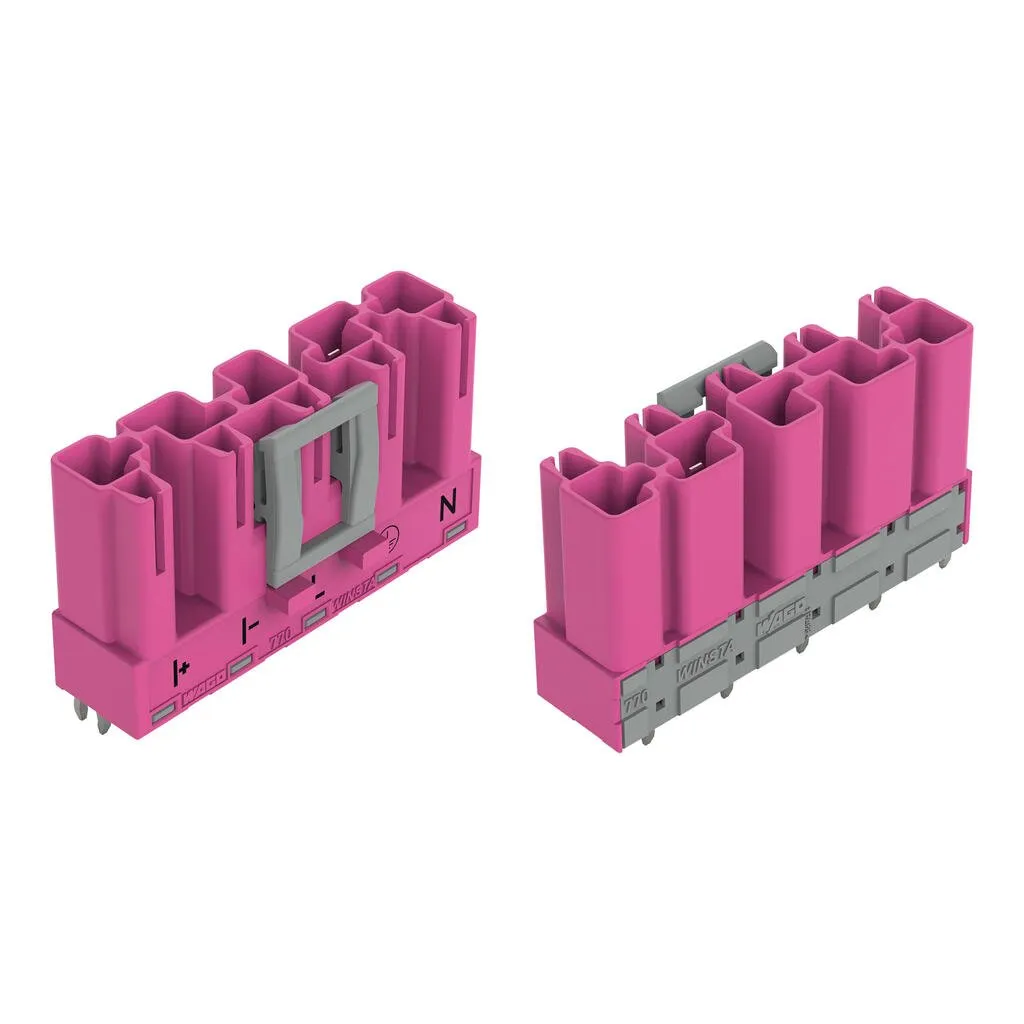

Male connector/plug WINSTA® MIDI B codingThe WINSTA® MIDI male connector/plug B coding is economical and space thanks to its compact dimensions. The pluggable PCB connectors with spring pressure connection technology and Push-in CAGE CLAMP® technology from WAGO allow fast, vibration-proof, maintenance-free terminal connections. For greater security in electrical installations, the pcb connectors is equipped with mechanical protection against mismating. Electrical drives, such as those used in sun protection systems or shading systems, can be activated via the SMI protocol. B coding enables the WINSTA® MIDI pcb connectors to be used for control in applications in the domains of automation, mechanical engineering and robotics. The rated current and voltage are important criteria for selecting a pcb connectors: They tell us about the product’s domains of use. This product has a current rating of 25 A – as a result it is suitable for high power loads. The WINSTA® MIDI Pluggable Connection System with Push-in CAGE CLAMP® spring pressure connection technology facilitates exemplary electrification. Thanks to the built-in test slot, it is possible to check connections even when they are plugged in. This saves time, labor, and money.WINSTA® MIDI solutions for your electrical installation – protected against mismating and maintenance-freeThe WINSTA® Pluggable Connection System is perfectly tailored to the very strict requirements of building installation. It makes electrical installation pluggable, and thus more efficient, even more reliable, and error-free. Using this pre-assembled system decreases assembly times and errors during installation at the construction site. Take advantage of the pluggable version of our maintenance-free spring pressure connection technology too! Plan your installation with with protection against mismating from WAGO. pcb connectors with protection against mismatingsimple circuitsfor automation controllersquick replacement of defective units during ongoing operation
