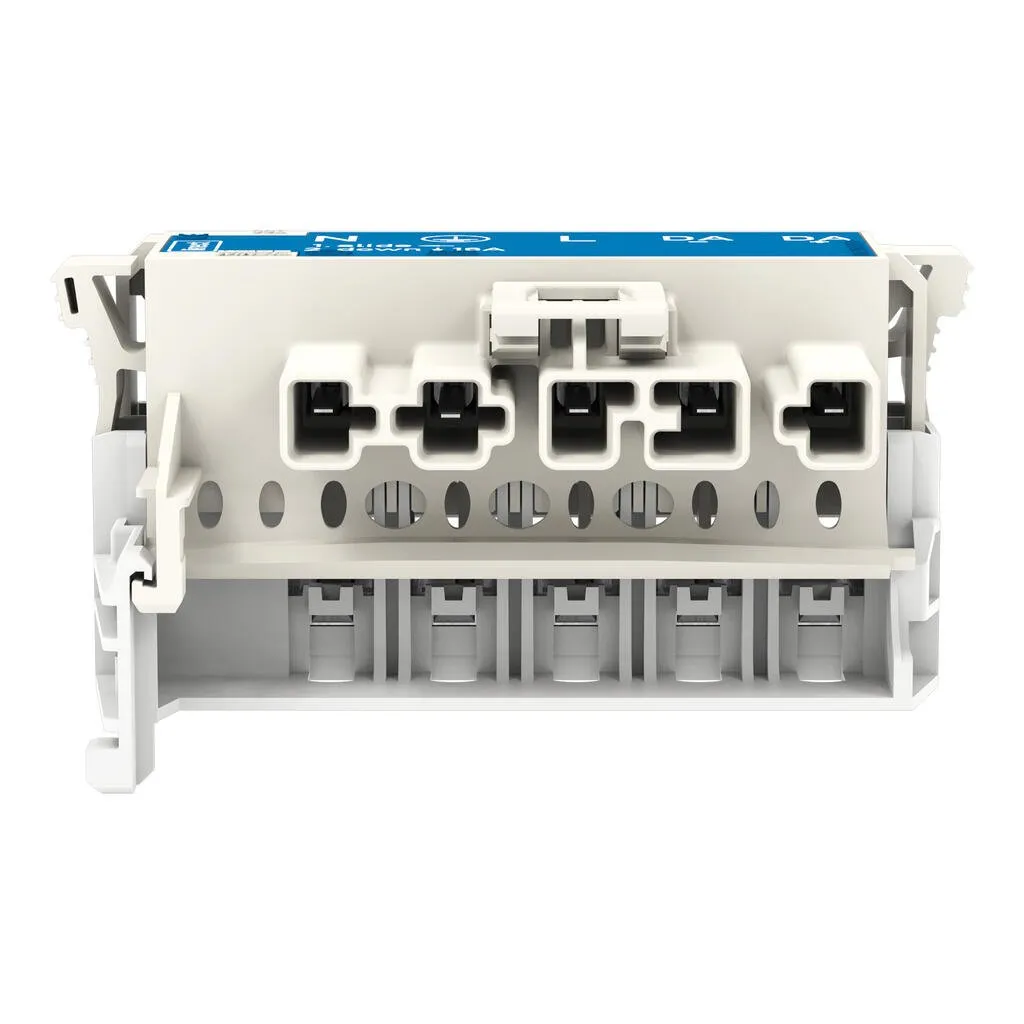

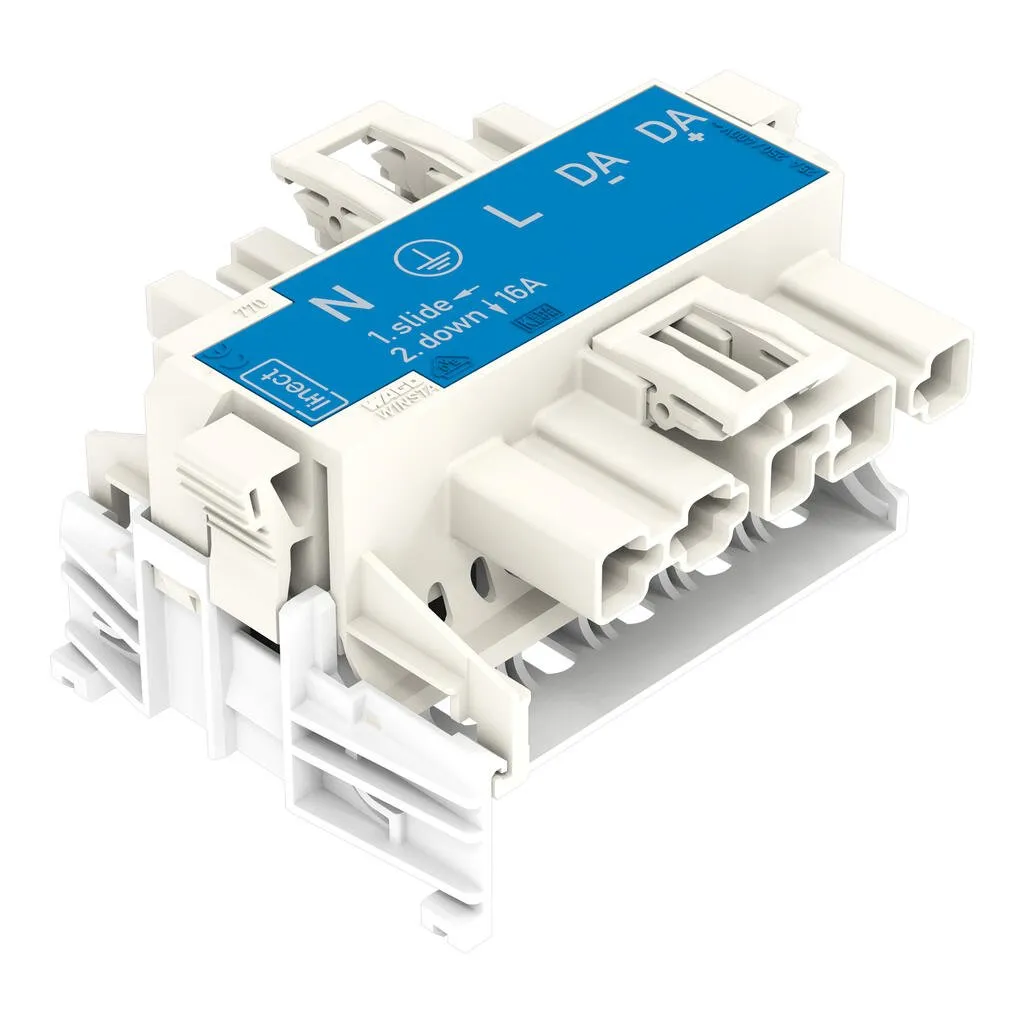

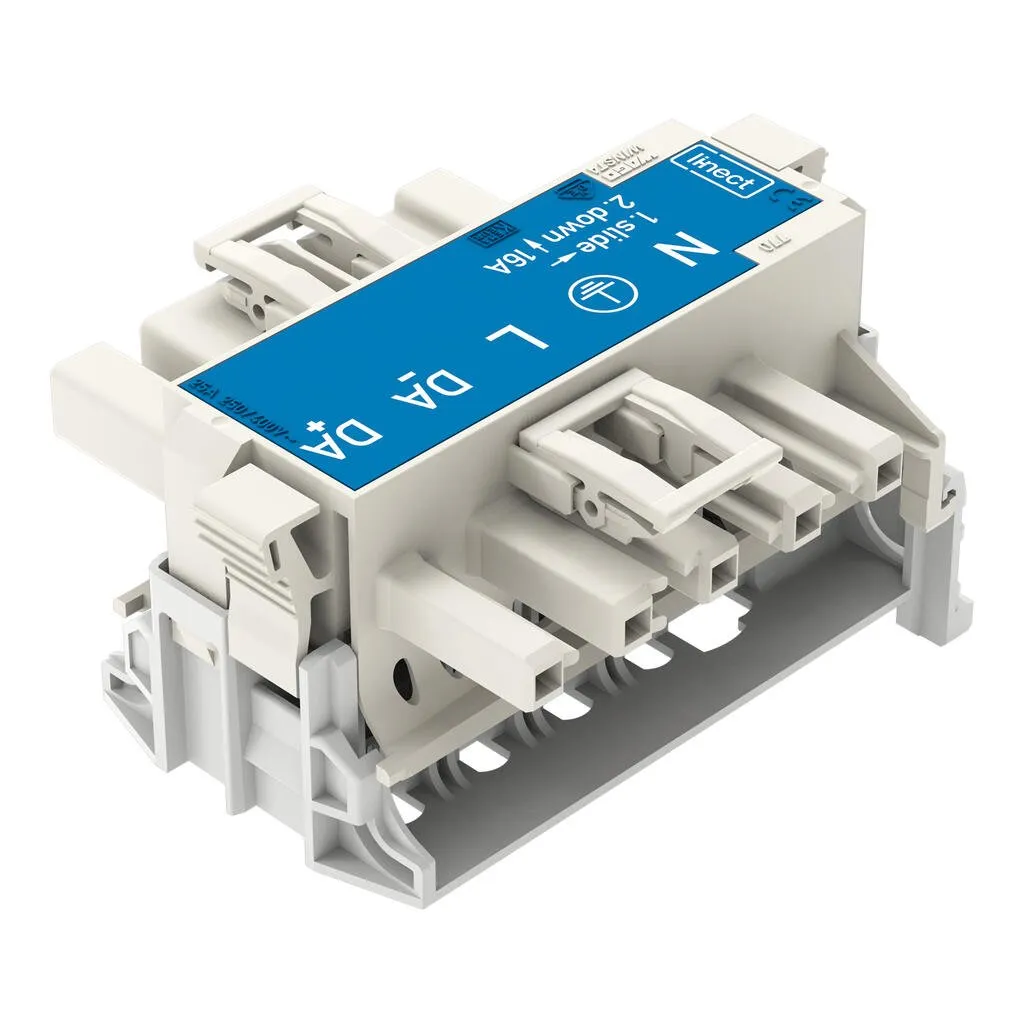

Wago 770-7105
Distribution connector WINSTA® MIDI I codingFor power and signal transmission: The WINSTA® MIDI distribution connector with locking latch. WAGO pluggable installation connectors can be used when crite…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Distribution connector WINSTA® MIDI I codingFor power and signal transmission: The WINSTA® MIDI distribution connector with locking latch. WAGO pluggable installation connectors can be used when criteria repeat or are distributed on a specific pattern, for example for installing grid lighting or flush-mount lighting. The coding options reduce installation errors, allowing fast, maintenance-free wiring of all components. The pluggable installation connector is protected in accordance with protection type IP20 (When mated: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!)). That results in the fact that users’ fingers will never come into contact with live contact elements. Controlled lighting equipment, as implemented with the DALI standard, for instance, is the main use of WINSTA® MIDI pluggable installation connectors with I coding. This pluggable installation connector can be used for a voltage load of up to 25 A. Therefore, it can also be used for high power loads. The WINSTA® MIDI Pluggable Connection System with Push-in CAGE CLAMP® spring pressure connection technology facilitates safe electrification. Due to the built-in test slot, it is possible to check connections even when they are plugged in. This saves time, labor, and money.Push-in CAGE CLAMP® spring pressure connection technology – pluggable installation instead of laborious screw connections!WINSTA® is the pluggable connection system that is ideally tailored to the strict requirements of electrical installation. It offers fast, secure and, above all, error-free installation of components and cables. Enjoy the benefits of the pluggable version of our maintenance-free spring pressure connection technology too! Plan your installation with with locking lever from WAGO. pluggable installation connectors with protection against mismatingfor automation controllerswith I coding for use in the automation of buildings (lighting control)exact dimensionsrapid, structured electrical installation
Specification

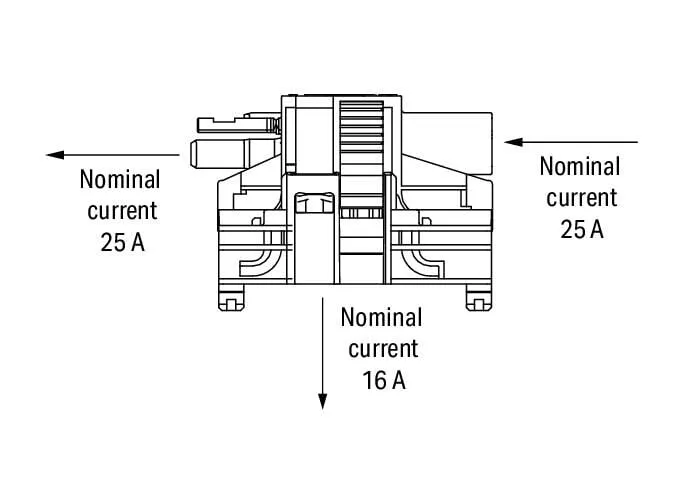

Electrical data - Ratings per IEC/EN
| Ratings per | IEC/EN 60664-1 |
|---|---|
| Nominal voltage (III/3) | 400 V |
| Rated impulse withstand voltage (III / 3) | 6 kV |
| Rated current | 25 A |
| Legend (ratings) | (III / 3) ≙ Overvoltage category III / Pollution degree 3 |
| Ratings per | IEC/EN 60664-1 / IEC/EN 60664-1 / IEC/EN 60664-1 |
| Overvoltage category | III / III / II |
| Pollution degree | 3 / 2 / 2 |
| Nominal voltage | 400 V |
| Rated impulse withstand voltage | 6 kV |
| Rated current | 25 A |
Electrical data - Ratings per IEC/EN 2
| Rated current | 16 A |
|---|
Electrical data - Ratings per UL 1977
| Note for the US market | Some versions may also be used for current interruption in accordance with the UL certificate in select applications with currents below 16 A and voltages up to 600 V. For further information, please contact your local sales office. |
|---|---|
| Rated voltage (UL 1977) | 600 V |
| Rated current UL 1977 | 23 A |
| Approvals per | UL 1977 |
| Rated voltage | 600 V |
| Rated current | 23 A |
Electrical data - General information
| Note on contact resistance | approx. 1 mΩ of contact resistance approx. 0.25 mΩ contact transition plug/socket |
|---|
Connection data
| Total number of potentials | 5 |
|---|---|
| PE function | Preceding PE contact |
Connection data - Connection 1
| Pole number | 5 |
|---|

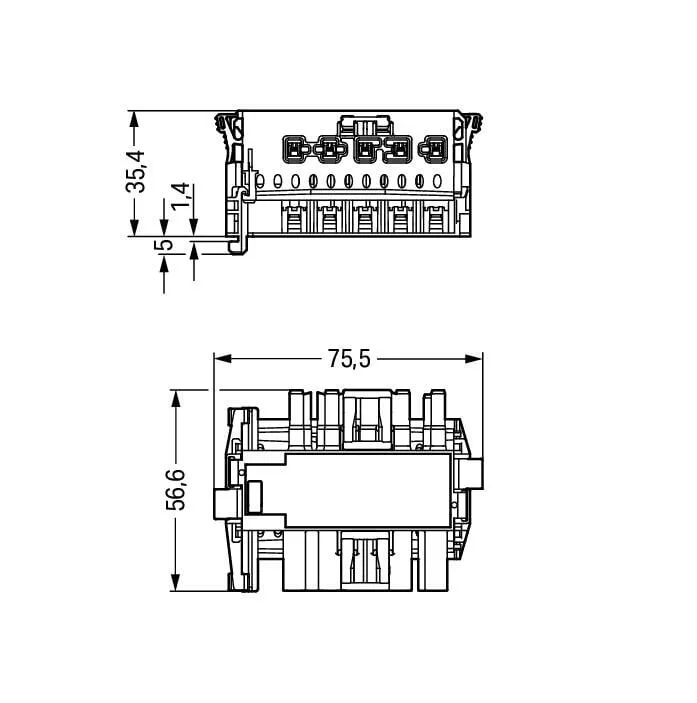

Physical data
| Pin spacing | 10 mm / 0.394 inches |
|---|---|
| Width | 75.5 mm / 2.972 inches |
| Height | 40.5 mm / 1.594 inches |
| Depth | 56.6 mm / 2.228 inches |
Mechanical data
| Use | DALI, Lighting Management |
|---|---|
| Coding | I |
| Variable coding | No |

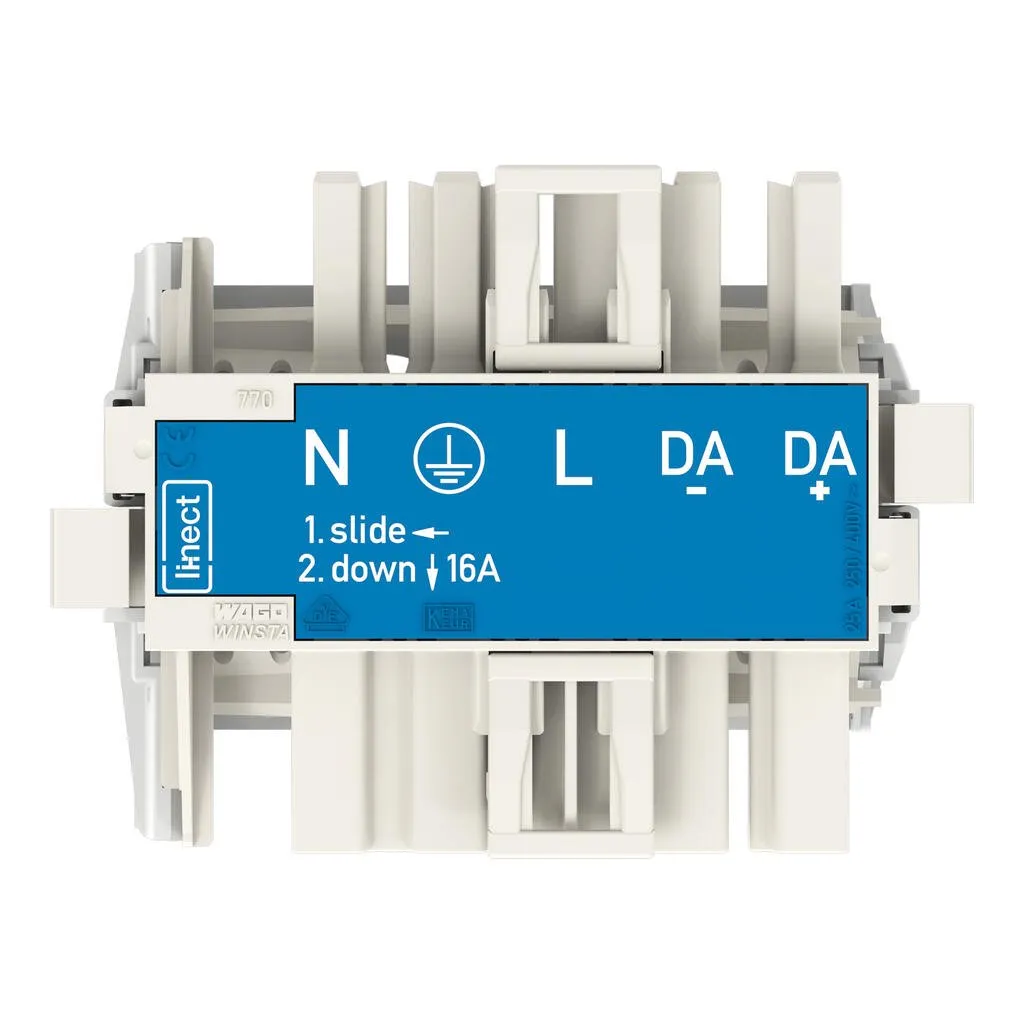

| Marking | N ⏚ L DA- DA+ |
| Potential marking | N ⏚ L DA- DA+ |
| Mating force of a plug-in connection | approx. 20 … 70 N (depending on pole number) |
| Retention force of a plug-in connection | When locked: > 80 N |
| Unmating force of a plug-in connection | Unlocked: approx. 20 … 70 N (depending on pole number) |
| Number of mating cycles | 200, without resistive load |
| Type of distribution box | Linect® T-connector |
| Protection type | IP20; When mated: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!) |
Plug-in connection
| Contact type (pluggable connector) | Socket/plug |
|---|---|
| Mismating protection | Yes |
| Note on mismating protection | All WINSTA® components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180 c.) plugging while laterally staggeredd.) plugging one pole |
| Locking lever | yes |
| Locking of plug-in connection | locking lever |
| Note on locking system | All connectors for mounted installations (snap-in versions for lighting fixtures or devices, all types of PCB and distribution connectors) are factory-equipped with locking levers to ensure plugs and sockets are securely locked. Additional locking levers are only required for flying leads (plug/socket). |
| Number of locking levers | 2 |
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | blue |
| Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 |
| Contact material | Copper or copper alloy; surface-treated |
| Contact plating | Tin |
| Fire load | 0.921 MJ |
| Weight | 41.1 g |
Environmental requirements
| Processing temperature | -5 … +40 °C |
|---|---|
| Continuous operating temperature | -35 … +85 °C |
| Note on continuous operating temperature | Insulating parts for temperatures ≤ 105 °C |
Commercial data
| Product Group | 20 (Winsta) |
|---|---|
| PU (SPU) | 20 pcs |
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4050821000402 |
| Customs tariff number | 85366990990 |
Product Classification
| UNSPSC | 39121421 |
|---|---|
| eCl@ss 10.0 | 27-44-06-02 |
| eCl@ss 9.0 | 27-44-06-02 |
| ETIM 9.0 | EC002566 |
| ETIM 10.0 | EC002566 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 131651-65-5, 144317-44-2, 220133-51-7, 220689-12-3, 25628-08-4, 29420-49-3, 375-73-5, 503155-89-3, 507453-86-3, 68259-10-9 |
|---|---|
| REACH Candidate List Substance | Perfluorobutane sulfonic acid (PFBS) and its salts |
| RoHS Compliance Status | Compliant,No Exemption |
| RoHS Exemption | 6(c), 7(a), 7(c)-I, 7(c)-II |
| SCIP notification number (Austria) | aa3b6b25-f159-40f1-a839-e1990ac0087b |
| SCIP notification number (Belgium) | bcf0ed1b-d2a6-4a15-91c2-45ae1524391f |
| SCIP notification number (Bulgaria) | dbdffb0b-896d-4af5-b33e-5eb27c5db145 |
| SCIP notification number (Czech Republic) | 8052bba5-64ab-4f5a-8b8d-f6681f6ea87f |
| SCIP notification number (Denmark) | d826f846-ffc0-45ec-8f78-7bfa92767954 |
| SCIP notification number (Finland) | 869c621f-fad1-4816-939a-47b54190a9d5 |
| SCIP notification number (France) | d37e6c09-29cc-4a56-be50-cbb191446213 |
| SCIP notification number (Germany) | 5ebc786a-dbd2-4400-bb7c-e0c1fa629f38 |
| SCIP notification number (Hungary) | 7213a003-02ce-44cd-bdc2-6e6d9383b7bf |
| SCIP notification number (Italy) | 2ecf5e19-e915-48cd-9818-4af8aff3683a |
| SCIP notification number (Netherlands) | c18f3f94-d952-49e5-9bb3-ddb3e09e3002 |
| SCIP notification number (Poland) | 6dceed6d-7204-4b16-a37f-b18fb3105e39 |
| SCIP notification number (Romania) | 3454d912-995e-4c6d-9a6c-d48de76b0dde |
| SCIP notification number (Sweden) | 098d4581-1b9b-42d8-aea6-2a13e298b5df |
