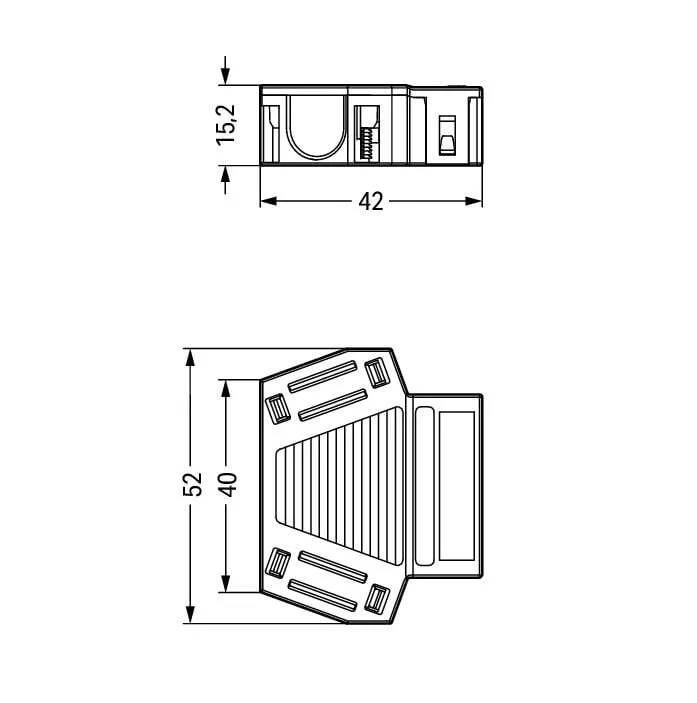

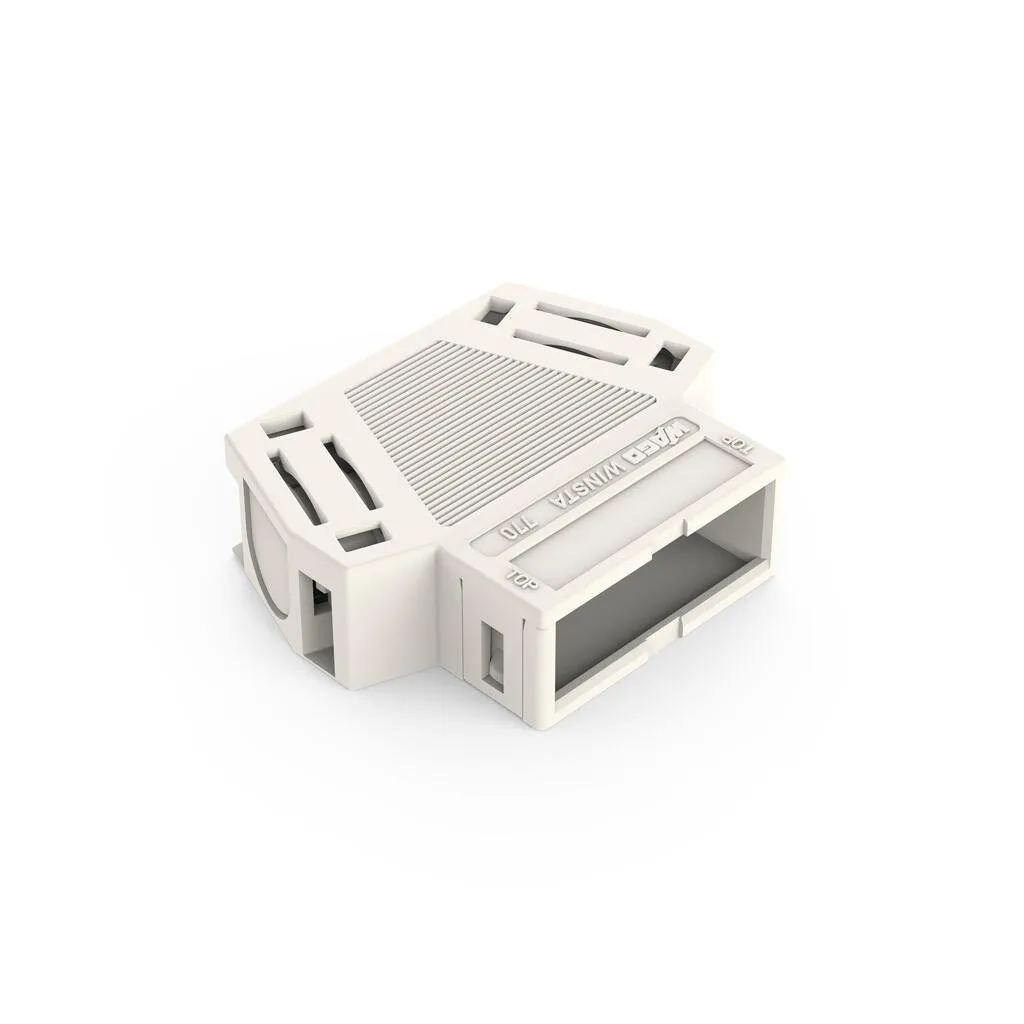

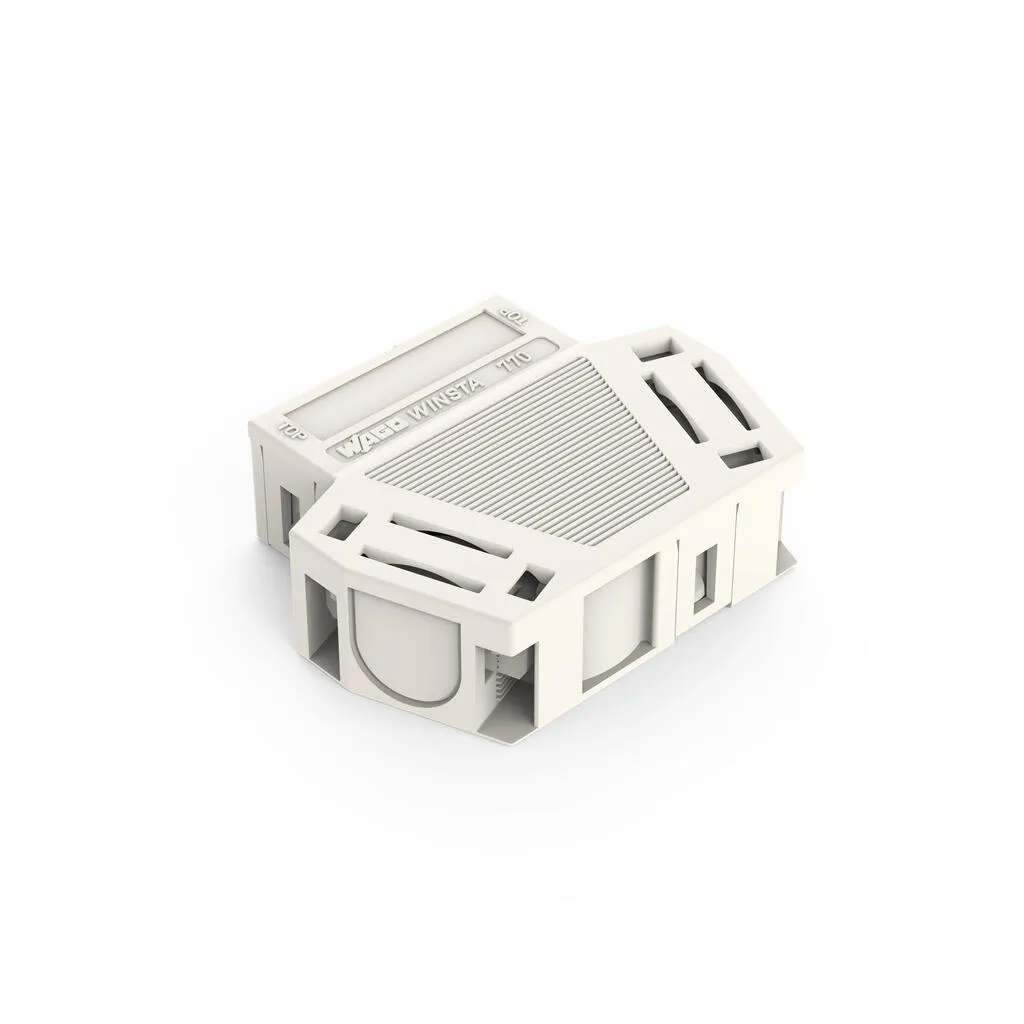

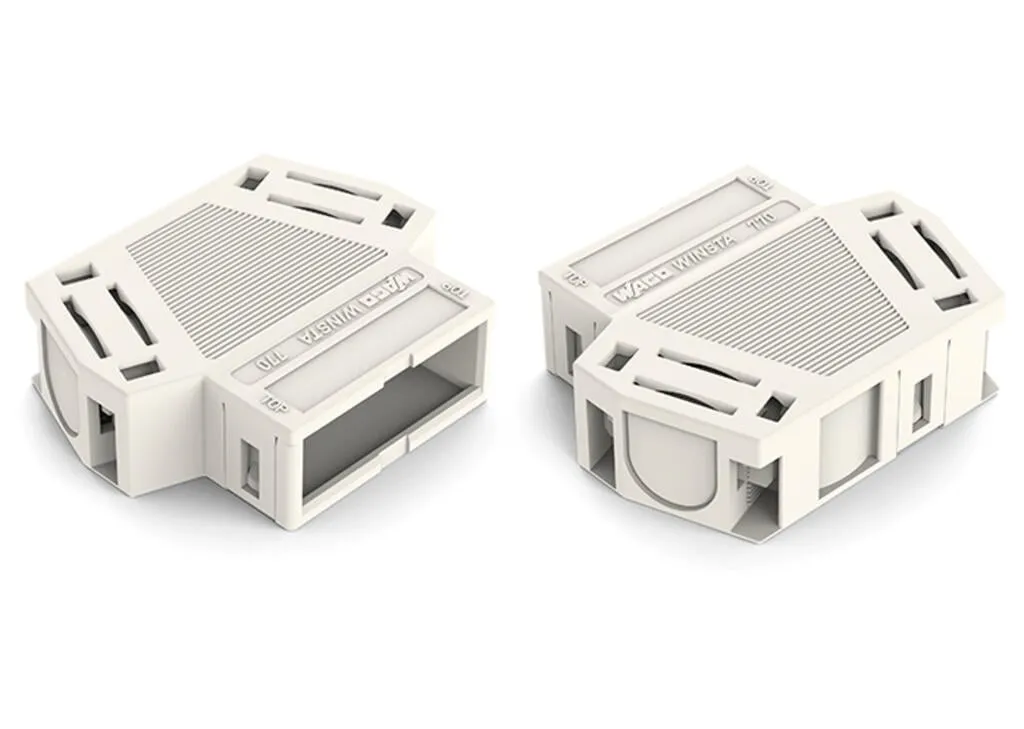

Wago 770-513/032-000
Strain relief housing WINSTA® MIDI 3-poleWhen using the strain relief housing from the WINSTA® MIDI product line, error-free installation is ensured. An extensive range of accessories rounds out the W…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Strain relief housing WINSTA® MIDI 3-poleWhen using the strain relief housing from the WINSTA® MIDI product line, error-free installation is ensured. An extensive range of accessories rounds out the WINSTA® product line from WAGO. WINSTA® MIDI with Push-in CAGE CLAMP® spring pressure connection technology is used in can be found in a variety of projects you can use for quick, easy, flexible, and secure installation. A range up to 55 mm can be used for the strip length.Lower costs through fast commissioning and elimination of service expenses – solutions from WINSTA® MIDIThe WINSTA® Pluggable Connection System is perfectly tailored to the very strict requirements of building installation. It makes electrical installation pluggable, and therefore more efficient, even more reliable, and error-free. Using this pre-assembled system reduces assembly times and installation errors at the construction site. Enjoy the benefits of the pluggable version of our maintenance-free spring pressure connection technology too! Plan your installation with with protection against mismating from WAGO. for automation controllersquick replacement of defective units during ongoing operation
Specification
Connection data - Connection 1
| Pole number | 3 |
|---|---|
| Connectable sheathed cable diameter | 8 … 11.5 mm |
| Strip length (outer insulation) | 55 mm |
Physical data
| Pin spacing | 10 mm / 0.394 inches |
|---|
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | white |
| Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 |
| Fire load | 0.363 MJ |
| Weight | 11 g |
Environmental requirements
| Processing temperature | -5 … +40 °C |
|---|---|
| Continuous operating temperature | -35 … +85 °C |
| Note on continuous operating temperature | Insulating parts for temperatures ≤ 105 °C |
Commercial data
| Product Group | 20 (Winsta) |
|---|---|
| PU (SPU) | 25 pcs |
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4044918102438 |
| Customs tariff number | 85369010000 |
Product Classification
| UNSPSC | 39121402 |
|---|---|
| eCl@ss 10.0 | 27-44-06-92 |
| eCl@ss 9.0 | 27-44-06-92 |
| ETIM 9.0 | EC002863 |
| ETIM 10.0 | EC002863 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
