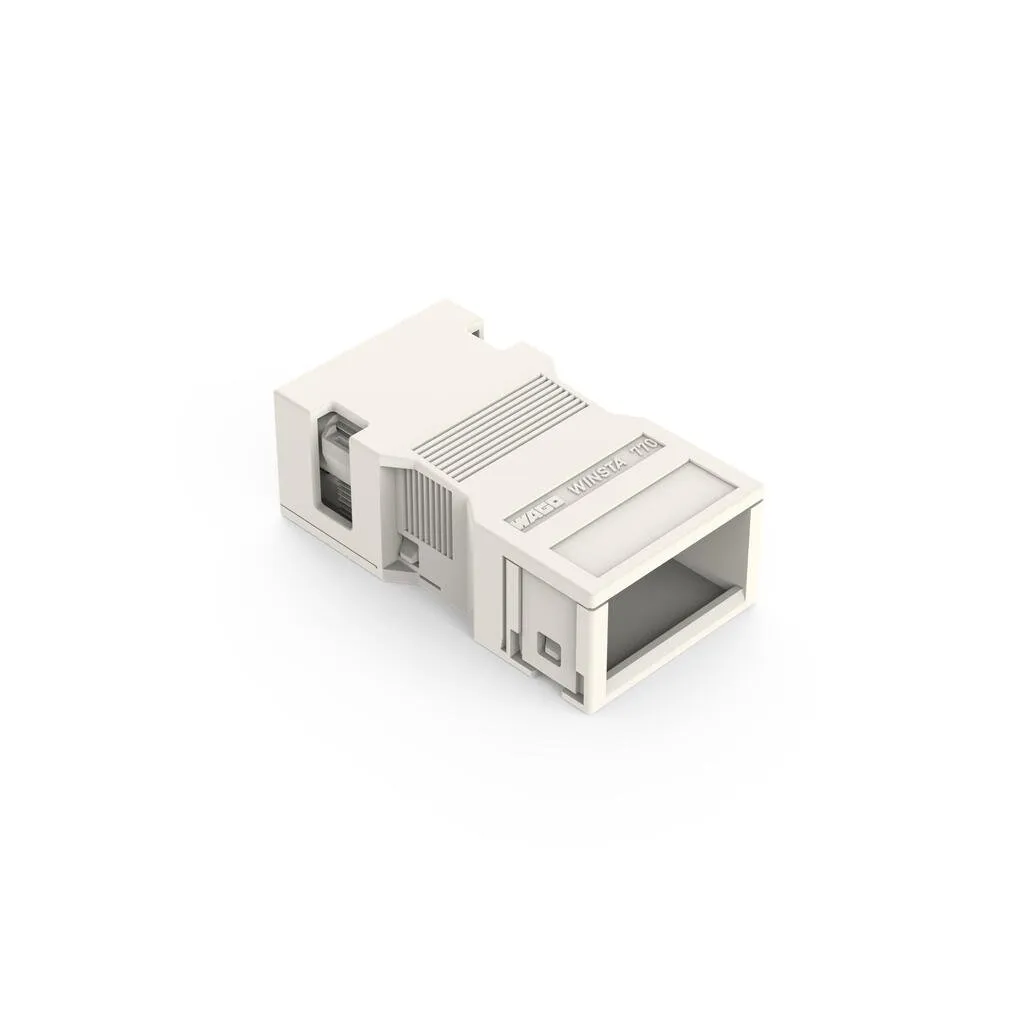

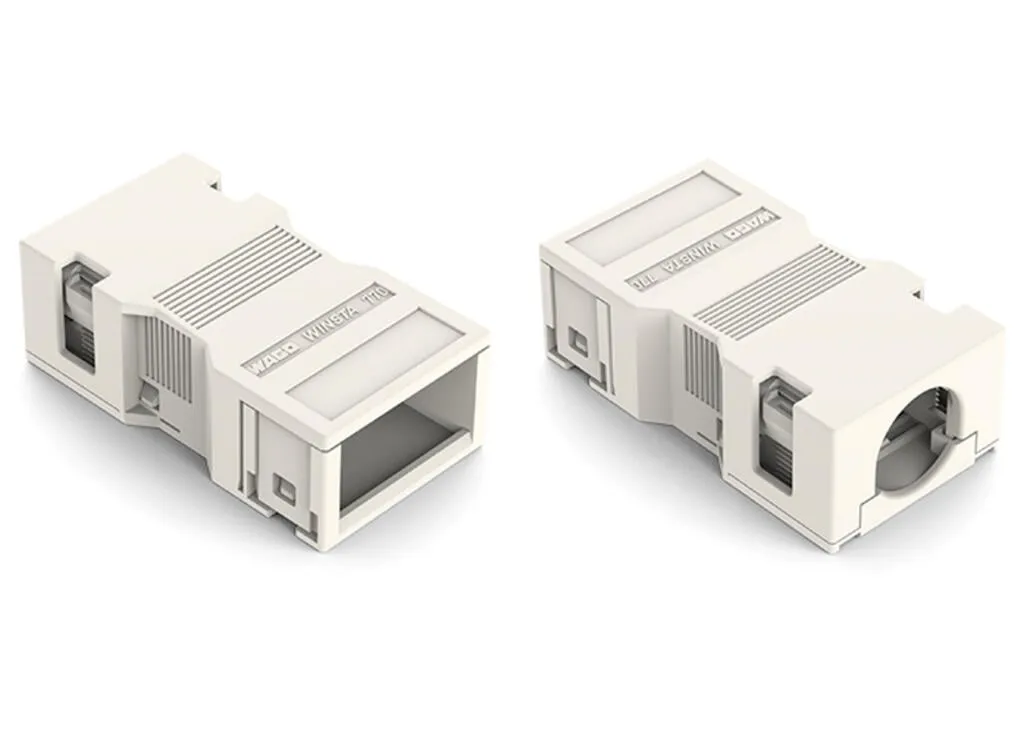

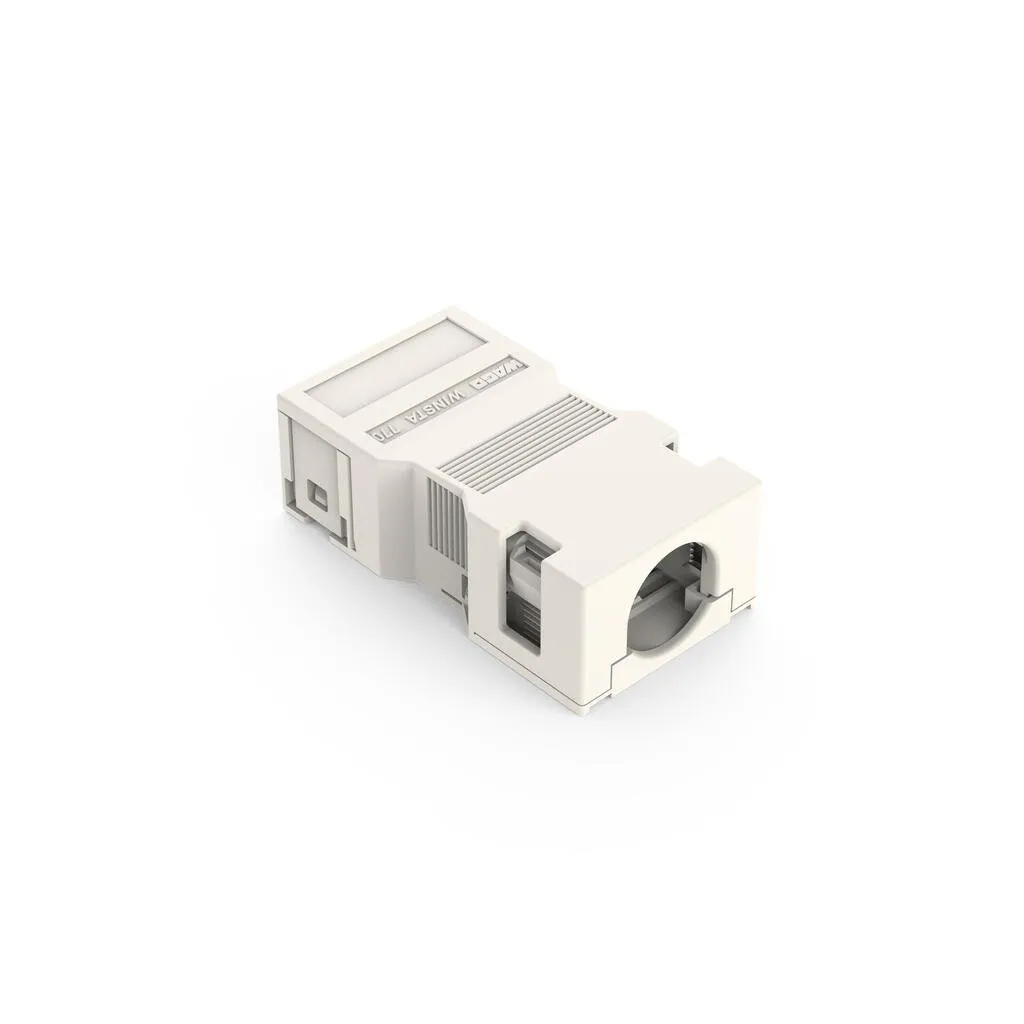

Wago 770-512/041-000
Strain relief housing WINSTA® MIDI 2-poleThe strain relief housing from the WINSTA® MIDI product line guarantees you the greatest possible flexibility in electrical installation. A comprehensive range…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Strain relief housing WINSTA® MIDI 2-poleThe strain relief housing from the WINSTA® MIDI product line guarantees you the greatest possible flexibility in electrical installation. A comprehensive range of accessories complements the WINSTA® product line from WAGO. Our WINSTA® MIDI product line offers flexibility for the installation. Through its Push-in CAGE CLAMP® spring pressure connection technology, it ensures time-saving, error-free installation and offers flexibility and customization for meeting an enormous variety of installation requirements. A range up to 35 mm can be used for the strip length.Lower costs through fast commissioning and elimination of service expenses – solutions from WINSTA® MIDIWINSTA® is the pluggable connection system that is ideally tailored to the strict requirements of electrical installation. It allows fast, secure and, above all, error-free installation of components and cables. Now you can also lower installation expenses without compromising safety and quality: with protection against mismating eliminates the need for servicing and prevents unnecessary downtime. pre-assembled versionsconvenient installation and commissioning
Specification
Connection data - Connection 1
| Pole number | 2 |
|---|---|
| Connectable sheathed cable diameter | 7 … 10.5 mm |
| Strip length (outer insulation) | 35 mm |
Physical data
| Pin spacing | 10 mm / 0.394 inches |
|---|---|
| Width | 24.6 mm / 0.969 inches |
| Height | 15.9 mm / 0.626 inches |
| Depth | 45 mm / 1.772 inches |
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | white |
| Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 |
| Fire load | 0.217 MJ |
| Weight | 6.7 g |
Environmental requirements
| Processing temperature | -5 … +40 °C |
|---|---|
| Continuous operating temperature | -35 … +85 °C |
| Note on continuous operating temperature | Insulating parts for temperatures ≤ 105 °C |
Commercial data
| PU (SPU) | 50 pcs |
|---|---|
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4050821137573 |
| Customs tariff number | 85389099990 |
Product Classification
| UNSPSC | 39121421 |
|---|---|
| eCl@ss 10.0 | 27-44-06-92 |
| eCl@ss 9.0 | 27-44-06-92 |
| ETIM 9.0 | EC002863 |
| ETIM 10.0 | EC002863 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
