Wago 770-504/020-000

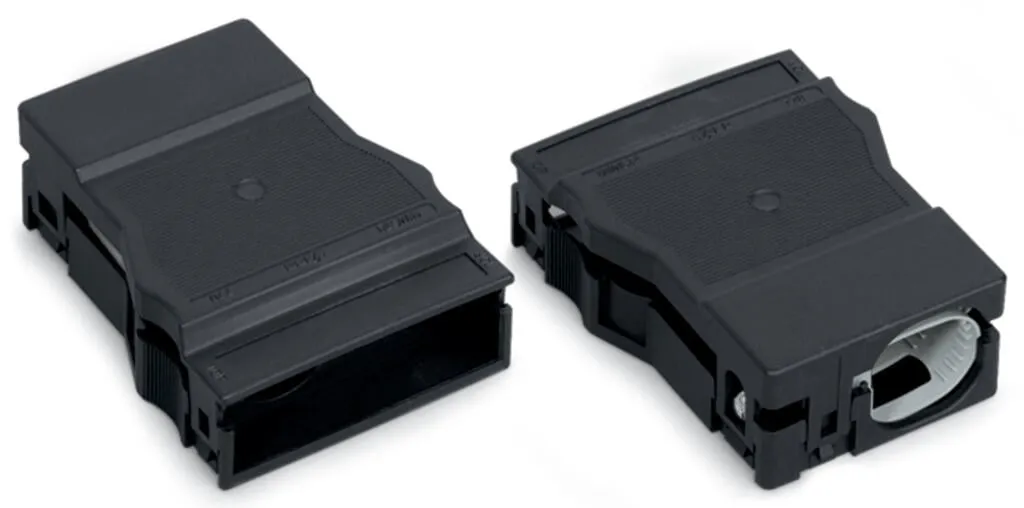

Strain relief housing WINSTA® MIDI 4-poleWith the strain relief housing from the WINSTA® MIDI product line, zero-defect electrical installation is guaranteed. An extensive range of accessories rounds…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Strain relief housing WINSTA® MIDI 4-poleWith the strain relief housing from the WINSTA® MIDI product line, zero-defect electrical installation is guaranteed. An extensive range of accessories rounds out the WINSTA® product line from WAGO. The WINSTA® MIDI Pluggable Connection System with Push-in CAGE CLAMP® spring pressure connection technology facilitates safe electrification. Due to the integrated test slot, connections can be checked even when they are plugged in. This saves time, labor, and money. The strip length is 71 mm.WINSTA® MIDI solutions for your electrical installation – protected against mismating and maintenance-freeWINSTA® is the pluggable connection system that is ideally tailored to the strict requirements of electrical installation. It offers error-free installation of cables and components, quickly and reliably. Now you can also lower installation costs without compromising safety and quality: with protection against mismating eliminates the need for servicing and prevents unnecessary downtime. for automation controllersquick replacement of defective units during ongoing operation
Specification
Connection data - Connection 1
| Pole number | 4 |
|---|---|
| Connectable sheathed cable diameter | 11.5 … 16.5 mm |
| Strip length (outer insulation) | 71 mm |

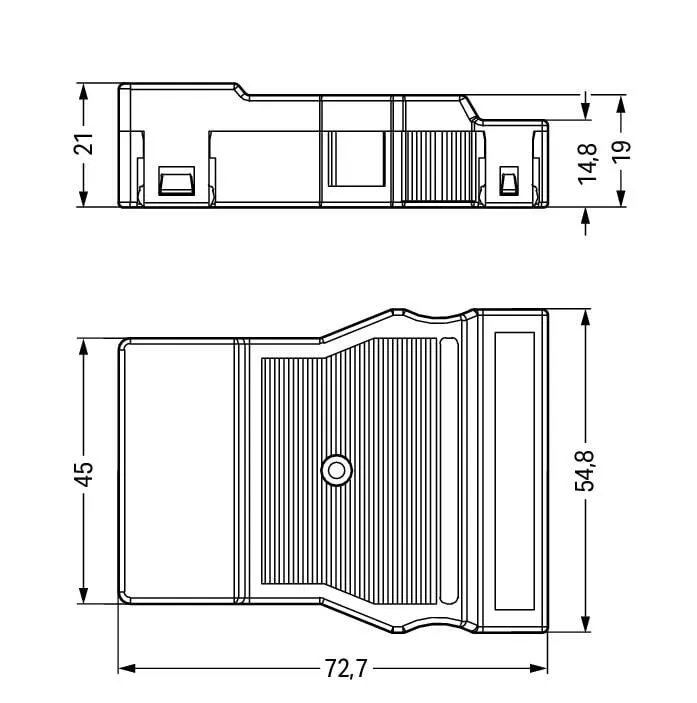

Physical data
| Pin spacing | 10 mm / 0.394 inches |
|---|---|
| Width | 54.8 mm / 2.157 inches |
| Height | 21 mm / 0.827 inches |
| Depth | 72.7 mm / 2.862 inches |
Mechanical data
| Screw tightening torque | 0.5 Nm |
|---|
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | black |
| Material group | I |
| Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 |
| Fire load | 0.554 MJ |
| Weight | 19.9 g |
Environmental requirements
| Processing temperature | -5 … +40 °C |
|---|---|
| Continuous operating temperature | -35 … +85 °C |
| Note on continuous operating temperature | Insulating parts for temperatures ≤ 105 °C |
Commercial data
| PU (SPU) | 25 pcs |
|---|---|
| Packaging type | Box |
| Country of origin | DE |
| GTIN | 4066966329780 |
| Customs tariff number | 85366990990 |
Product Classification
| UNSPSC | 39121722 |
|---|---|
| ETIM 9.0 | EC002863 |
| ETIM 10.0 | EC002863 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
