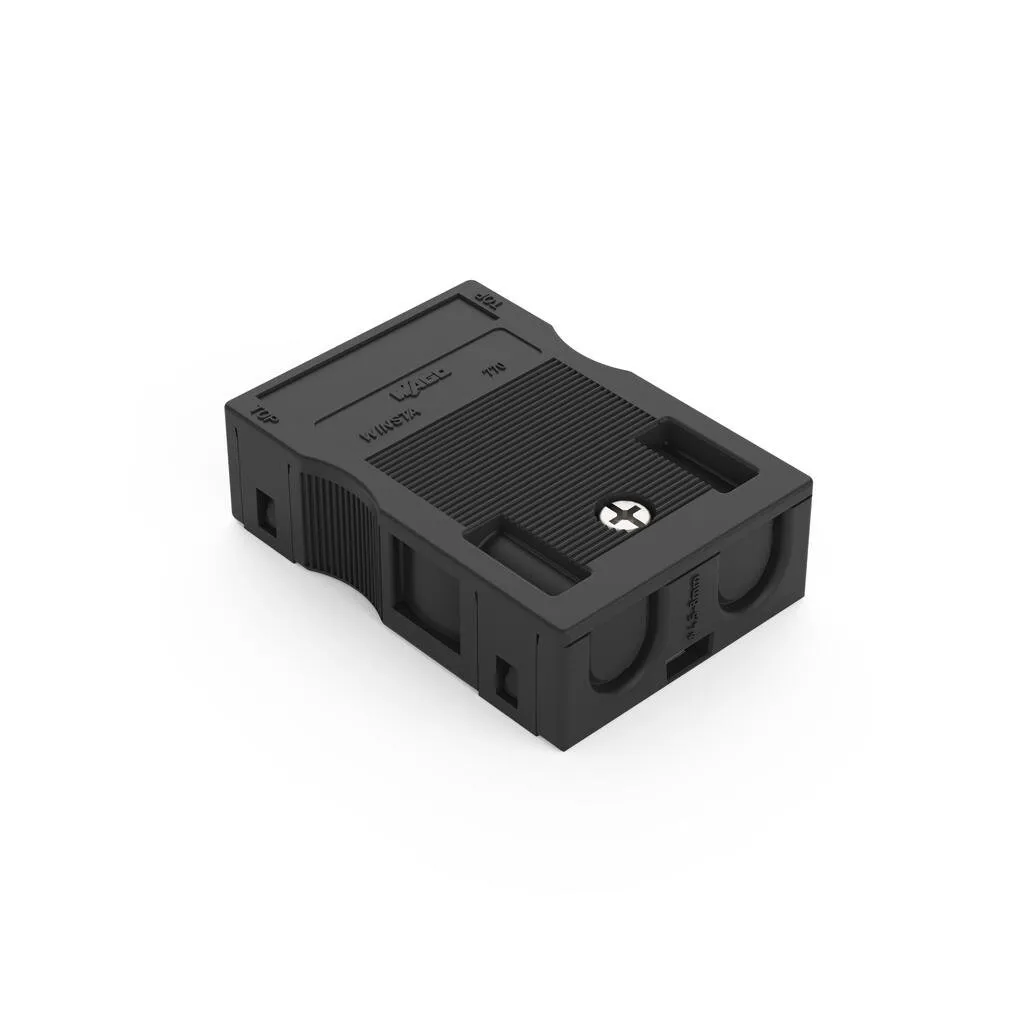

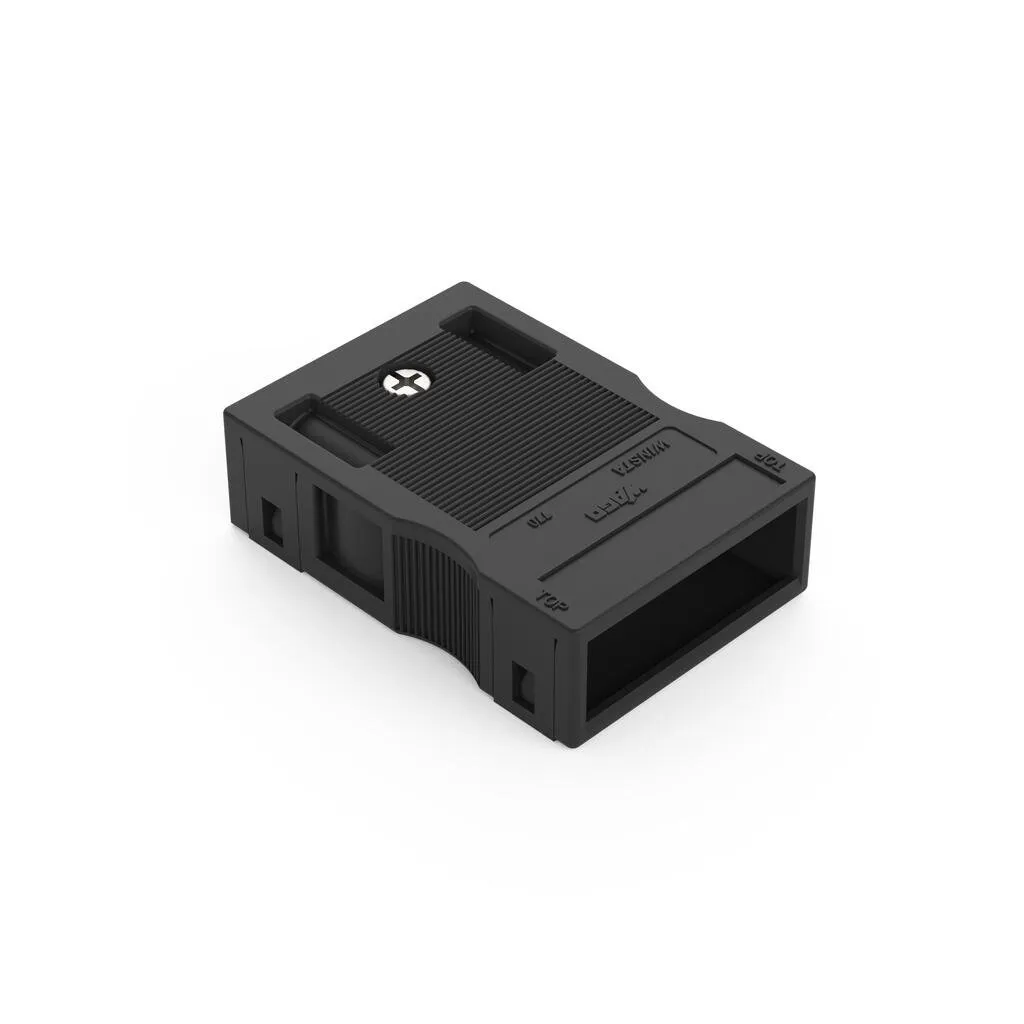

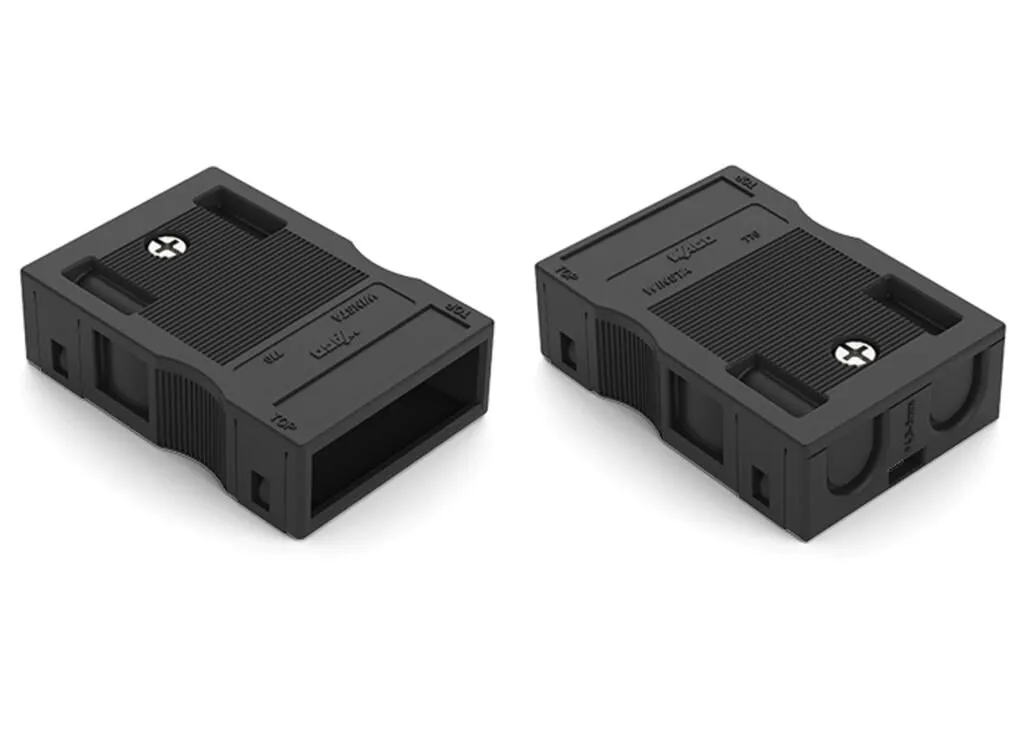

Wago 770-503/023-000
Strain relief housing WINSTA® MIDI 3-poleThe strain relief housing from the WINSTA® MIDI product line guarantees you the greatest possible flexibility in electrical installation. A comprehensive range…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Strain relief housing WINSTA® MIDI 3-poleThe strain relief housing from the WINSTA® MIDI product line guarantees you the greatest possible flexibility in electrical installation. A comprehensive range of accessories rounds out the WINSTA® product line from WAGO. The WINSTA® MIDI product line guarantees flexibility for the installation. Through its Push-in CAGE CLAMP® spring pressure connection technology, it achieves error-free, time-saving installation and offers flexibility and customization for meeting all installation requirements. The strip length is 55 mm.WINSTA® MIDI solutions for your electrical installation – protected against mismating and maintenance-freeWINSTA® is the pluggable connection system that is optimally tailored to the strict requirements of electrical installation. It ensures error-free installation of cables and components, quickly and reliably. Choose durability and quality – with protection against mismating from WAGO makes the installation of electrical components substantially easier. simple circuitsquick replacement of defective units during ongoing operation
Specification
Connection data - Connection 1
| Pole number | 3 |
|---|---|
| Connectable sheathed cable diameter | 4.5 … 8 mm |
| Strip length (outer insulation) | 55 mm |
Physical data
| Pin spacing | 10 mm / 0.394 inches |
|---|---|
| Width | 34.6 mm / 1.362 inches |
| Height | 15.2 mm / 0.598 inches |
| Depth | 50 mm / 1.969 inches |
Mechanical data
| Screw tightening torque | 0.5 Nm |
|---|
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | black |
| Material group | I |
| Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 |
| Fire load | 0.279 MJ |
| Weight | 10.3 g |
Environmental requirements
| Processing temperature | -5 … +40 °C |
|---|---|
| Continuous operating temperature | -35 … +85 °C |
| Note on continuous operating temperature | Insulating parts for temperatures ≤ 105 °C |
Commercial data
| Product Group | 20 (Winsta) |
|---|---|
| PU (SPU) | 50 pcs |
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4044918057516 |
| Customs tariff number | 39269097900 |
Product Classification
| UNSPSC | 39121722 |
|---|---|
| eCl@ss 10.0 | 27-44-06-92 |
| eCl@ss 9.0 | 27-44-06-92 |
| ETIM 9.0 | EC002863 |
| ETIM 10.0 | EC002863 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
