Wago 770-502/042-000

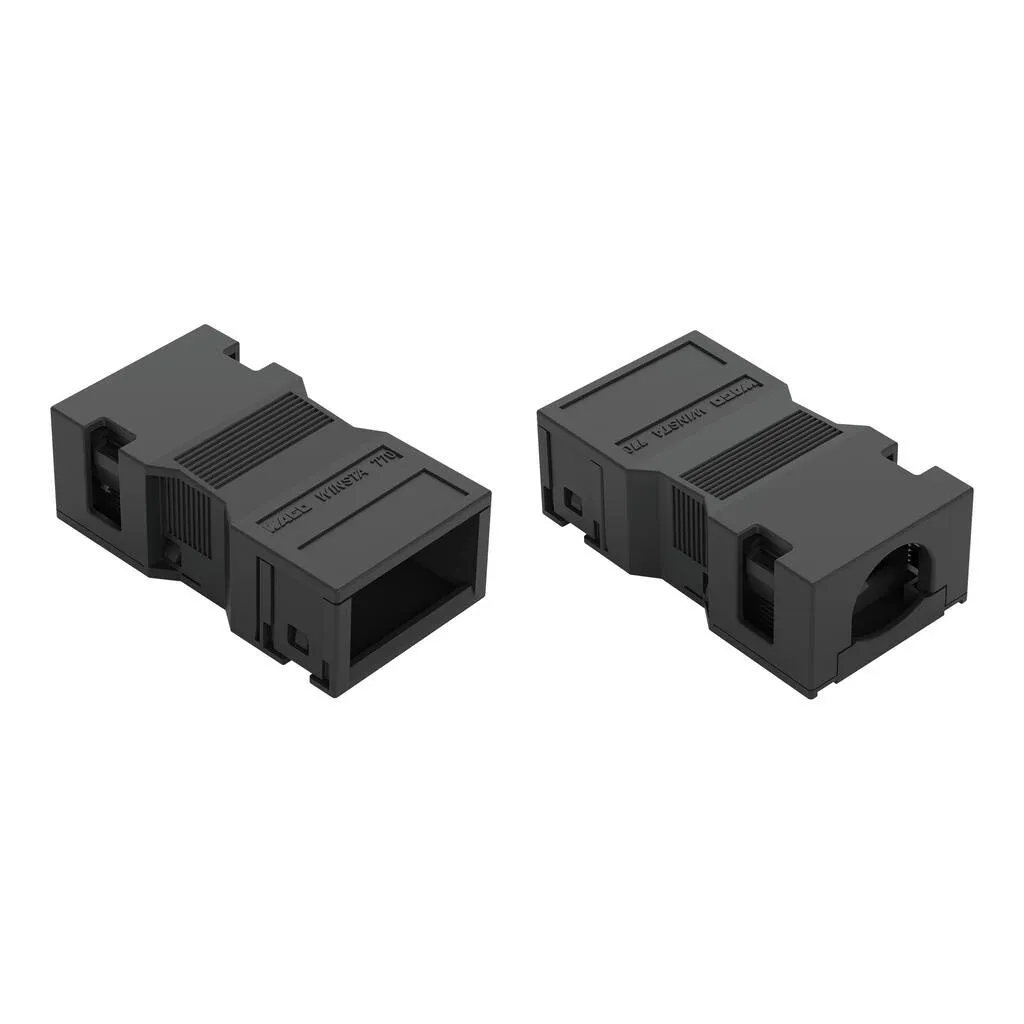

Strain relief housing WINSTA® MIDI 2-polePut your trust in realiable sustainability for the electrical installation for the implementation of your project: The strain relief housing from the WINSTA® M…

Request for Quote

Shipping & Delivery

  • Courier delivery

Our courier will deliver to the specified address

5-6 Days

From €20

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

From €40

  • Warranty 1 year
  • Free 30-Day returns

Description

Strain relief housing WINSTA® MIDI 2-polePut your trust in realiable sustainability for the electrical installation for the implementation of your project: The strain relief housing from the WINSTA® MIDI product line. An extensive range of accessories rounds out the WINSTA® product line from WAGO. The WINSTA® MIDI Pluggable Connection System with Push-in CAGE CLAMP® spring pressure connection technology facilitates exemplary electrification. Thanks to the included test slot, connections can be checked even when they are plugged in. This saves time, labor, and money. A range up to 35 mm can be used for the strip length.Push-in CAGE CLAMP® spring pressure connection technology – pluggable installation instead of laborious screw connections!The WINSTA® Pluggable Connection System allows pluggable electrical installation. This significantly reduces the need for servicing and lowers costs. Now you can also reduce installation costs without compromising safety and quality: with protection against mismating eliminates the need for servicing and prevents unnecessary downtime. pre-assembled versionsconvenient installation and commissioning

Specification

Connection data - Connection 1

Pole number2
Connectable sheathed cable diameter5 … 9 mm
Strip length (outer insulation)35 mm

Physical data

Pin spacing10 mm / 0.394 inches
Width24.6 mm / 0.969 inches
Height15.9 mm / 0.626 inches
Depth45 mm / 1.772 inches

Material data

Note (material data)Information on material specifications can be found here
Colorblack
Insulation material (main housing)Polyamide (PA66)
Flammability class per UL94V0
Fire load0.194 MJ
Weight6.6 g

Environmental requirements

Processing temperature-5 … +40 °C
Continuous operating temperature-35 … +85 °C
Note on continuous operating temperatureInsulating parts for temperatures ≤ 105 °C

Commercial data

PU (SPU)50 pcs
Packaging typebox
Country of originDE
GTIN4050821137566
Customs tariff number39269097900

Product Classification

UNSPSC39121722
eCl@ss 10.027-44-06-92
eCl@ss 9.027-44-06-92
ETIM 9.0EC002863
ETIM 10.0EC002863
ECCNNO US CLASSIFICATION

Environmental Product Compliance

RoHS Compliance StatusCompliant,No Exemption
