Wago 769-640/007-000
Male connector, 769 Series, with 5 mm pin spacingSeamless electrical installations are guaranteed with this male connector (item number 769-640/007-000).The pcb connector is designed for THT soldering…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

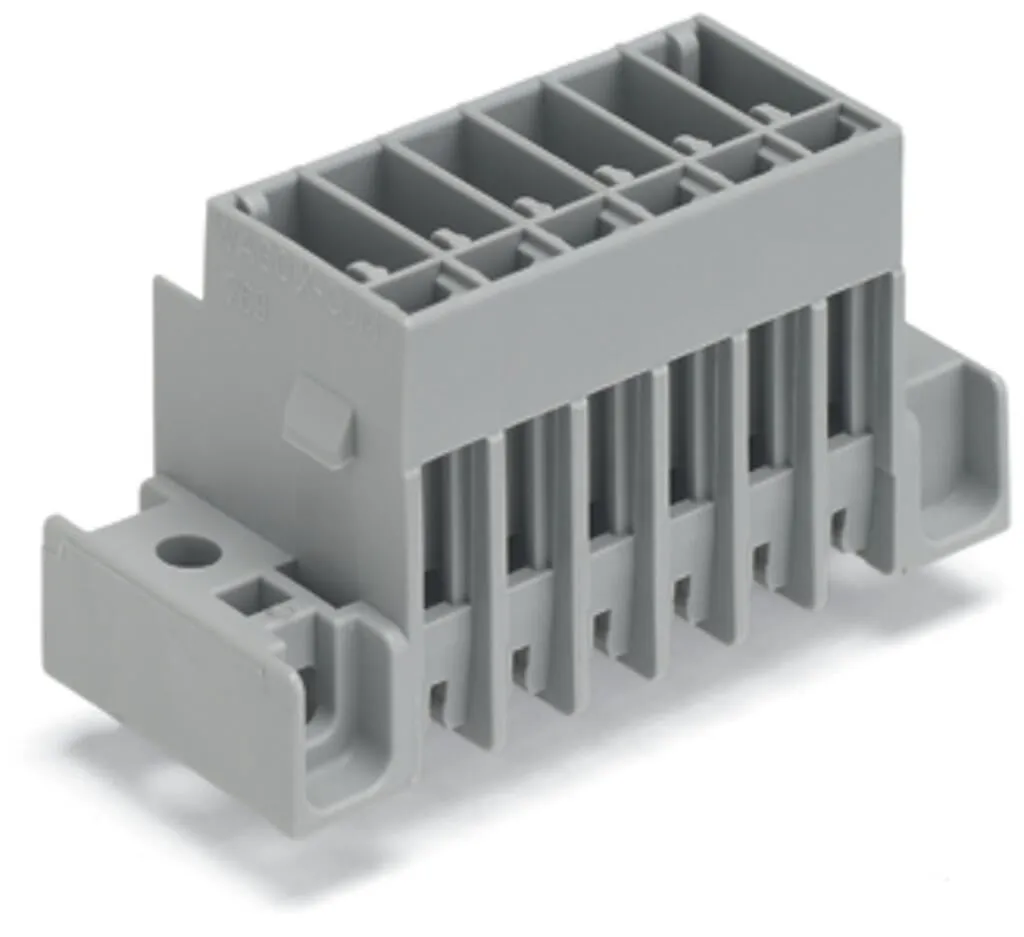

Male connector, 769 Series, with 5 mm pin spacingSeamless electrical installations are guaranteed with this male connector (item number 769-640/007-000).The pcb connector is designed for THT soldering.
Specification
Electrical data - Ratings per IEC/EN
| Nominal voltage (III/3) | 250 V |
|---|---|
| Rated impulse withstand voltage (III / 3) | 4 kV |
| Rated voltage (III/2) | 500 V |
| Rated impulse withstand voltage (III/2) | 4 kV |
| Rated current | 32 A |
| Legend (ratings) | (III / 3) ≙ Overvoltage category III / Pollution degree 3 |
Connection data
| Total number of potentials | 10 |
|---|---|
| Number of levels | 1 |
| Preceding contacts | No |
Connection data - Connection 1
| Pole number | 10 |
|---|
Physical data

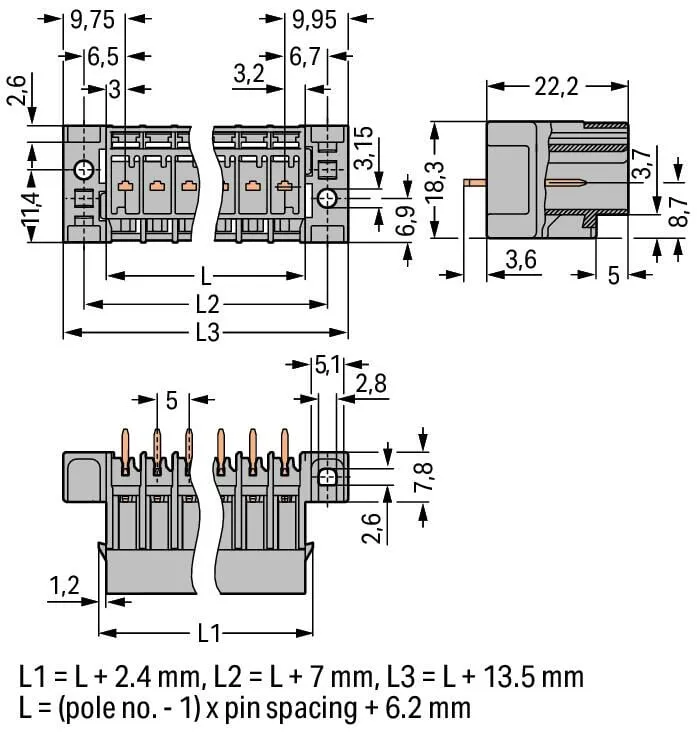

| Pin spacing | 5 mm / 0.197 inches |
|---|---|
| Width | 64.7 mm / 2.547 inches |
| Height from the surface | 22.2 mm / 0.874 inches |
| Depth | 18.3 mm / 0.72 inches |
Mechanical data
| Variable coding | Yes |
|---|---|
| Mounting type | Rivet mounting flange |
| Anti-rotation protection | Yes |
Plug-in connection
| Contact type (pluggable connector) | Male connector/plug |
|---|---|
| Connector (connection type) | for PCB |
| Mismating protection | No |
| Plugging without loss of pin spacing | No |
| Mating direction to the PCB | 90 ° |
PCB contact
| PCB contact | THT |
|---|
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | gray |
| Material group | I |
| Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 |
| Fire load | 0.248 MJ |
| Weight | 11.2 g |
Environmental requirements
| Processing temperature | -35 … +85 °C |
|---|---|
| Continuous operating temperature | -60 … +105 °C |
Commercial data
| PU (SPU) | 25 pcs |
|---|---|
| Packaging type | box |
| Country of origin | PL |
| GTIN | 4050821477082 |
| Customs tariff number | 85366930000 |
Product Classification
| UNSPSC | 39121409 |
|---|---|
| eCl@ss 10.0 | 27-44-04-02 |
| eCl@ss 9.0 | 27-44-04-02 |
| ETIM 9.0 | EC002637 |
| ETIM 10.0 | EC002637 |
| ECCN | NO US CLASSIFICATION |
