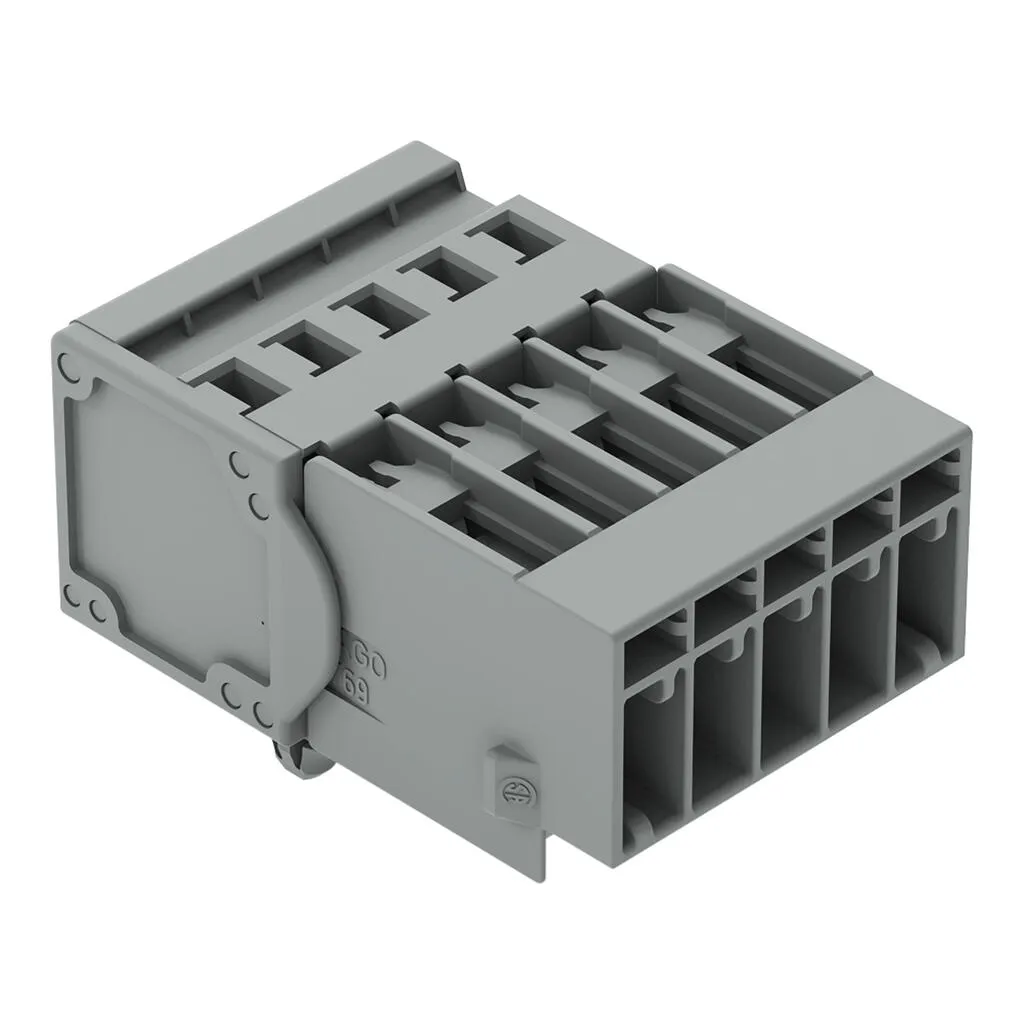

Wago 769-605/001-000
Male connector, 769 Series, operating toolEnjoy fault-free electrical installations with this male connector (item number 769-605/001-000). Conductors should only be connected to this male connector i…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Male connector, 769 Series, operating toolEnjoy fault-free electrical installations with this male connector (item number 769-605/001-000). Conductors should only be connected to this male connector if their strip length is between 8 and 9 mm . Pluggable rail-mount terminal blocks are hugely popular in switchgear and control systems, for example, in railroad technology. They combine the best of rail-mount terminal blocks and connectors to create the perfect solution. Variable wiring systems make pre-assembly easy, which leads to considerable time and cost savings in production, installation, operation, and maintenance. Featuring conductor terminals along with CAGE CLAMP®, this product outperforms the competition. Our CAGE CLAMP® connection offers a dependable and maintenance-free way to connect all types of conductors. You do not need to prepare the conductor in any way, such as crimping ferrules. Depending on the conductor type, this male connector is designed for conductor cross sections ranging from 0.08 mm² to 4 mm².This male connector/plug is operated with an operating tool.
Specification
Electrical data - Ratings per IEC/EN
| Nominal voltage (III/3) | 500 V |
|---|---|
| Rated impulse withstand voltage (III / 3) | 6 kV |
| Rated current | 32 A |
| Legend (ratings) | (III / 3) ≙ Overvoltage category III / Pollution degree 3 |
Electrical data - General information
| Wiring direction | Front-entry wiring |
|---|
Connection data
| Clamping units | 5 |
|---|---|
| Total number of potentials | 5 |
Connection data - Connection 1
| Connection technology | CAGE CLAMP® |
|---|---|
| Actuation type | Operating tool |
| Connectable conductor materials | Copper |
| Nominal cross-section | 4 mm² / 12 AWG |
| Solid conductor | 0.08 … 4 mm² / 28 … 12 AWG |
| Fine-stranded conductor | 0.08 … 4 mm² / 28 … 12 AWG |
| Strip length | 8 … 9 mm / 0.31 … 0.35 inches |
| Pole number | 5 |
| Wiring direction | Front-entry wiring |
Physical data

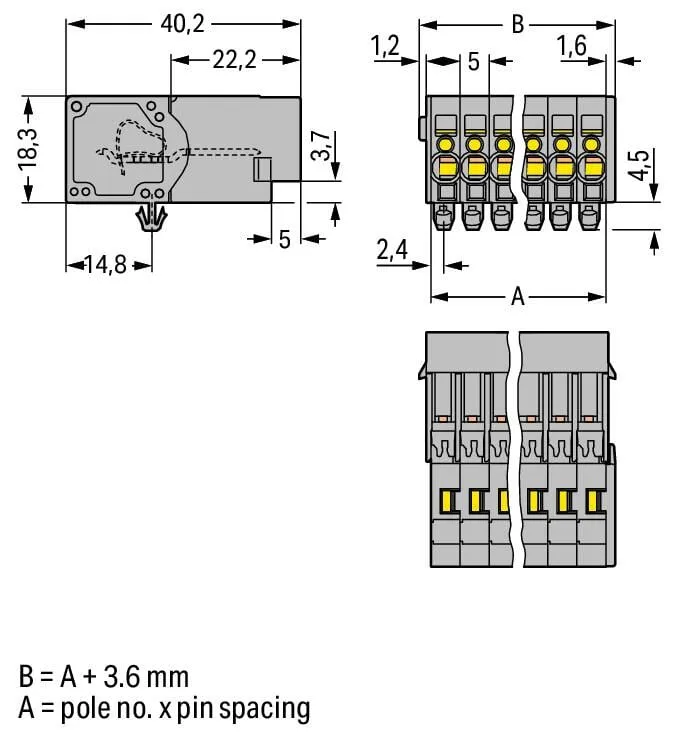

| Pin spacing | 5 mm / 0.197 inches |
|---|---|
| Width | 28.6 mm / 1.126 inches |
| Height from the surface | 18.3 mm / 0.72 inches |
| Depth | 40.2 mm / 1.583 inches |
Mechanical data
| Variable coding | Yes |
|---|---|
| Housing sheet thickness | 0.6 … 1.2 mm / 0.024 … 0.047 inches |
| Direct ground contact to DIN-rail/drilled hole/housing | No |
| Mounting type | Snap-in foot |
| Anti-rotation protection | Yes |
Plug-in connection
| Contact type (pluggable connector) | Male connector/plug |
|---|---|
| Connector (connection type) | for conductor |
| Mismating protection | No |
| Plugging without loss of pin spacing | No |
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | gray |
| Material group | I |
| Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 |
| Fire load | 0.303 MJ |
| Weight | 15.1 g |
Environmental requirements
| Processing temperature | -35 … +85 °C |
|---|---|
| Continuous operating temperature | -60 … +105 °C |
Commercial data
| Product Group | 18 (X-COM-System) |
|---|---|
| PU (SPU) | 50 pcs |
| Packaging type | Box |
| Country of origin | PL |
| GTIN | 4044918522007 |
| Customs tariff number | 85366930000 |
Product Classification
| UNSPSC | 39121409 |
|---|---|
| eCl@ss 10.0 | 27-14-11-06 |
| eCl@ss 9.0 | 27-14-11-06 |
| ETIM 9.0 | EC001284 |
| ETIM 10.0 | EC001284 |
| ECCN | NO US CLASSIFICATION |
