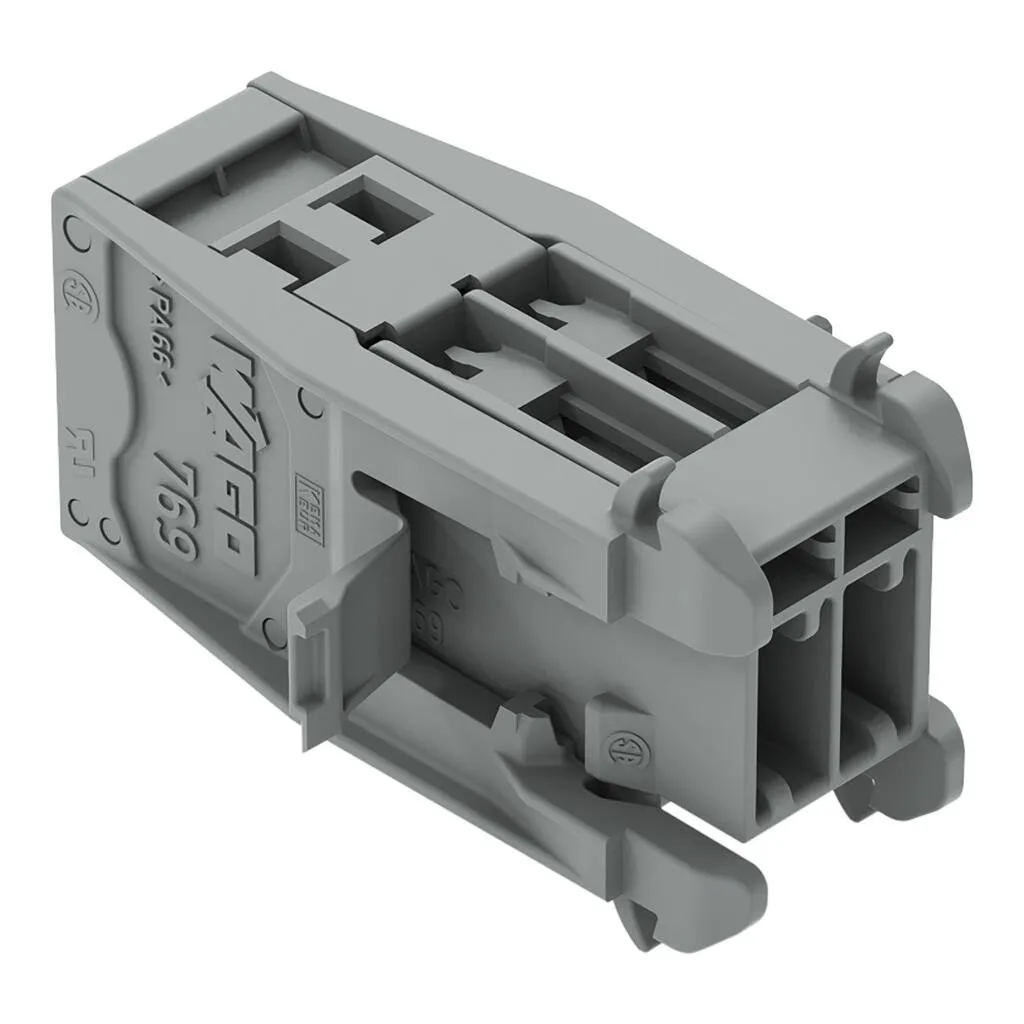

Wago 769-602/005-000

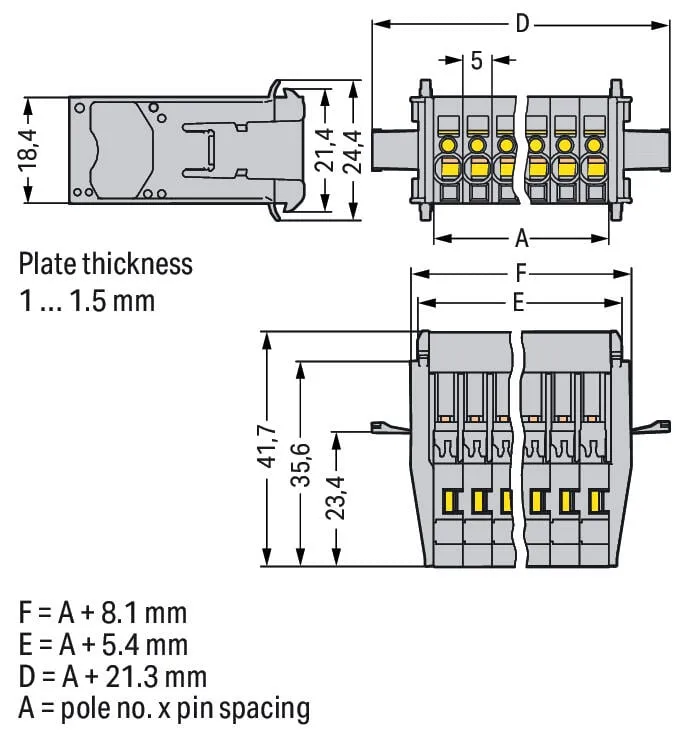

Male connector, 769 Series, grayOur male connector (item number 769-602/005-000) is designed for seamless electrical installations. Ensure that the strip lengths are between 8 and 9 mm  when connecting conductors to this male connector. Pluggable rail-mount terminal blocks are hugely popular in switchgear and control systems, for example, in railroad technology. They combine the best of rail-mount terminal blocks and connectors for the perfect solution. Variable wiring systems make pre-assembly easy, which leads to considerable time and cost savings in production, installation, operation, and maintenance. This product features conductor terminals and utilizes CAGE CLAMP®. Our highly-rated and maintenance-free CAGE CLAMP® connection makes it easy to connect all types of conductors without having to prepare the conductor. For example, you don’t need to crimp ferrules. The item’s dimensions are (31.3 x 24.4 x 41.7) mm (width x height x depth). Depending on the conductor type, this male connector is designed for conductor cross sections ranging from 0.08 mm² to 4 mm².This male connector/plug is operated with an operating tool.
