Wago 769-228/281-411

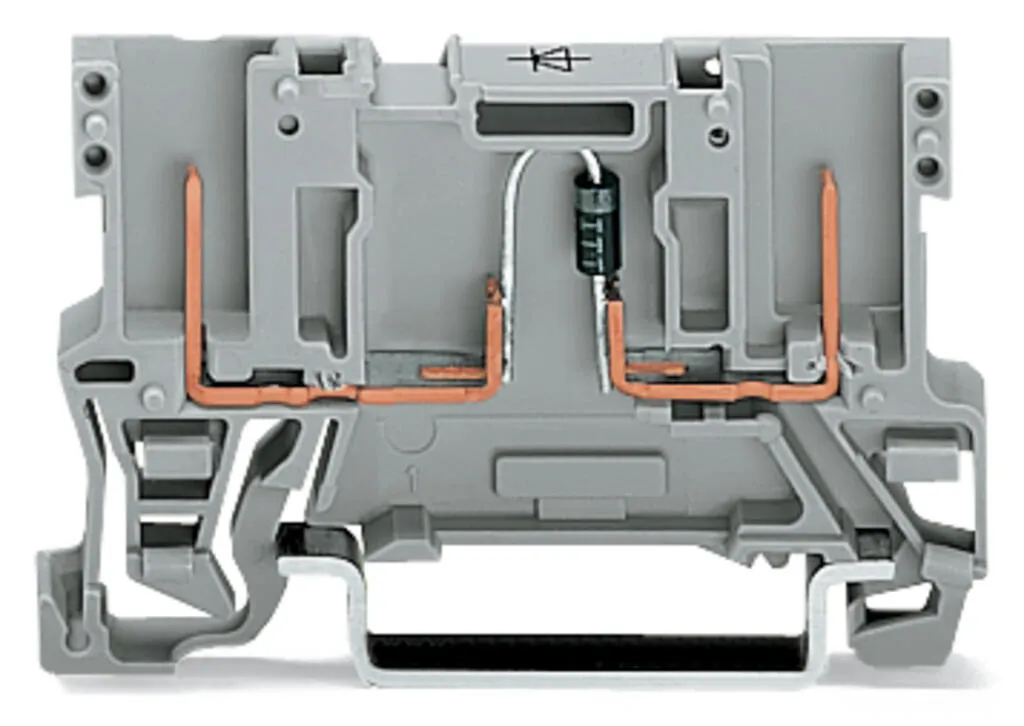

Component terminal block with diode, 769 Series, grayConnect conductors quickly and safely with this component terminal block with diode (item number 769-228/281-411). Pluggable rail-mount terminal bl…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Component terminal block with diode, 769 Series, grayConnect conductors quickly and safely with this component terminal block with diode (item number 769-228/281-411). Pluggable rail-mount terminal blocks are primarily found in switchgear units and control systems, most notably in railroad technology. These innovative systems combine the benefits of rail-mount terminal blocks and connectors for a flexible and reliable wiring system. You also have the option of pre-assembling installations, which not only makes production but also installation, operation, and maintenance more efficient and cost-effective.
Specification
Notes
| Safety Information | A separator plate (Item No. 209-191) or a 10 mm end stop (Item No. 249-117) must be placed at the end of a WAGO X-COM®-SYSTEM terminal strip. |
|---|---|
| Safety information 2 | Bei Verwendung von 2-Leiter-Federleisten können keine Schachtelbrücker in den Klemmen gesetzt werden. |
| Note | 2-conductor female plugs cannot be used. |
Electrical data - Ratings per IEC/EN
| Rated current | 0.5 A |
|---|
Electrical data - General information
| Nominal voltage | 250 V |
|---|---|
| Reverse voltage | 1,000 V |
| Number/type of diode/LED | with 1N4007 diode |
| Wiring direction | Front-entry wiring |
Connection data
| Total number of potentials | 1 |
|---|---|
| Number of levels | 1 |
Connection data - Connection 1
| Wiring direction | Front-entry wiring |
|---|

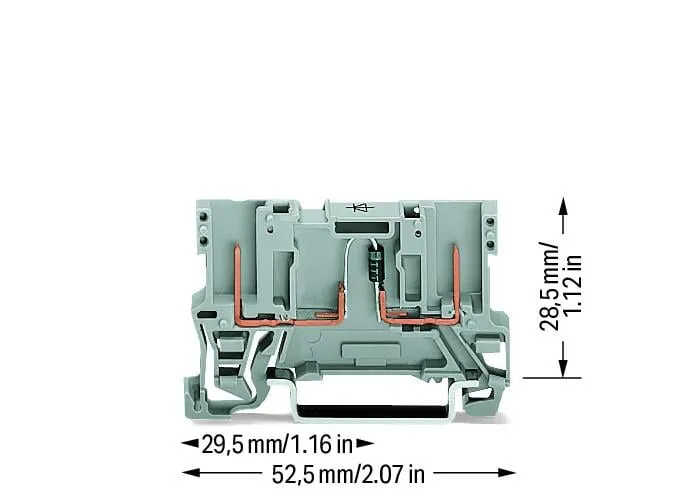

Physical data
| Width | 5 mm / 0.197 inches |
|---|---|
| Height | 52.5 mm / 2.067 inches |
| Depth from upper-edge of DIN-rail | 28.5 mm / 1.122 inches |
Mechanical data
| Design | horizontal type |
|---|---|
| Mounting type | DIN-35 rail |
| Marking level | Center marking |
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | gray |
| Material group | I |
| Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 |
| Fire load | 0.112 MJ |
| Weight | 4.7 g |
Environmental requirements
| Processing temperature | -35 … +85 °C |
|---|---|
| Continuous operating temperature | -60 … +105 °C |
Commercial data
| Product Group | 18 (X-COM-System) |
|---|---|
| PU (SPU) | 100 pcs |
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4045454619442 |
| Customs tariff number | 85369010000 |
Product Classification
| UNSPSC | 39121402 |
|---|---|
| eCl@ss 10.0 | 27-14-11-27 |
| eCl@ss 9.0 | 27-14-11-27 |
| ETIM 9.0 | EC000903 |
| ETIM 10.0 | EC000903 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 7439-92-1, 79-94-7 |
|---|---|
| REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol, Lead |
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 7(a) |
| SCIP notification number (Austria) | ccedd404-dd46-4b44-9630-d890bc25305f |
| SCIP notification number (Belgium) | 87a3df5c-8883-45b2-a485-dd8f0321aacb |
| SCIP notification number (Bulgaria) | 3a78cd04-ed49-4234-af85-03db71d1195f |
| SCIP notification number (Czech Republic) | cc85411e-2db1-4f23-bd2a-d7299a7b84eb |
| SCIP notification number (Denmark) | cc302b67-b452-4e1a-ad76-27be4e80276e |
| SCIP notification number (Finland) | 091048a2-b0d6-4dde-b46a-faa1e02deeb0 |
| SCIP notification number (France) | c739bd49-8e91-4fa6-94c2-e5ca1339dc67 |
| SCIP notification number (Germany) | 319ca8ed-e5dc-43fe-bf07-bc727153b332 |
| SCIP notification number (Hungary) | 8c52abc7-8d53-427e-a642-2b087036cee1 |
| SCIP notification number (Italy) | e2ebc37f-e6bc-4dfc-817a-55ffcbbf76f5 |
| SCIP notification number (Netherlands) | 084c8bf5-af5f-4315-952f-0bed5ac4eb96 |
| SCIP notification number (Poland) | c29b2609-ffc1-4bf7-9277-5f42ef124f0a |
| SCIP notification number (Romania) | 377d2324-b0f3-40be-9653-6a914fc28aa9 |
| SCIP notification number (Sweden) | a0e2a505-b676-4b9c-8991-869d2c0b35cf |
