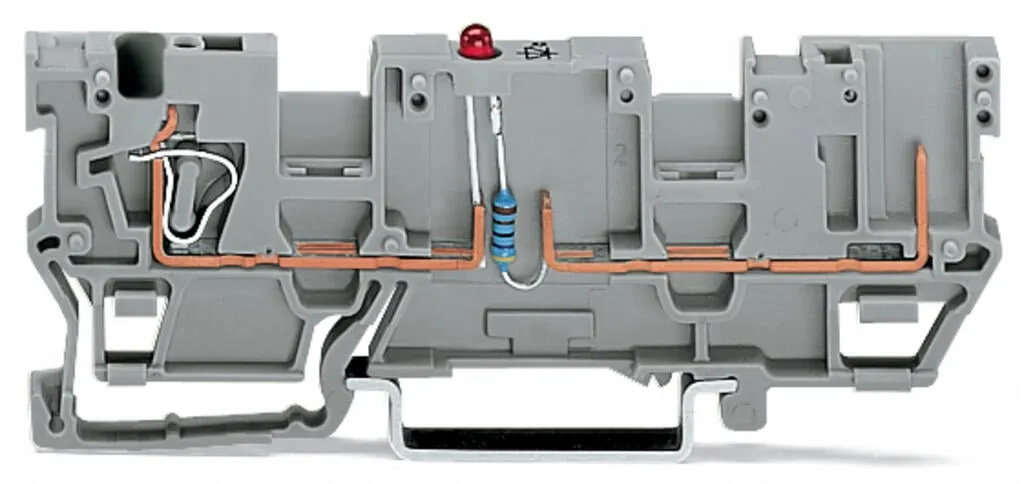

Wago 769-219/281-434

Component terminal block with led, 769 Series, operating toolComponent terminal block with led (item number 769-219/281-434) is designed for quick and easy connections. Conductors can only be connected to component terminal block with led if their strip length is between 8 and 9 mm . Pluggable rail-mount terminal blocks are mainly used in switchgear units and control systems (e.g., in railroad technology). They are essentially a combination of rail-mount terminal blocks and pluggable connectors. You can also pre-assemble installations thanks to the variable wiring system. This saves both time and money during manufacture, installation, operation, and maintenance. This product features conductor terminals and utilizes CAGE CLAMP®. Our reliable and maintenance-free CAGE CLAMP® connection makes it easy to connect all conductor types without having to prepare the conductor. For example, you don’t need to crimp ferrules. Depending on the conductor type, component terminal block with led is designed for conductor cross sections ranging from 0.08 mm² to 4 mm².This pluggable rail-mount terminal block is operated with an operating tool.
