Wago 769-208/281-410
Component terminal block with diode, 769 Series, grayOur component terminal block with diode (item number 769-208/281-410) is the perfect way to connect conductors quickly and easily. Diode terminal b…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

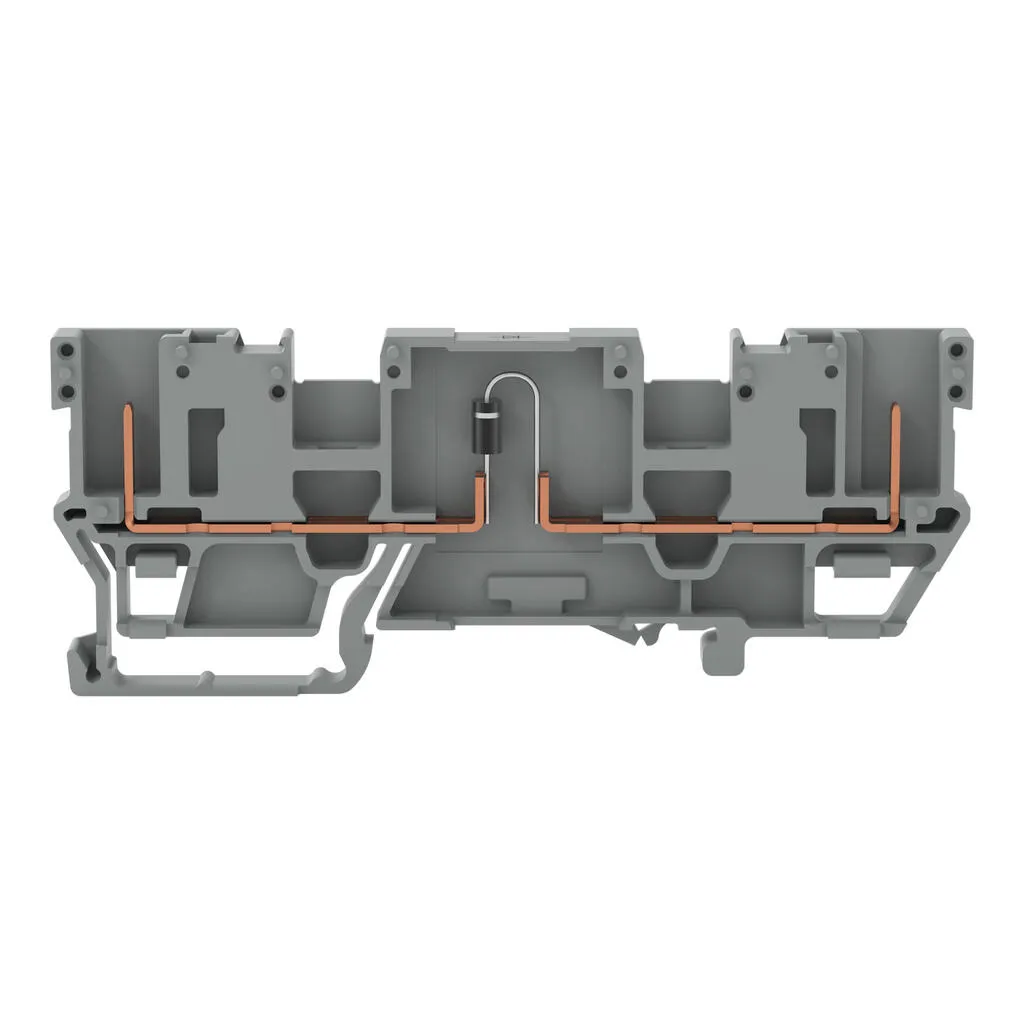

Component terminal block with diode, 769 Series, grayOur component terminal block with diode (item number 769-208/281-410) is the perfect way to connect conductors quickly and easily. Diode terminal blocks are rail-mount terminal blocks with electronic components integrated directly into the terminal block housing. They are specially designed for diode circuits, such as light test circuits and collective fault sensor circuits.
Specification
Notes
| Safety Information | A separator plate (Item No. 209-191) or a 10 mm end stop (Item No. 249-117) must be placed at the end of a WAGO X-COM®-SYSTEM terminal strip. |
|---|---|
| Safety information 2 | Bei Verwendung von 2-Leiter-Federleisten können keine Schachtelbrücker in den Klemmen gesetzt werden. |
Electrical data - Ratings per IEC/EN
| Rated current | 0.5 A |
|---|
Electrical data - General information
| Nominal voltage | 250 V |
|---|---|
| Reverse voltage | 1,000 V |
| Number/type of diode/LED | with 1N4007 diode |
| Wiring direction | Front-entry wiring |
Connection data
| Total number of potentials | 1 |
|---|---|
| Number of levels | 1 |
Connection data - Connection 1
| Wiring direction | Front-entry wiring |
|---|
Physical data
| Width | 5 mm / 0.197 inches |
|---|---|
| Height | 87.5 mm / 3.445 inches |
| Depth from upper-edge of DIN-rail | 28.5 mm / 1.122 inches |
Mechanical data
| Design | horizontal type |
|---|---|
| Mounting type | DIN-35 rail |
| Marking level | Center marking |
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | gray |
| Material group | I |
| Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 |
| Fire load | 0.17 MJ |
| Weight | 7.5 g |
Environmental requirements
| Processing temperature | -35 … +85 °C |
|---|---|
| Continuous operating temperature | -60 … +105 °C |
Commercial data
| Product Group | 18 (X-COM-System) |
|---|---|
| PU (SPU) | 50 pcs |
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4045454198367 |
| Customs tariff number | 85366990990 |
Product Classification
| UNSPSC | 39121410 |
|---|---|
| eCl@ss 10.0 | 27-14-11-27 |
| eCl@ss 9.0 | 27-14-11-27 |
| ETIM 9.0 | EC000903 |
| ETIM 10.0 | EC000903 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 7439-92-1, 79-94-7 |
|---|---|
| REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol, Lead |
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 7(a) |
| SCIP notification number (Austria) | b4f2a4dd-809c-42d3-9de3-f0f90b1b0146 |
| SCIP notification number (Belgium) | 73801883-2a18-42a5-9a6d-490ee4328ea5 |
| SCIP notification number (Bulgaria) | 38eb3c80-c533-4791-95d8-c56457b7f0e6 |
| SCIP notification number (Czech Republic) | 1b460834-00f0-4b55-85b0-b42a7049c1dd |
| SCIP notification number (Denmark) | 5958448d-0b32-4856-ae4b-df539c9e3b3a |
| SCIP notification number (Finland) | 12d0bf27-1803-40cd-aabf-997cfe4e48bf |
| SCIP notification number (France) | ad7af602-c282-4d33-9f7b-316973f37925 |
| SCIP notification number (Germany) | 6a66335b-eb5f-43f8-a8ce-32e9d6287493 |
| SCIP notification number (Hungary) | 010682df-a8bb-4839-a8d1-84e66cc4408d |
| SCIP notification number (Italy) | 724362d8-7981-4495-b9dd-d9e6ab7d1a4e |
| SCIP notification number (Netherlands) | ede615d2-80db-4776-923f-30954f130e21 |
| SCIP notification number (Poland) | 5ed9dbee-ea0e-410b-8954-abac6e94b13d |
| SCIP notification number (Romania) | f7a6a3ab-688b-43a6-8346-205d5b38e73c |
| SCIP notification number (Sweden) | 6058ccba-4756-4051-a0da-ce62f024e254 |
