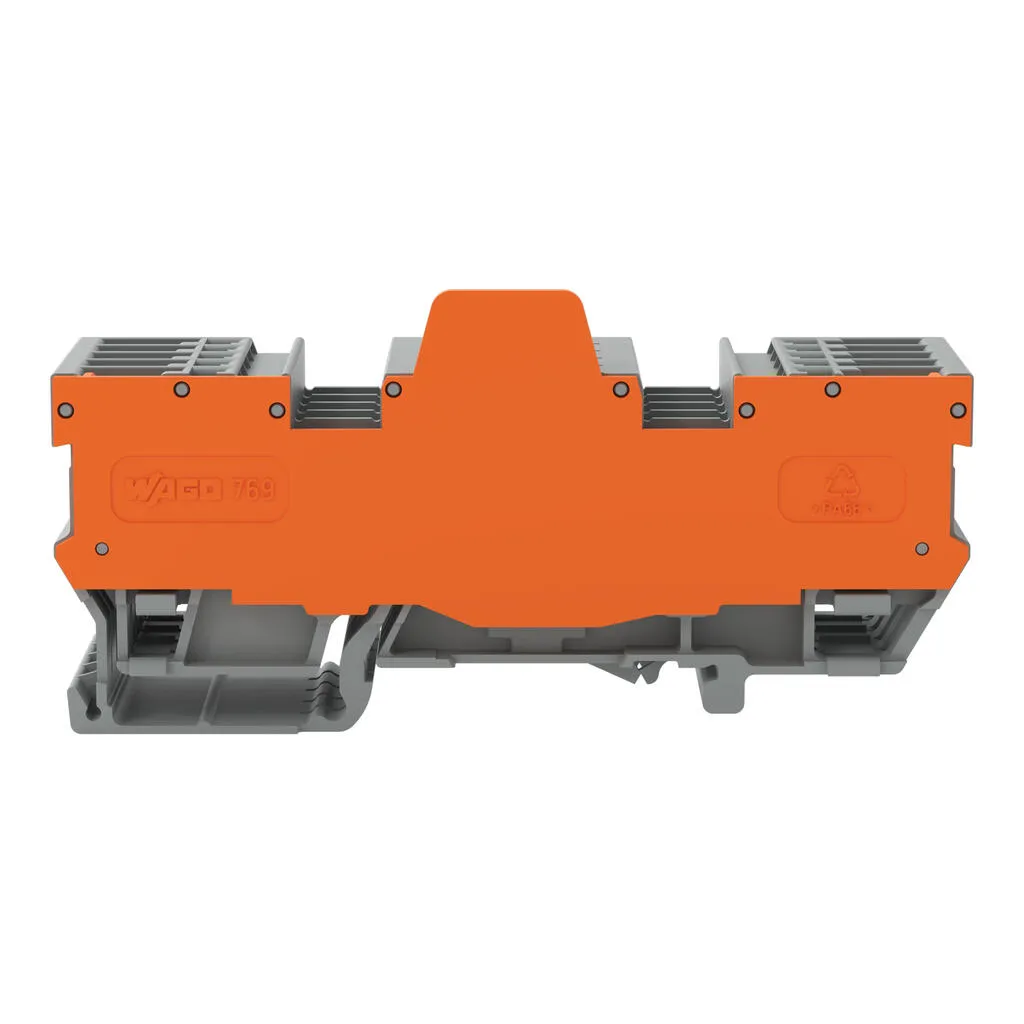

Wago 769-164/769-313
Carrier terminal block for fuses and electronic modules, 769 Series, grayEasy electrical installations are guaranteed with this carrier terminal block for fuses and electronic modules (item number 769…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Carrier terminal block for fuses and electronic modules, 769 Series, grayEasy electrical installations are guaranteed with this carrier terminal block for fuses and electronic modules (item number 769-164/769-313). Pluggable rail-mount terminal blocks are hugely popular in switchgear and control systems, for example, in railroad technology. They combine the best of rail-mount terminal blocks and connectors to create the perfect solution. Variable wiring systems make pre-assembly easy, which saves both time and money in production, installation, operation, and maintenance.
Specification
Notes
| Safety Information | A separator plate (Item No. 209-191) or a 10 mm end stop (Item No. 249-117) must be placed at the end of a WAGO X-COM®-SYSTEM terminal strip. |
|---|---|
| Note | 2-conductor female plugs cannot be used. |
Electrical data - Ratings per IEC/EN
| Nominal voltage (III/3) | 400 V |
|---|---|
| Rated impulse withstand voltage (III / 3) | 6 kV |
| Rated current | 16 A |
| Legend (ratings) | (III / 3) ≙ Overvoltage category III / Pollution degree 3 |
Electrical data - Power Loss
| Rated current I<sub>N</sub> for power loss specification | 16 A |
|---|
Electrical data - General information
| Wiring direction | Front-entry wiring |
|---|
Connection data
| Total number of potentials | 8 |
|---|---|
| Number of levels | 1 |
Connection data - Connection 1
| Pole number | 8 |
|---|---|
| Wiring direction | Front-entry wiring |
Physical data

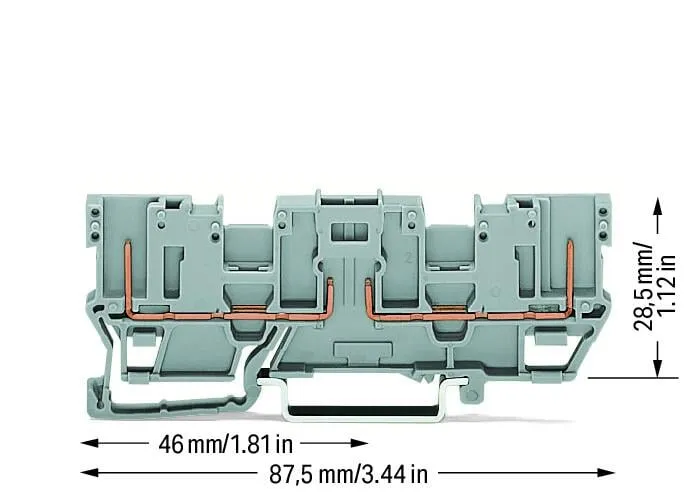

| Width | 21.1 mm / 0.831 inches |
|---|---|
| Height | 87.5 mm / 3.445 inches |
| Depth from upper-edge of DIN-rail | 28.5 mm / 1.122 inches |
Mechanical data
| Design | horizontal type |
|---|---|
| Mounting type | DIN-35 rail |
| Marking level | Center marking |
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | gray |
| Material group | I |
| Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 |
| Fire load | 0.736 MJ |
| Weight | 33.2 g |
Environmental requirements
| Processing temperature | -35 … +85 °C |
|---|---|
| Continuous operating temperature | -60 … +105 °C |
Commercial data
| Product Group | 18 (X-COM-System) |
|---|---|
| PU (SPU) | 5 pcs |
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4044918630207 |
| Customs tariff number | 85369010000 |
