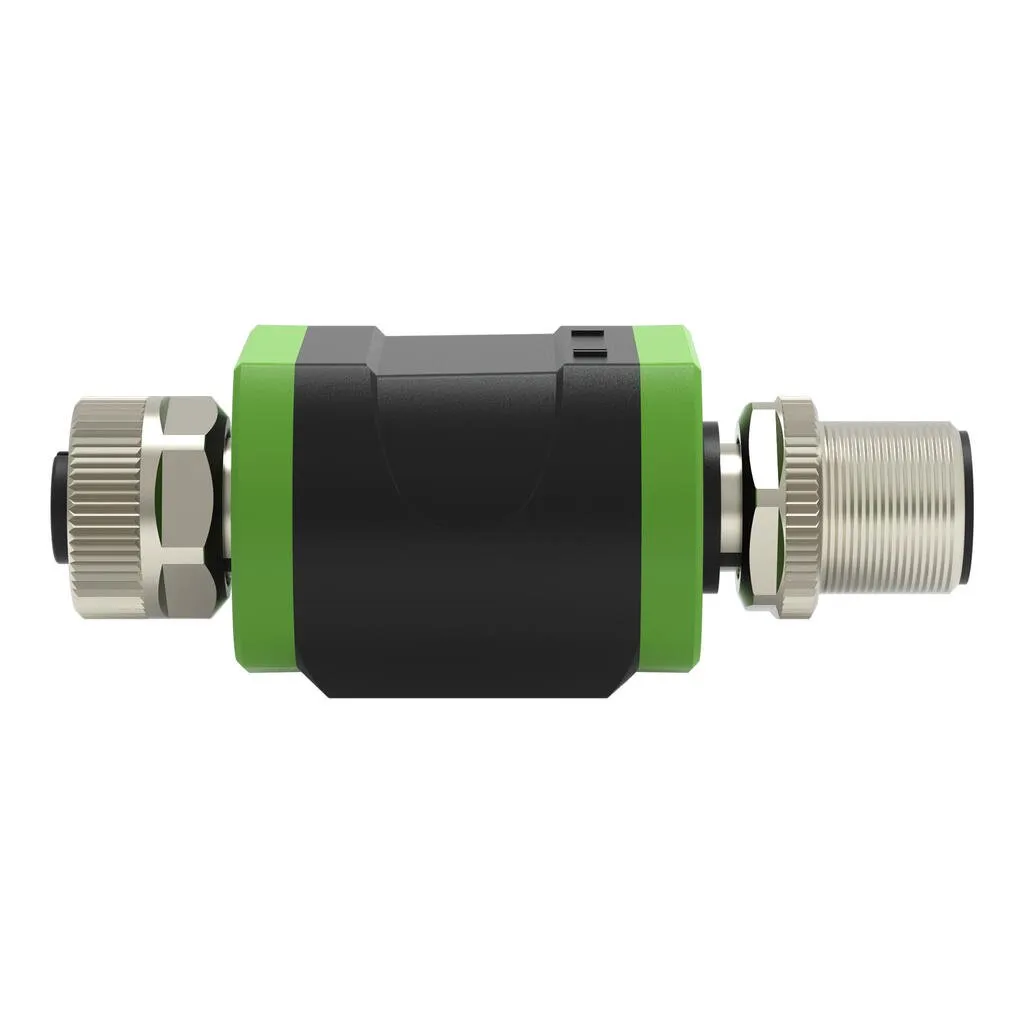

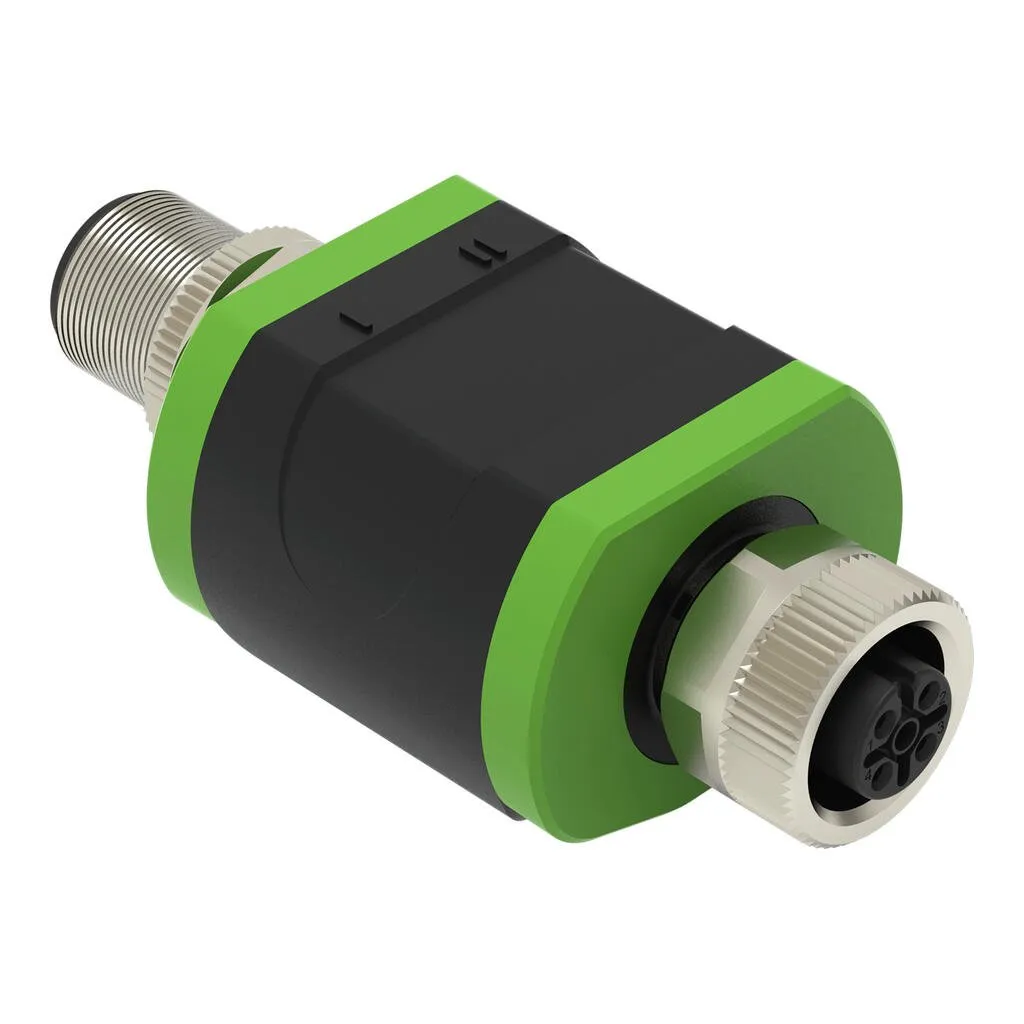

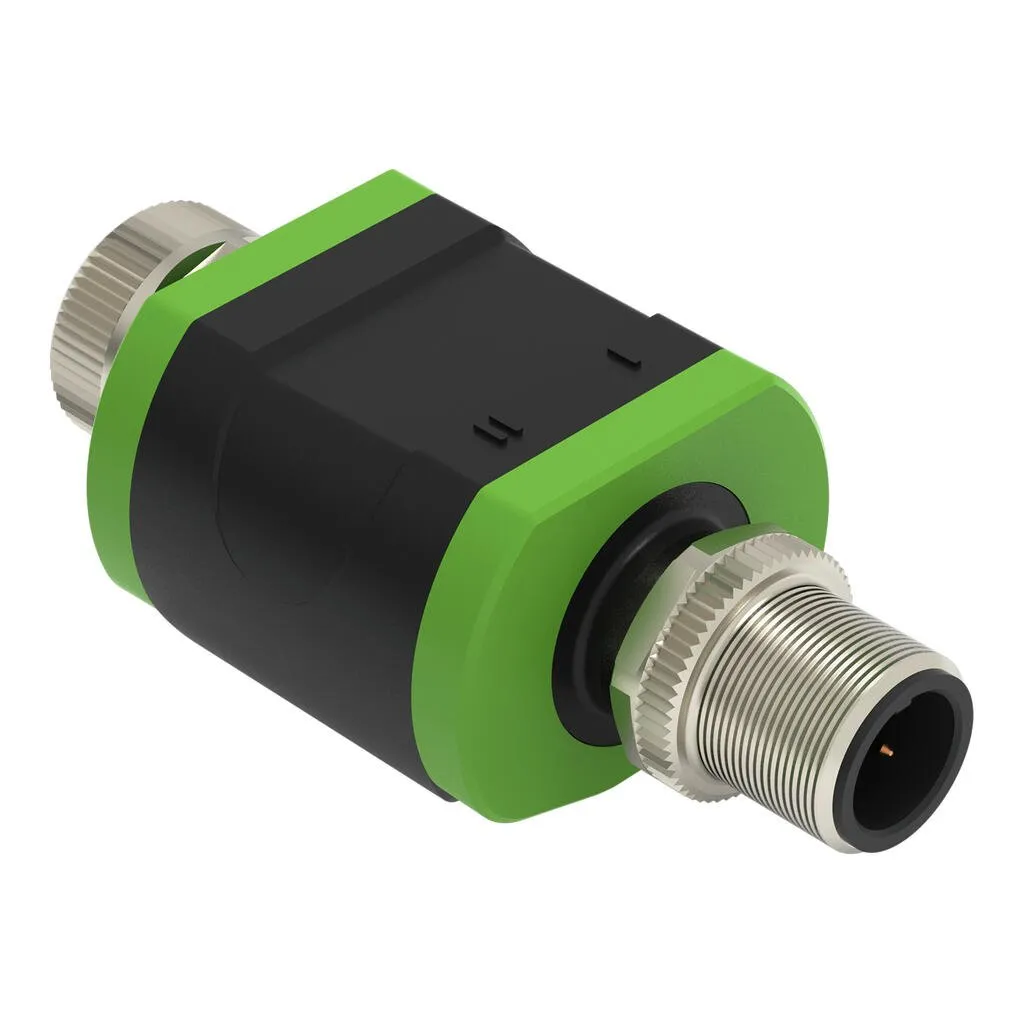

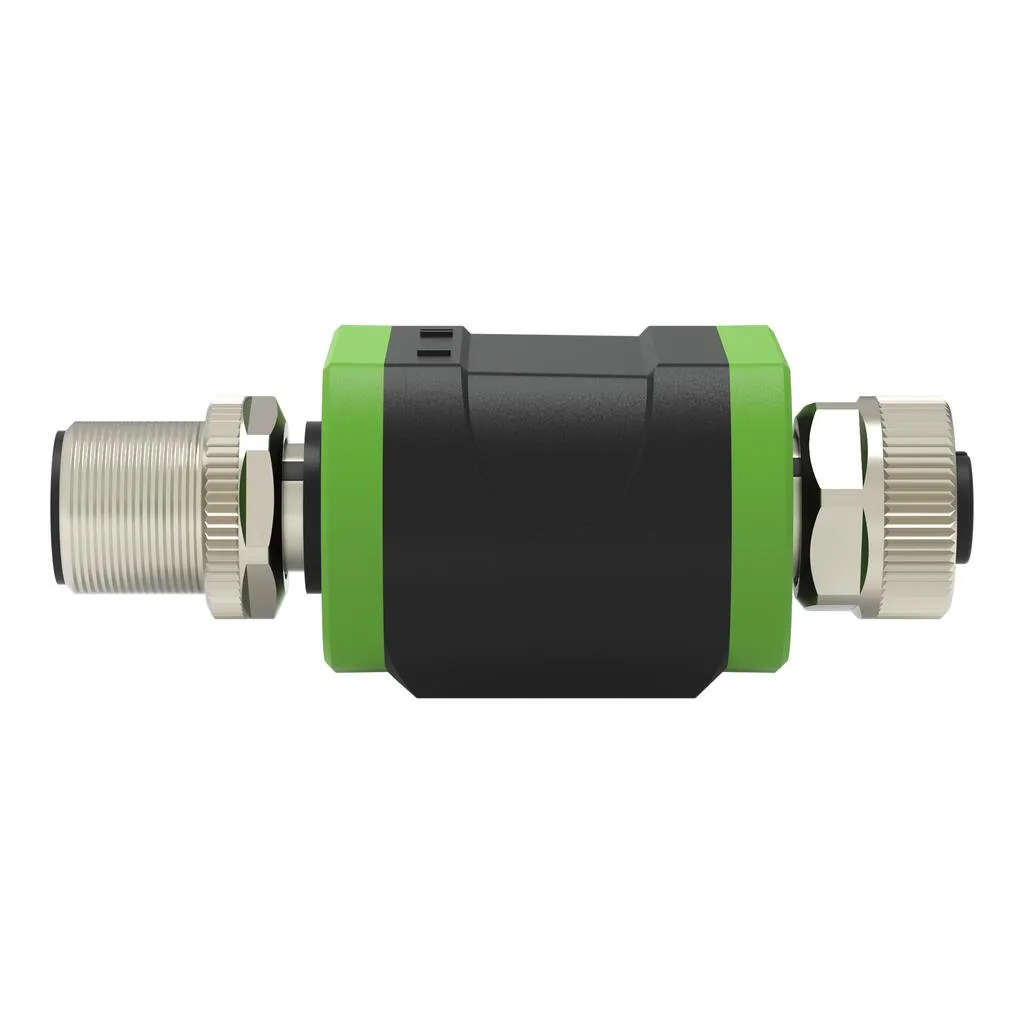

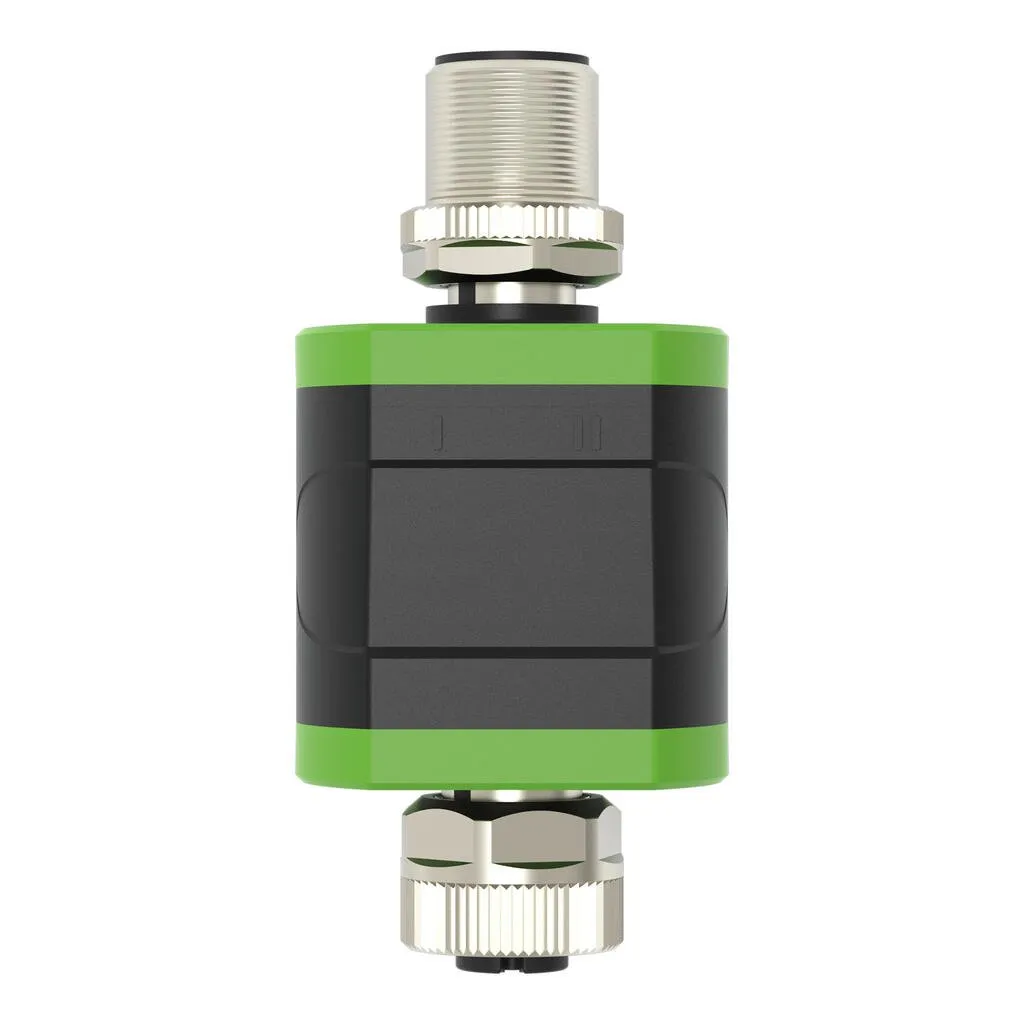

Wago 765-2702/200-000
Application area:Decentralized pre-processing and conversion of analog signals The device is used for signal acquisition of a connected sensor oranother device with an analog output (0 … 10 V). The de…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Application area:Decentralized pre-processing and conversion of analog signals The device is used for signal acquisition of a connected sensor oranother device with an analog output (0 … 10 V). The device has two analog voltage inputs.Use as an IO-Link device:The device has an IO-Link communication interface that requires an IO-Link-capable module (IO-Link master) for interoperation.The IO-Link interface allows direct access to the process and diagnostic data and enables setting of the device parameters during operation.
Specification
Notes
| Note | Length of connection cables: 20 m |
|---|
Technical data - General information
| Supply voltage | 24 VDC (18 … 30 V) |
|---|---|
| Current consumption (max.) | 380 mA |
| Accuracy (+25 °C) | 0.25 % of the upper-range value |
| Indicators | Analog input: 2 x yellow LED; Power: 1 x green LED |
Technical data - Input
| Number of analog inputs | 2 |
|---|---|
| Input signal (voltage) | 0 … 10 V |
| Current carrying capacity | Total inputs (max. 200 mA) |
| Internal resistance | 100 kΩ |
Technical data - IO-Link
| Communications | IO-Link Class A/B |
|---|---|
| Transmission modes | COM2 (38.4 kBaud) |
| IO-Link version | 1.1 |
| Process data | 2 x 16-bit IN (analog) |
| Cycle time | 4.6 ms (min.) |
| Parameterizable functions | Application-specific identifier, system identifier, location identifier, mean value filter |
Connection data

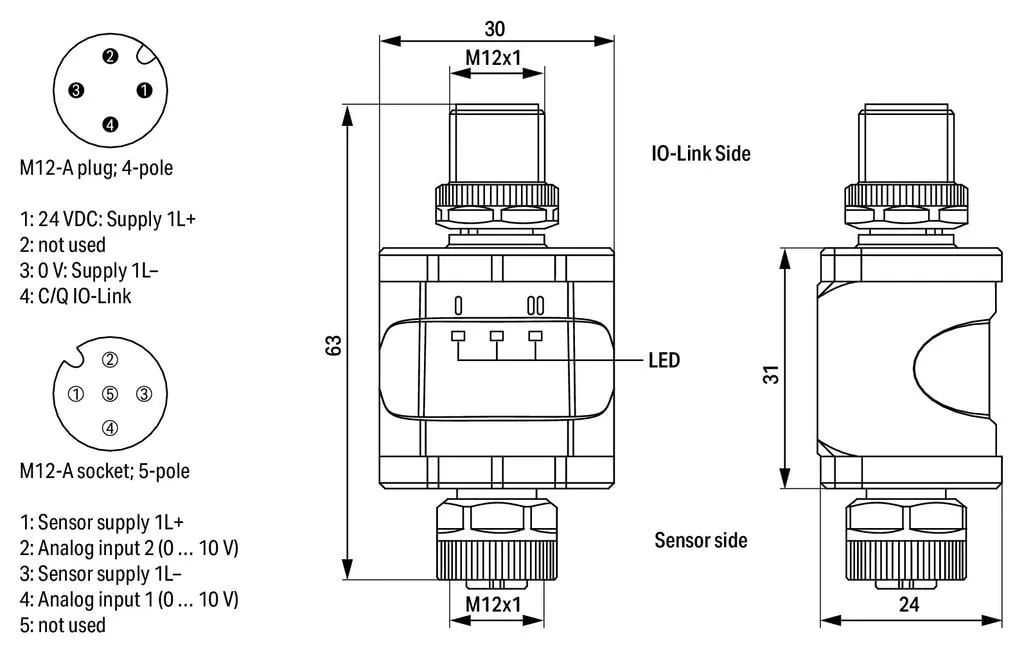

| Connection technology: I/O | 1 x M12-A socket; 5-pole (inputs, double assignment); 1 x M12-A plug; 4-pole (IO-Link) |
|---|
Physical data
| Width | 30 mm |
|---|---|
| Height | 63 mm |
| Depth | 24 mm |
Material data
| Housing material | PA |
|---|---|
| Weight | 92 g |
Environmental requirements
| Ambient temperature (operation) | -25 … +70 °C |
|---|---|
| Ambient temperature (storage) | -25 … +70 °C |
| Protection type | IP67 |
| Pollution degree | 2 |
| Operating altitude | 0 … 4000 m |
| Relative humidity | ≤ 90 % (at (31 °C); linearly falling to 50 % (40 °C)) |
Approvals/Tests
| Conformity marking | CE; UKCA |
|---|---|
| MTTF | 504 Jahre |
Commercial data
| PU (SPU) | 1 pcs |
|---|---|
| Packaging type | Box |
| Country of origin | DE |
| GTIN | 4066966322224 |
| Customs tariff number | 85176200000 |
Product Classification
| UNSPSC | 32151705 |
|---|---|
| ETIM 9.0 | EC001596 |
| ETIM 10.0 | EC001596 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
